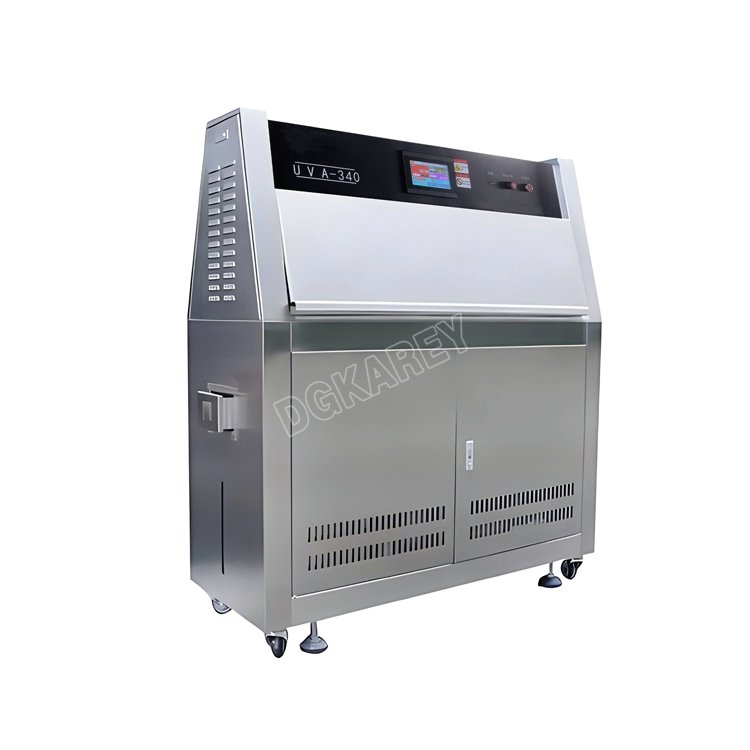

KR‑308 Fluorescent UV Accelerated Weathering Chamber

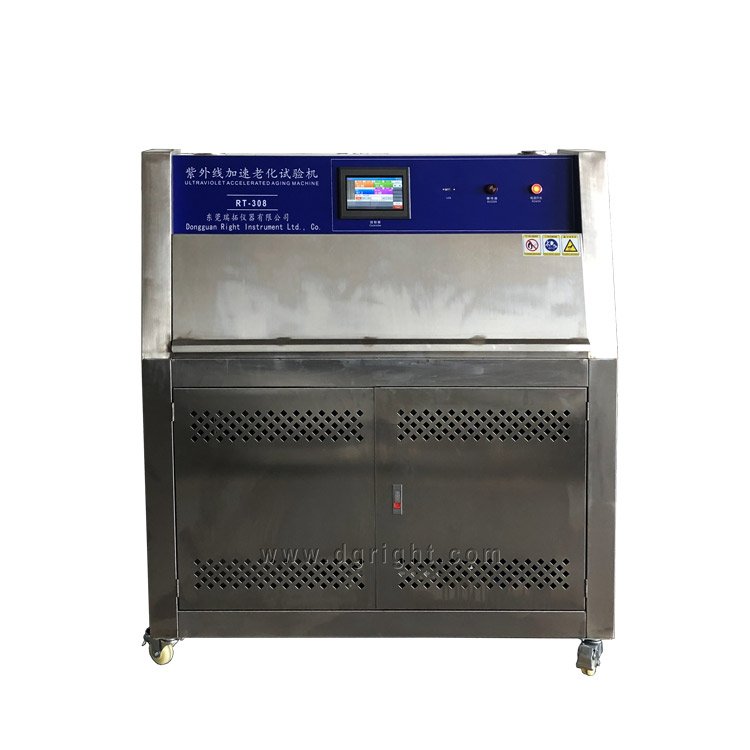

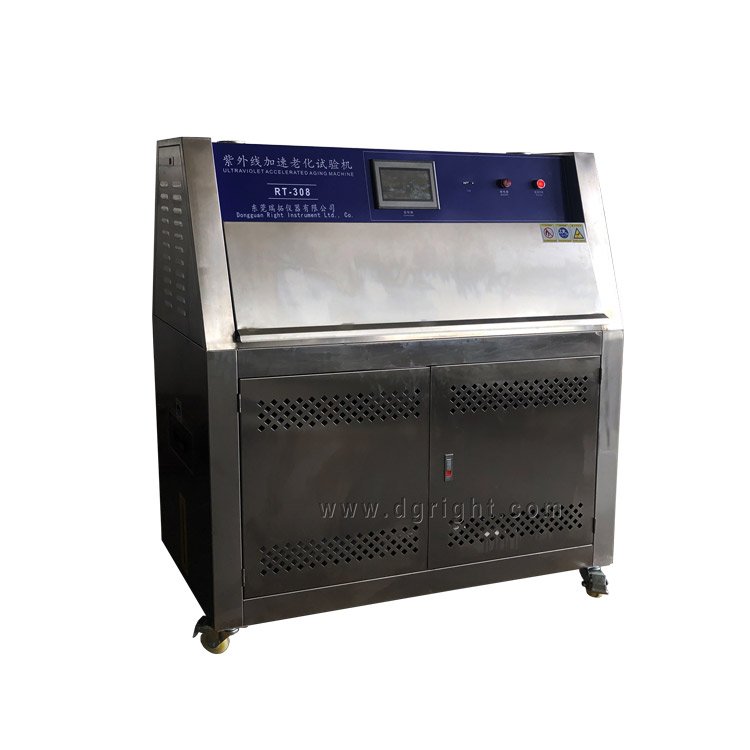

RT-308 ISO 20340 QUV Simulate Environmental Solar UV Accelerated Aging Testing Chamber

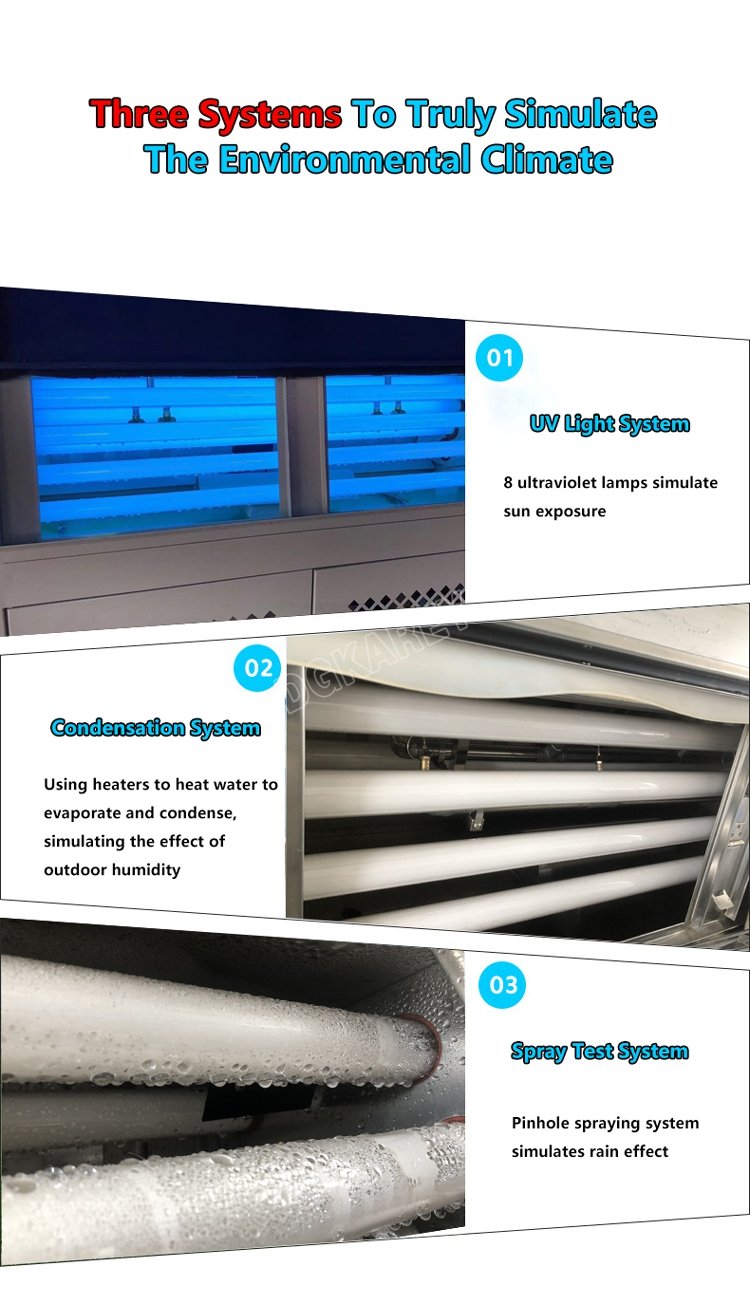

UV QUV test machine, the UV lamp can simulate the effect of the sun, condensation and water spray system can simulate the effect of rain and dew. the temperature can be controlled at the process of testing. A typical test cycle is usually testing at UV radiation of high temperature and the 100% humidity at dark; Typically used in paint and coatings, automotive, plastic products, wood products, glue, etc.
Product Details：
Product Overview

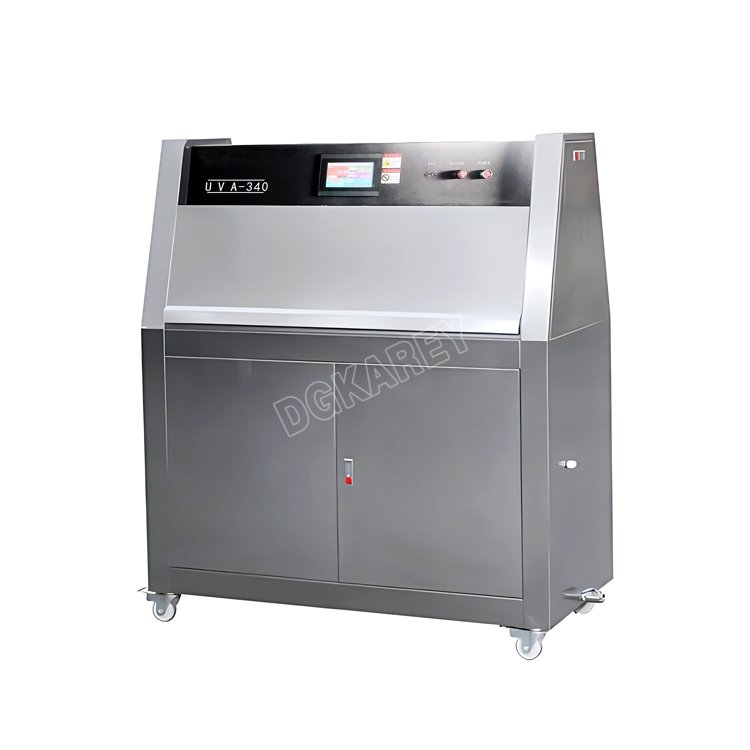

The KR‑308 fluorescent UV accelerated weathering chamber is laboratory‑grade environmental reliability equipment built for accelerated light‑ageing assessment. It utilises dedicated fluorescent UV lamps to reproduce the short‑wave ultraviolet component of natural sunlight. Combined with programmable condensation humidity and water‑spray cycles, it recreates real‑world outdoor stresses of sunshine, dew and rainfall.
Within several days or weeks of accelerated exposure, it reproduces typical long‑term outdoor degradation phenomena: colour fading, gloss loss, chalking, surface cracking, blistering, embrittlement and mechanical‑strength drop. Multiple interchangeable lamp types (UVA‑340, UVB‑313, UVA‑351) satisfy varied test‑norm requirements. Widely deployed for coatings, plastics, adhesives, wood‑based materials, automotive components and printing‑packaging goods in QC labs, material‑R‑D departments and accredited third‑party testing organisations.
Core Product Competitive Advantages
- Multi‑option interchangeable fluorescent UV‑lamp system

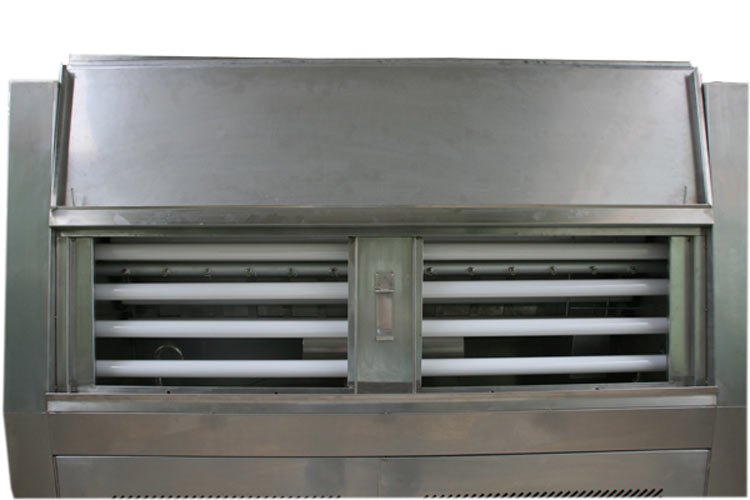

Accommodates three mainstream lamp variants. UVA‑340 closely mimics ground‑level solar ultraviolet spectrum for authentic outdoor‑correlation testing. UVB‑313 delivers high‑intensity short‑wave UV for fast‑track accelerated screening. UVA‑351 simulates UV radiation passing through window glass, ideal for indoor‑exposure material evaluation. Eight working lamps plus four spare lamps are supplied as standard; single lamp service‑life exceeds 1600 hours.
- Dual‑mode moisture simulation: condensation plus water‑spray
Heated‑tank condensation mechanism generates 100 %RH humid environment to mimic natural dew formation, reproducing long‑time wetting conditions of outdoor articles. Optional multi‑nozzle water‑spray assembly delivers intermittent cold‑water shower cycles, simulating rain‑induced thermal‑shock and surface erosion effects. Two moisture‑modes can be freely combined within segmented test‑programs.
- Precision closed‑loop temperature & optional irradiance control
Working‑temperature ranges 50 ℃‑75 ℃, with stable temperature holding during UV‑illumination and condensation phases. Optional irradiance‑monitoring sensor performs real‑time light‑intensity feedback, compensating for lamp‑ageing drift and securing repeatable test‑results across different batches.
- Heavy‑duty anti‑corrosion cabinet construction
Whole working cabinet is fabricated from SUS304 stainless‑steel plate. Internal air‑circulation duct together with high‑performance axial‑flow fan optimises temperature uniformity inside test cavity. Auto water‑replenishment avoids heater dry‑burn risk; U‑shaped drain‑structure handles waste‑water discharge conveniently.
- User‑friendly operation & large‑capacity sample‑holding layout

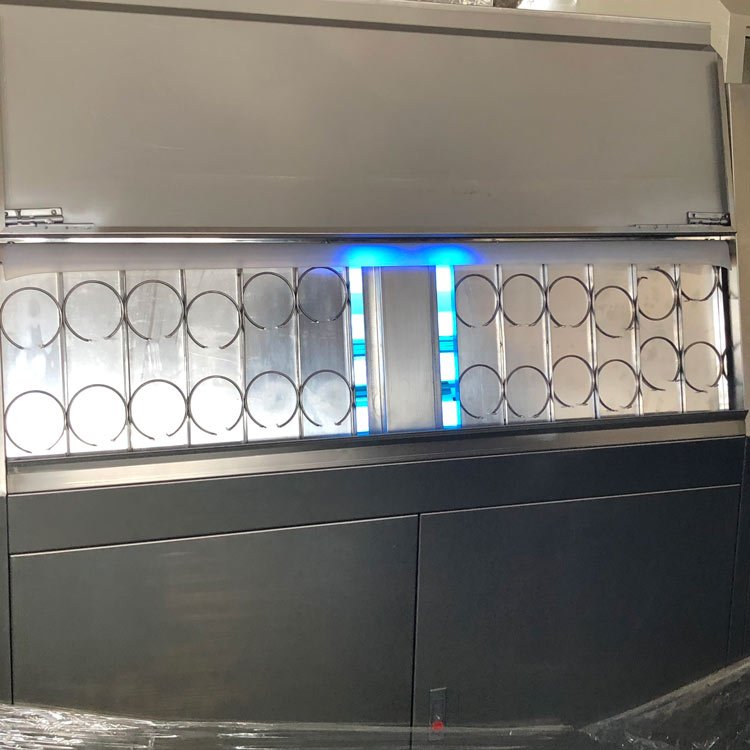

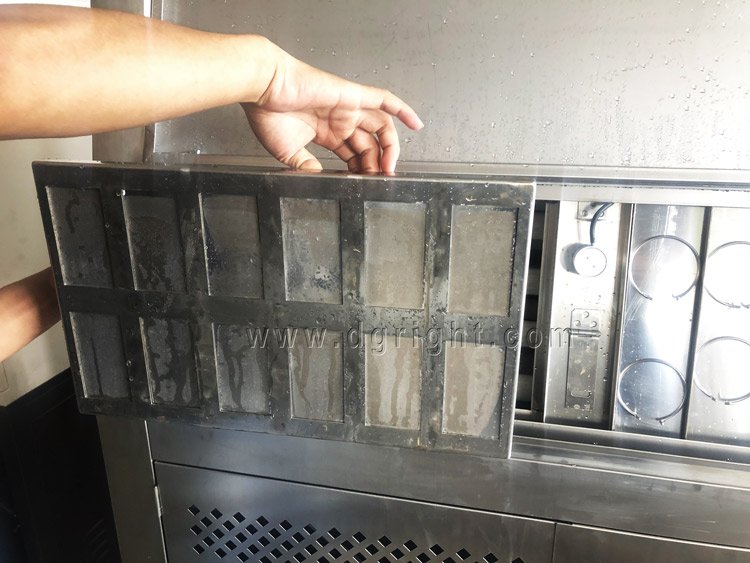

Stainless‑steel / aluminium‑alloy sample holders accommodate up to 48‑50 pieces of standard 75 × 150 mm specimens. Double‑flip top cover enables easy sample‑loading and routine internal inspection. Mobile PU castors support convenient workshop relocation. Touch‑screen controller supports multi‑segment cyclic‑program editing for fully‑unattended test‑running.
Complete Technical Parameter Table
| Parameter Item | KR‑308 Standard Specification |
|---|---|
| UV‑lamp Configuration | 8 working lamps + 4 spare lamps (UVA‑340 / UVB‑313 / UVA‑351 selectable),40 W per lamp |
| Lamp Nominal Service‑Life | ≥1600 hours |
| Working Temperature Range | 50 ℃ ~ 75 ℃ |
| Standard Specimen Size | 75 × 150 mm |
| Max Sample Quantity | 48‑50 pcs |
| Daily Water Consumption | Approx. 8 L (distilled water recommended) |
| Optional Accessories | Irradiance radiometer, test‑data recorder |
| Overall Dimension(W×D×H) | 137 × 53 × 136 cm |
| Complete‑Machine Net‑Weight | 136 KG |
| Input Power Supply | Single‑phase AC 230 V 50 Hz / 120 V 60 Hz; Max 1800 W |
Compliance Standards: ASTM G154, ISO 20340, ISO 4892‑3, GB/T 16422.3, JIS, AATCC, DIN, SAE
Standard Complete Test Operating Workflow
- Pre‑Test Preparation
Place unit on level well‑ventilated ground. Check lamp condition, water‑supply pipeline, drain‑system and safety‑alarm functions. Prepare distilled water for tank filling. Mount specimens onto sample‑holders; keep test‑surface parallel to UV‑lamp plane. Close double‑flip cabinet cover and power‑on main‑unit.
- Program Parameter Configuration

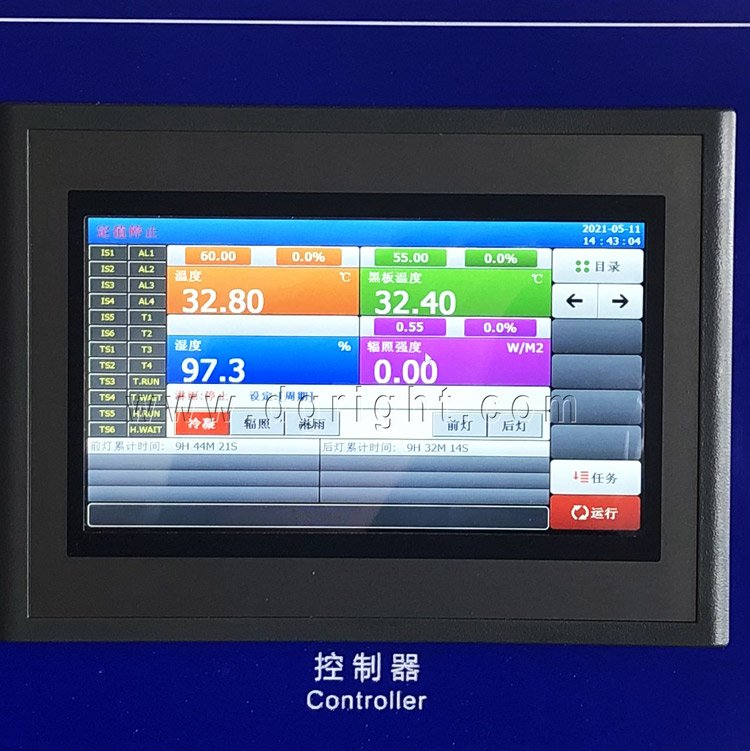

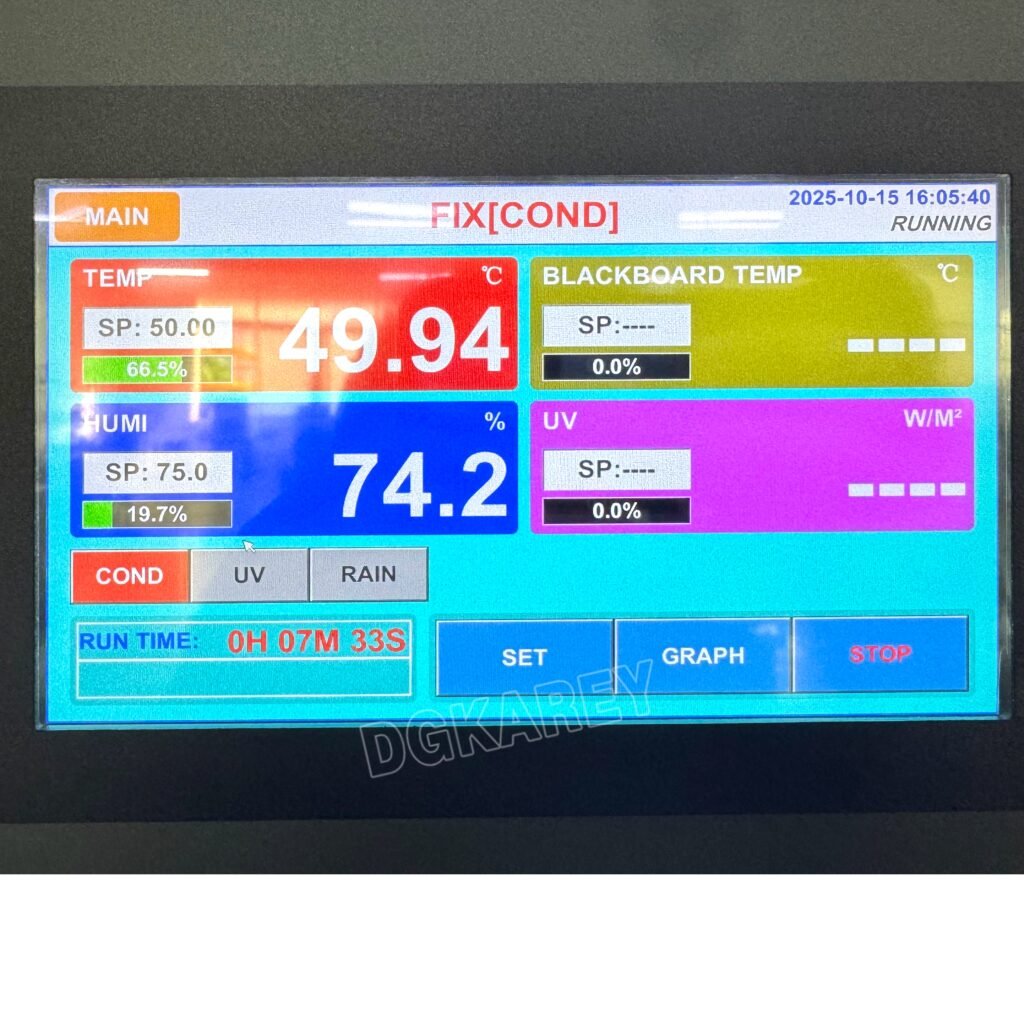

Access touch‑screen interface. Edit multi‑segment test‑profile: set UV‑exposure duration, condensation period, water‑spray timing and target temperature. Activate irradiance‑monitoring function if radiometer accessory is fitted. Confirm water‑auto‑replenishment system operates normally.
- Execute UV Accelerated‑Weathering Test
Start saved test‑program. Equipment automatically cycles UV‑irradiation, high‑humidity condensation and optional water‑spray phases. System keeps tracking running‑parameters; alarm triggers upon abnormal status. Machine auto‑stops once total preset runtime is completed.
- Specimen Retrieval & Performance Assessment
Wait for inner‑cavity temperature to drop close to ambient. Open top cover and remove test‑samples. Inspect for fading, gloss‑reduction, chalking, cracking, blistering and embrittlement. Record observations for QC‑reports. Multiple replicate‑specimen testing is suggested for statistically‑reliable evaluation.
- Post‑Test Tidying
Drain waste‑water, clean cavity interior and sample‑holders of material residues. Check lamp surface for dust contamination. Reset program‑parameters. Shut‑down power for long‑term idle storage. Periodically inspect lamp ageing status and water‑system filter elements.
Wide Industrial Application Scenarios
Coatings, Paint & Adhesive Manufacturers
Accelerated weather‑resistance screening for paint films, powder‑coatings and glue formulations; compare anti‑ageing performance of different coating recipes.
Plastic‑Polymer & Automotive‑Component Factories
UV‑durability QC‑validation for exterior plastic‑parts, decorative trim and automotive‑exterior accessories.
Printing‑Packaging & Wood‑Processing Enterprises
Light‑fastness evaluation for printed surfaces, surface‑treated wood and decorative composite materials.
Material‑R‑D & Research Institutes
Study UV‑induced degradation mechanism of organic‑materials; optimise anti‑UV additive dosage and processing‑craft‑parameters.
Third‑Party Accredited‑Material‑Testing‑Organizations
Conduct fluorescent‑UV accelerated‑weathering assessment and generate formal inspection‑documents for product‑certification‑audits.
Standard Factory‑Full‑Delivery Kit
- KR‑308 fluorescent UV accelerated weathering chamber main stainless‑steel host‑unit
- 8 pcs working UV‑lamps + 4 pcs spare UV‑lamps (customer selects lamp‑type)
- Stainless‑steel specimen‑holding rack assembly
- Touch‑screen multi‑segment program‑controller
- Built‑in condensation‑humidity system, water‑spray nozzle assembly
- Power‑supply connecting‑cable
- Multilingual printed‑operation‑manual complying with ASTM‑ISO‑GB‑JIS‑DIN‑relevant‑test‑specifications
- Factory‑issued performance‑inspection‑certificate
Optional spare‑parts & custom‑options: irradiance radiometer module, test‑data‑recorder, extra replacement UV‑lamps, overseas‑market custom‑voltage adaptation.
Global Distributor & After‑Sales‑Support
We provide remote‑one‑on‑one operational guidance covering lamp‑replacement, multi‑segment‑program‑editing, water‑system maintenance and routine equipment‑calibration tips. Spare‑parts stock includes UV‑lamps, sealing‑gaskets and water‑circuit wearing‑components. Bulk‑order customers can apply for custom‑power‑supply‑voltage variants for overseas‑market deployment. Regional‑exclusive‑agent privileges contain priority‑production‑scheduling, OEM private‑branding‑services and complete‑set high‑definition product‑marketing‑image‑resources.
Product‑Banner‑Marketing‑Slogan
KR‑308 Fluorescent UV Accelerated Weathering Chamber | ASTM‑G154‑ISO20340‑Compliant UVA‑UVB‑UVA351‑Lamp‑Coating‑Plastic‑Auto‑Part‑UV‑Ageing‑QC‑Testing‑Instrument
Core‑Feature‑Labels‑For‑Product‑Images
ASTM‑G154‑ISO20340‑ISO4892‑3‑Compliant,Fluorescent‑UV‑Accelerated‑Weathering‑Chamber,UVA340‑UVB313‑UVA351‑Interchangeable‑Lamps,8+4‑Lamp‑Configuration,Condensation‑Humidity‑Plus‑Water‑Spray‑Simulation,50‑75℃‑Temp‑Control,Optional‑Irradiance‑Radiometer,SUS304‑Full‑Stainless‑Steel‑Cabinet,Multi‑Segment‑Touch‑Screen‑Program‑Control,Auto‑Water‑Replenishment‑Anti‑Dry‑Burn,48‑50‑Pieces‑Large‑Sample‑Capacity,Coating‑Plastic‑Adhesive‑Automotive‑Wood‑Material‑UV‑Light‑Degradation‑Weather‑Resistance‑Performance‑Evaluation
Safety‑Operation‑Reminder
Avoid direct eye‑and‑skin exposure to ultraviolet radiation while chamber lid is open with lamps powered‑on. Keep lab ventilation adequate. Reliable equipment‑grounding must be completed before power‑on. Use distilled water for water‑tank supply. Replace UV‑lamps strictly following official maintenance‑procedure. Periodically inspect drain‑pipeline for clogging risk.
