Product Overview

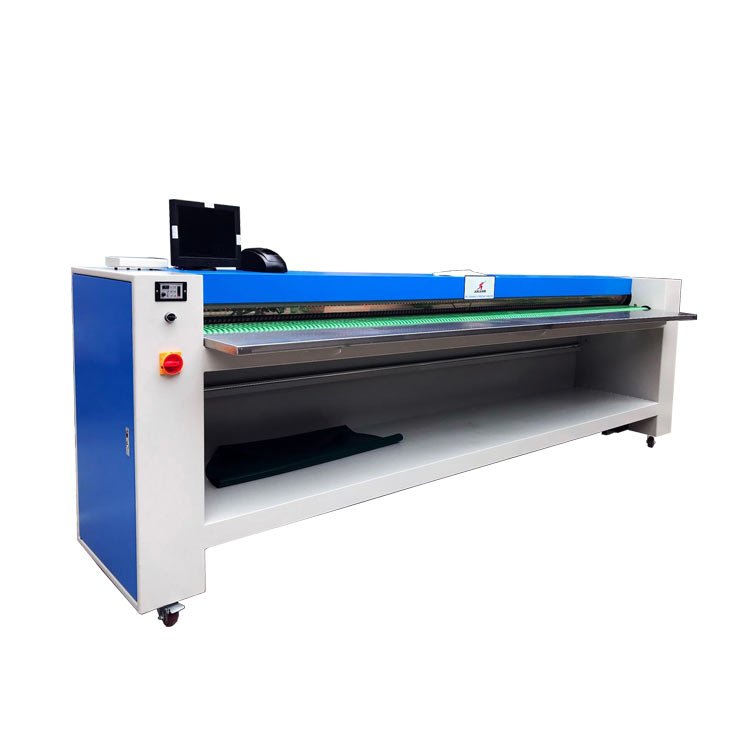

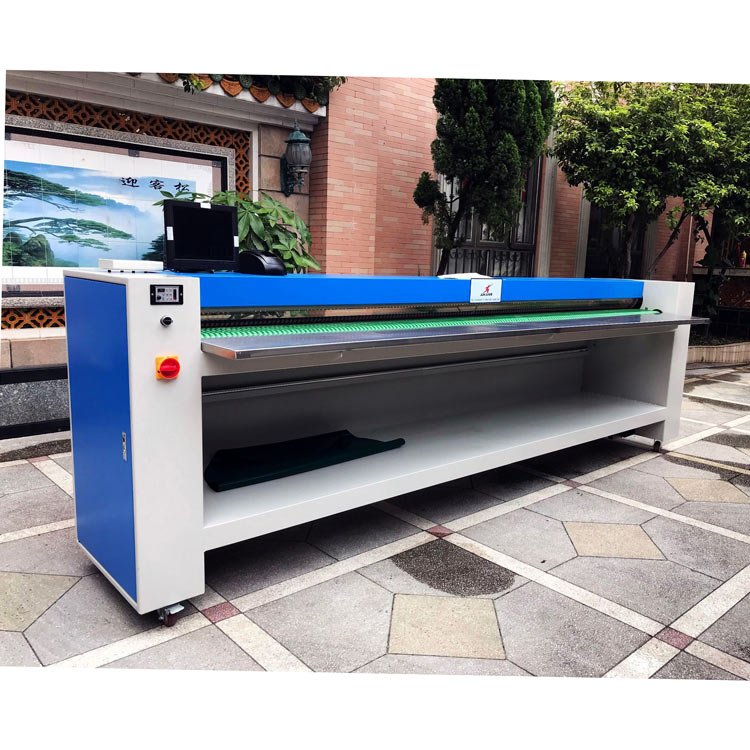

The KR‑517 infrared vertical leather area measuring machine is purpose‑built production‑grade equipment for shoe‑making and leather‑goods factories. It adopts high‑frequency infrared photoelectric scanning technology to compute the actual surface area of raw hides, split leather, wet‑blue leather and fur materials as they pass through the conveying platform.

Equipped with industrial‑grade control hardware and high‑brightness dual‑LCD display, this vertical‑format machine supports stepless conveyor‑speed adjustment, automatic hot‑stamp marking, real‑time data statistics and ticket printing. It delivers fast throughput and stable measuring precision for daily leather‑stock incoming inspection, warehouse stocktaking and cutting‑room cost‑calculation workflows in domestic and overseas leather‑processing plants.

Core Product Competitive Advantages

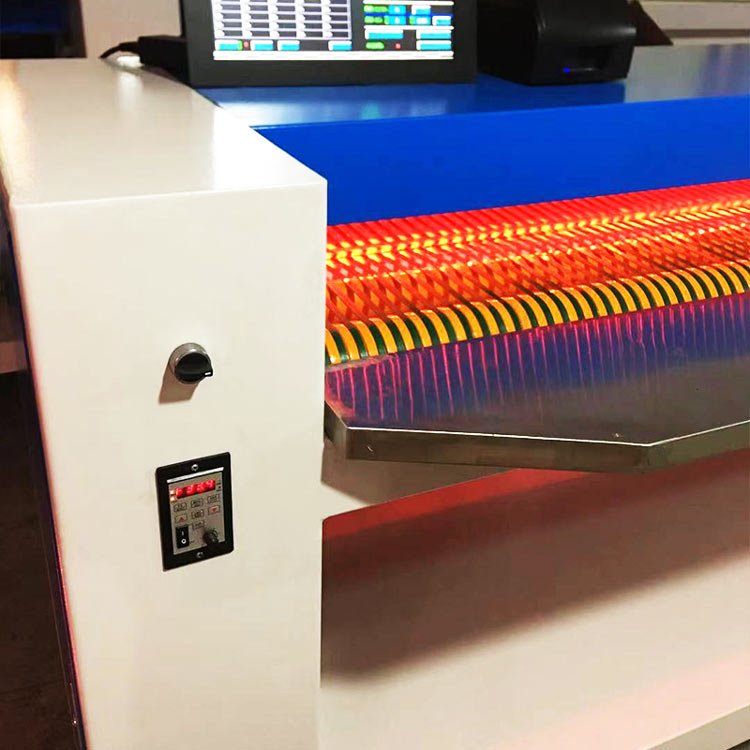

1. Anti‑interference infrared scanning sensor module Imported fully‑sealed infrared transmitting‑receiving components are deployed for area acquisition. The scanning system works reliably regardless of ambient lighting changes, avoiding measurement deviation caused by workshop light fluctuation. It adapts to diverse leather varieties including full‑grain leather, second‑layer leather and wet‑blue hides.

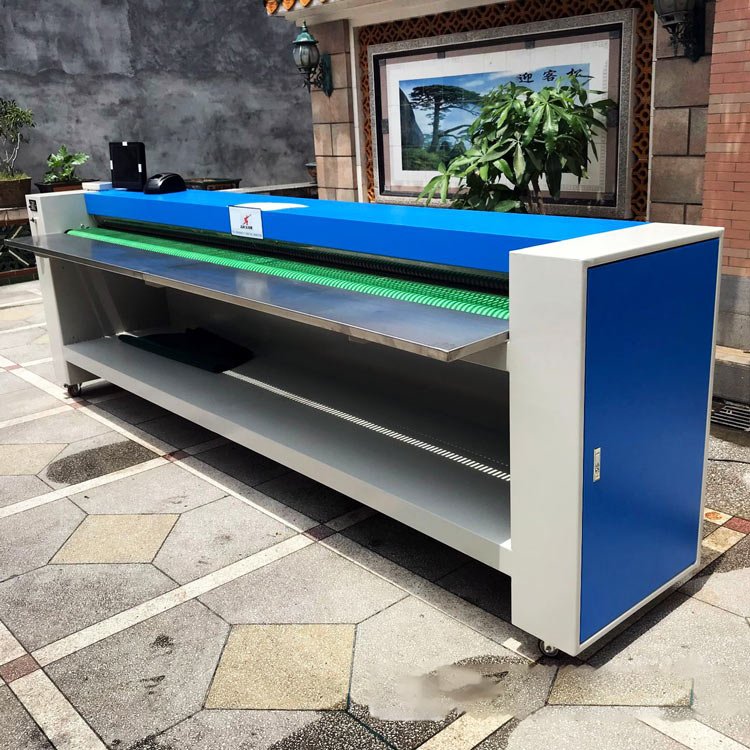

2. Robust heavy‑duty mechanical frame & low‑noise drive system Main frame is constructed from bent and stamped steel plates for structural rigidity. Integrated motor drive removes regular belt‑replacement and oil‑maintenance work. Inverter‑based stepless speed regulation allows users to match conveying velocity according to leather condition.

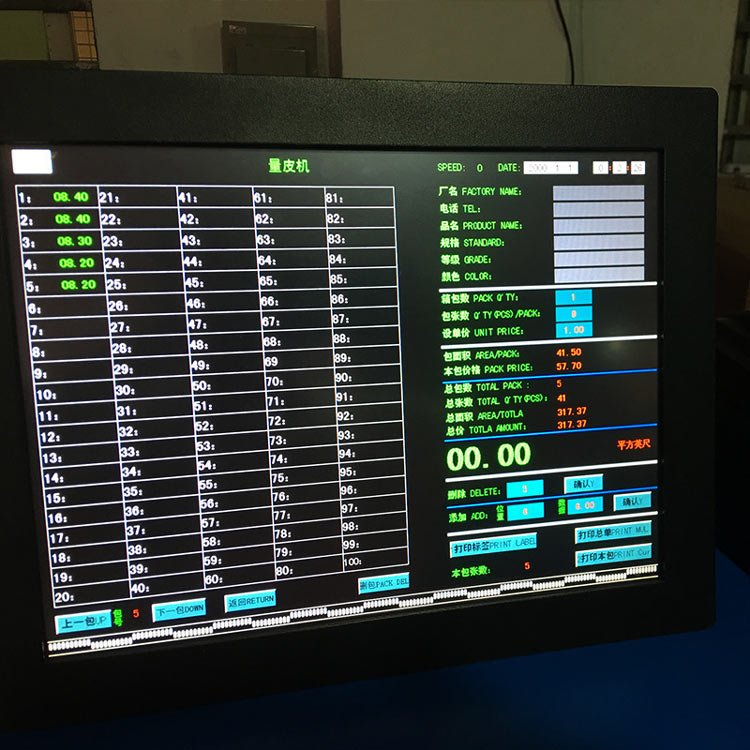

3. Industrial dual‑screen human‑machine interaction & comprehensive data functions Dual‑display setup combines 12‑inch industrial colour LCD plus auxiliary digital‑tube panel. It features automatic power‑failure data retention, built‑in calendar clock, zero‑point reset, zoom‑correction and coefficient auto‑calibration. Operators can custom‑edit factory name, contact information, leather grade and material designation for printed reports.
4. Flexible marking & multi‑format thermal printing output Configurable hot‑stamp marking position supports automatic tracking during leather transportation. High‑speed thermal printer generates bilingual Chinese‑English tickets. Multiple output modes are available: partial‑batch print, full‑batch print and individual‑order sheet, with optional decimal or quarter‑unit area rounding.
5. Intelligent self‑diagnosis for simplified on‑site maintenance Built‑in static self‑test and dynamic real‑time monitoring routines detect hardware anomalies. System fault prompts lower troubleshooting difficulty, keeping downtime to minimum for mass‑production environments. Multiple effective working‑width options from 1800 mm up to 3200 mm can be selected for different production‑line layouts.

Complete Technical Parameter Table

Standard Complete Test Operating Workflow

1. Pre‑Test Preparation Place the unit on level factory floor, check mechanical conveying parts and sensor surface for dirt. Power‑on, run system self‑diagnosis, finish standard‑plate calibration. Configure print‑template information including factory details, grade‑coding and rounding‑mode according to production requirements. Set conveyor running speed.

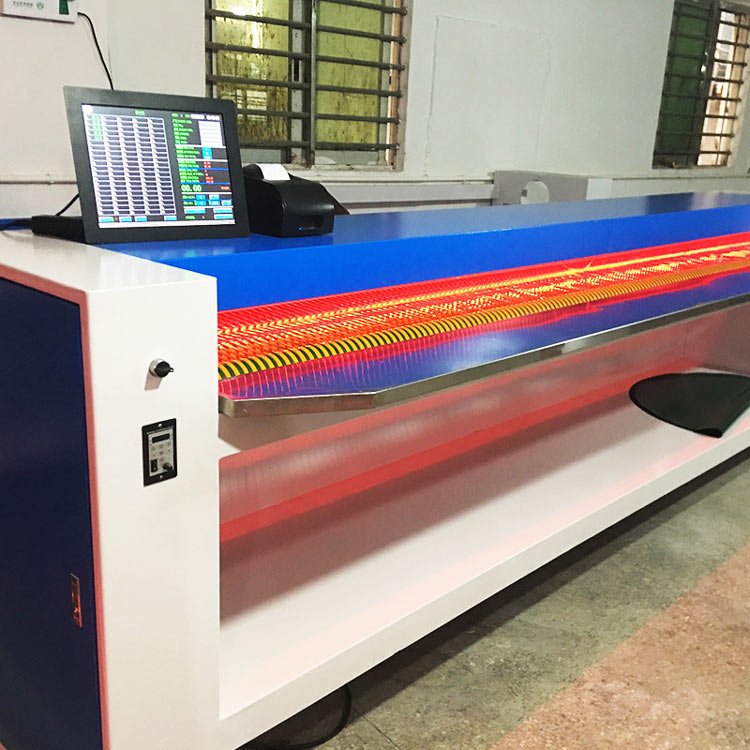

2. Leather Feeding & Scanning Measurement Feed leather specimens flat onto the input conveyor. Infrared scanning sensors detect leather outline while material travels through the machine. The control system computes real‑time area value and stores data record automatically.
3. Marking & Data Output (Optional) If hot‑stamp marking is enabled, machine executes automatic position‑tracking stamping on leather surface. After single‑piece measurement completes, users may trigger immediate ticket‑printing, or accumulate multiple‑piece data for full‑batch summary‑print.
4. Batch‑Data Review & Export Browse stored batch records on‑screen. Edit or delete abnormal entries as‑needed. Complete statistical summary for leather‑stock counting or cost‑accounting purposes.
5. Post‑Run Tidying Clean dust and leather scraps off sensor window and conveyor surface. Back‑up important batch‑data. Shut‑down equipment after finishing production shift. Carry‑out regular calibration check to sustain measuring accuracy.

Wide Industrial Application Scenarios

Shoe‑making & Leather‑Goods Manufacturing Enterprises

Fast area‑measurement for incoming raw‑leather batches; warehouse leather‑inventory statistics; cutting‑department material‑cost calculation for footwear, bags and leather‑accessory production.

Leather‑tanneries & Hide‑processing Plants

Area‑grading inspection for finished leather, split‑leather, wet‑blue hides and fur products before goods‑delivery.

Leather‑Trading Companies

Rapid and objective area verification for leather spot transactions, reducing manual‑measuring disputes.

Third‑Party Leather‑Material‑Testing‑Organizations

Carry‑out leather‑area measurement and issue printed test‑records for material‑appraisal‑tasks.

Standard Factory‑Full‑Delivery Kit

1. KR‑517 infrared vertical leather‑area‑measuring‑machine main host‑unit (selected working‑width specification)
2. Industrial dual‑screen display assembly, integrated drive‑motor and conveyor‑system
3. Infrared scanning sensor assembly
4. High‑speed thermal printer unit
5. Standard calibration reference‑plate
6. Power‑supply connecting‑cable
7. Multilingual printed‑operation‑manual
8. Factory‑issued performance‑inspection‑certificate

Optional spare‑parts & custom‑options: extra hot‑stamp marking module, different working‑width variant, custom‑voltage power‑supply‑adaptation for overseas‑markets.

Global Distributor & After‑Sales‑Support

We provide remote‑one‑on‑one operational guidance covering equipment‑calibration, parameter‑editing, print‑template‑setup and daily maintenance. Spare‑parts stock includes scanning‑sensor components, printer‑consumables and drive‑accessories. Bulk‑order customers can apply for custom‑power‑supply‑voltage variants for overseas‑market deployment. Regional‑exclusive‑agent privileges contain priority‑production‑scheduling, OEM private‑branding‑services and complete‑set high‑definition product‑marketing‑image‑resources.

Product‑Banner‑Marketing‑Slogan

KR‑517 Infrared Vertical Leather Area Measuring Machine | Industrial Infrared‑Scan Hide‑Area‑Calculation For Shoe‑&‑Leather‑Factory QC‑Inventory‑Cost‑Accounting‑Instrument

Core‑Feature‑Labels‑For‑Product‑Images

Infrared‑Vertical‑Leather‑Area‑Measuring‑Machine,Stepless‑Conveyor‑Speed‑Adjust,Anti‑Ambient‑Light‑Infrared‑Sensor,±1%‑Cumulative‑Measuring‑Accuracy,Power‑Off‑Data‑Retention,Industrial‑Dual‑LCD‑Display,Auto‑Hot‑Stamp‑Marking,Thermal‑Bilingual‑Printing‑Ticket,Stepless‑Calibration,Multi‑Unit‑Area‑Calculation,Raw‑Hide‑Split‑Leather‑Wet‑Blue‑Leather‑Fur‑Area‑Measurement‑For‑Shoe‑And‑Leather‑Industry

Safety‑Operation‑Reminder

Keep hands away from running‑conveyor during equipment operation. Keep infrared‑sensor windows free from leather‑dust accumulation. Perform periodic calibration with standard‑plate to guarantee measurement precision. Reliable equipment‑grounding must be completed before power‑on.
