Product Introduction

Core Product Advantages

1. Mirror Polished Alloy Roller Structure

   Rollers are forged from vanadium-titanium chilled cast iron with quenching and hard chrome mirror plating, surface hardness reaching HRC50~60. Hollow roller bodies realize balanced heat conduction, no local overheating during silicone mixing. Ultra-smooth mirror surface prevents sticky silicone residue, easy to wipe and clean after each batch.



   2.Stainless Steel Integrated Body, Anti-Contamination Design

   Whole machine frame, material receiving tray and safety baffle adopt SUS304 stainless steel one-piece stamping molding. No paint peeling or rust issues after long-term contact with silicone oil and color pastes, completely eliminating color cross-mixing troubles for multi-formula silicone experiments.



   3.Manual Precision Roller Gap Adjustment

   Dual large handwheel gap regulators installed on both sides support 0.6–10mm continuous thickness adjustment. Operators can lock fixed sheet thickness rapidly for repeat sample preparation, guarantee uniform dimension of silicone test pieces for subsequent physical testing.



   4.Full-Range Multi-Safety Interlock Protection

   Equipped front anti-pinch safety grid plus top red emergency stop button. Once operators touch the protective barrier during operation, rollers halt instantly and reverse slightly to avoid clamping accidents, fully meeting laboratory safety operation standards.



   5.Low-Noise Integrated Drive & Automatic Lubrication

   Adopts hardened gear reducer and imported silent bearing assembly with low vibration operation. Built-in centralized automatic oil supply system continuously lubricates transmission parts during running, reducing manual maintenance frequency and extending service life of core drive components.



   6.Ultra-Compact Single-Phase Desktop Layout

   Lightweight all-in-one design only weighs 65kg, compatible with standard lab workbenches. Single-phase AC220V power input requires no industrial three-phase wiring, convenient for small-scale silicone prototype development and on-site formula trial tests.

Standard Operating Procedure

1. Pre-Cleaning: Wipe roller surfaces and stainless receiving tray to remove residual silicone from previous batches.
2. Gap Setting: Rotate dual handwheels to adjust target silicone sheet thickness according test requirements.
3. Raw Material Feeding: Weigh silicone base, color masterbatch and curing agent, feed slowly into roller nip.
4. Circulating Mixing: Repeatedly fold and feed silicone strips back between rollers to achieve uniform pigment dispersion.
5. Sample Sheeting: After full homogenization, pull continuous flat silicone sheet for cutting standard test specimens.
6. Shutdown Maintenance: Cut off power, clean rollers and tray completely to prevent pigment residue accumulation.

Wide Applicable Silicone Materials & Scenarios

Food & Medical Grade Silicone

Industrial Functional Silicone

Color Masterbatch R&D

Standard Delivery Accessories

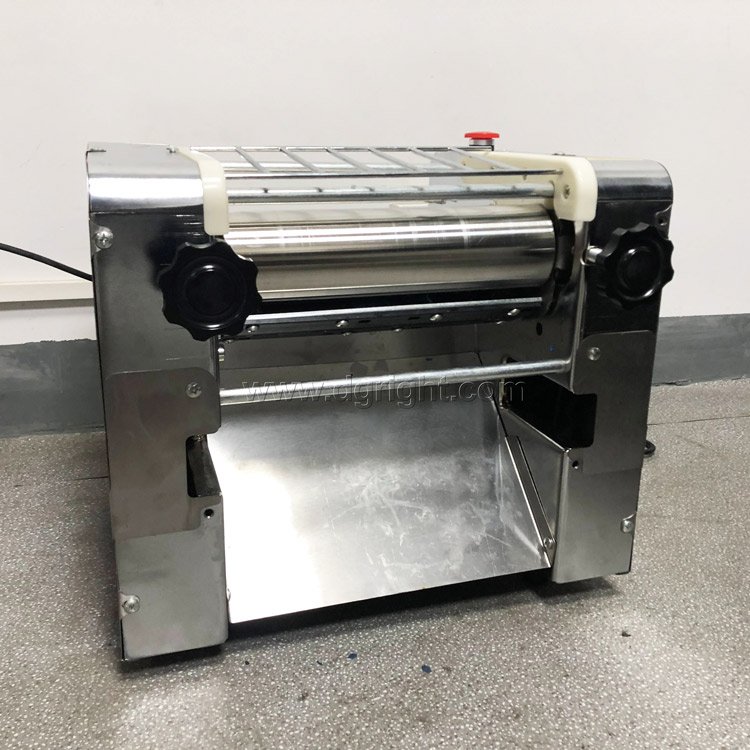

1. KR-110G stainless steel silicone two roll mill main body
2. Pair of mirror alloy mixing rollers
3. Dual handwheel gap adjustment assemblies

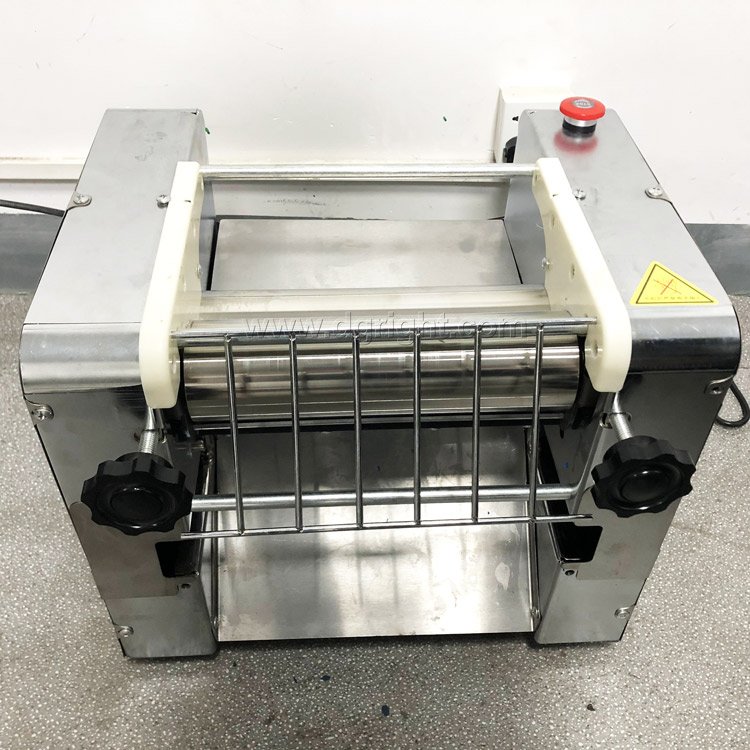

4. Front anti-pinch stainless safety grid
5. SUS304 integrated material receiving tray
6. Full set operation manual with silicone mixing process guide
7. Automatic lubrication oil supply assembly
