Product Overview

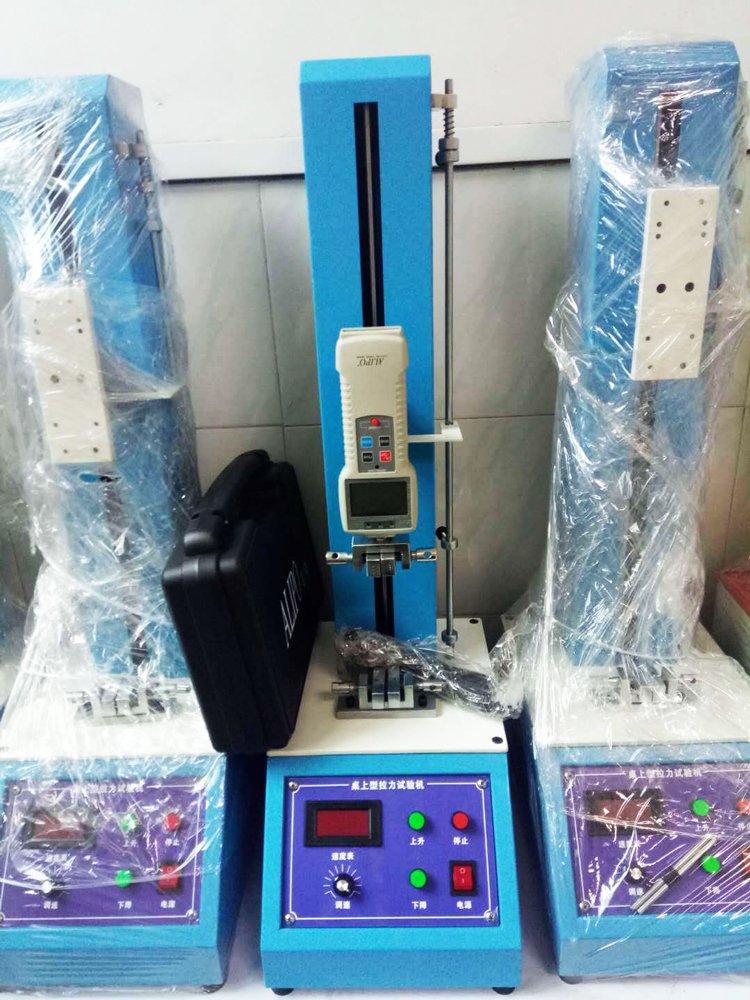

The KR‑201D compact bench‑top electric pull‑strength tester is a lightweight low‑force testing solution built for production‑floor quality‑control and routine lab assessments. This single‑column electric‑drive unit handles tensile, peel and tear evaluations for thin‑gauge metallic specimens plus diverse non‑metallic samples under 500 N maximum load.

Compact enough for direct desktop placement, the unit features intuitive front‑panel controls and a digital push‑pull force gauge. Compliant with GB/T 16491‑1996 standards, it serves QC workshops, component manufacturers, educational laboratories and third‑party inspection departments for fast, repeatable mechanical‑property screening.

Core Product Competitive Advantages

1. Sturdy Compact Single‑Column Desktop Construction Robust hollow cast‑aluminum base delivers stable support throughout loading cycles. Vertical single‑arm layout saves valuable bench‑top real‑estate. Electric‑driven cross‑head movement eliminates manual hand‑cranking fatigue during batch‑sample testing.
2. Intuitive Digital Force Read‑Out Digital push‑pull dynamometer clearly displays real‑time tension and compression readings. Two measurement‑unit options (N / kgf) can be toggled with one click. Peak‑value capture function retains maximum force readings once a specimen fractures, making post‑test data recording straightforward.
3. Flexible Adjustable Test Speed Stepless speed regulation with five preset fixed‑speed settings within 50‑300 mm/min range. Operators can match cross‑head velocity to different material‑test requirements. The central‑to‑pillar offset of 80 mm creates adequate working clearance for varied fixture assemblies.
4. Simple Operation & Low Learning Threshold Physical button control panel with dedicated up‑down‑stop controls. No complex PC software installation required for basic routine tests. New‑line staff can complete specimen mounting and run tests after brief orientation.
5. Expandable Fixture Compatibility Base unit comes supplied with standard tensile clamps. Users can fit alternative jigs for button pull‑out, peel, tear and small‑component pull‑off tests to broaden the machine’s application scope.

Complete Technical Parameter Table

表格

Standard Complete Test Operating Workflow

1. Pre‑Test Check & Parameter Setup Power on the tester, confirm force‑gauge zero calibration. Adjust test speed on the control knob according to material‑spec requirements.
2. Specimen Mounting Operate control buttons to adjust cross‑head height. Secure the test sample firmly inside the matched fixture, ensuring good axial alignment to avoid side‑loading interference.
3. Execute Automatic Test Press the start button; the electrically‑driven cross‑head travels at preset speed. The dynamometer continuously captures real‑time force and automatically locks the peak‑force value upon specimen breakage.
4. Record Measured Results Document peak tensile / peel / tear force data shown on the digital display.
5. Post‑Test Reset & Shutdown Send cross‑head back to home position, remove tested specimen and clean fixture surfaces. Switch off main power when all sample batches are finished.

Wide Industrial Application Scenarios

Textile & Footwear Factories

Tear‑resistance and pull‑off testing for fabrics, synthetic leather, shoe‑materials and clothing hardware accessories.

Rubber‑Plastics & Tape Producers

Strength evaluation for thin plastic sheets, elastomer strips and adhesive‑tape peel‑force quality‑checks.

Electronic‑Component Workshops

Pull‑strength verification for small wiring terminals, plastic fasteners and miniature assembled parts.

Packaging & Printing Enterprises

Mechanical‑property inspection for packaging films and composite packaging substrates.

University & Vocational‑College Labs

Entry‑level material‑mechanics teaching equipment for routine sample‑testing exercises.

Third‑Party Quality‑Supervision‑Laboratories

Fast screening‑level mechanical‑performance tests for incoming‑goods batch‑verification.

Standard Factory‑Full‑Delivery Kit

1. KR‑201D electric‑driven compact pull‑tester main unit
2. Specified‑range digital push‑pull force dynamometer
3. Set of standard tensile test fixtures
4. Machine leveling foot pads
5. Multilingual printed operation manual complying with GB/T 16491‑1996
6. Factory‑issued force‑measurement calibration certificate

Global Distributor & After‑Sales‑Support

We provide remote operational guidance for speed adjustment, specimen mounting and force‑gauge zeroing. Spare‑parts stock includes replacement force gauges and custom‑made special‑purpose jigs. Bulk‑order customers can select alternative load‑capacity configurations. Regional‑exclusive‑agent privileges contain priority‑production scheduling, OEM private‑branding services and complete‑set high‑definition product‑marketing‑image resources.

Product‑Banner‑Marketing‑Slogan

KR‑201D Compact Electric Digital Pull‑Strength Tester | Desktop Low‑Force Tester For Tensile‑Peel‑Tear QC Inspection

Core‑Feature‑Labels‑For‑Product‑Images

Single‑Column Desktop Frame | Electric Motor Drive | 50‑300mm/min Adjustable Speed | N/Kg Unit Switch | Peak‑Force Capture | Easy‑To‑Operate Front‑Panel Controls

Safety‑Operation‑Reminder

Ensure specimens are securely clamped before starting test runs. Keep hands away from moving cross‑head travel zone during automatic operation.
