Product Overview

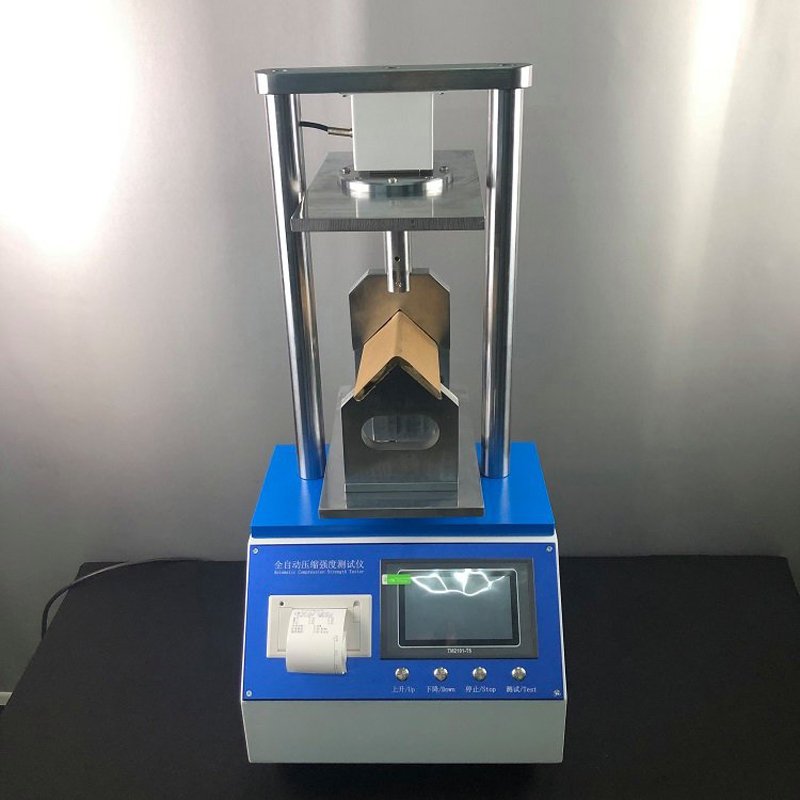

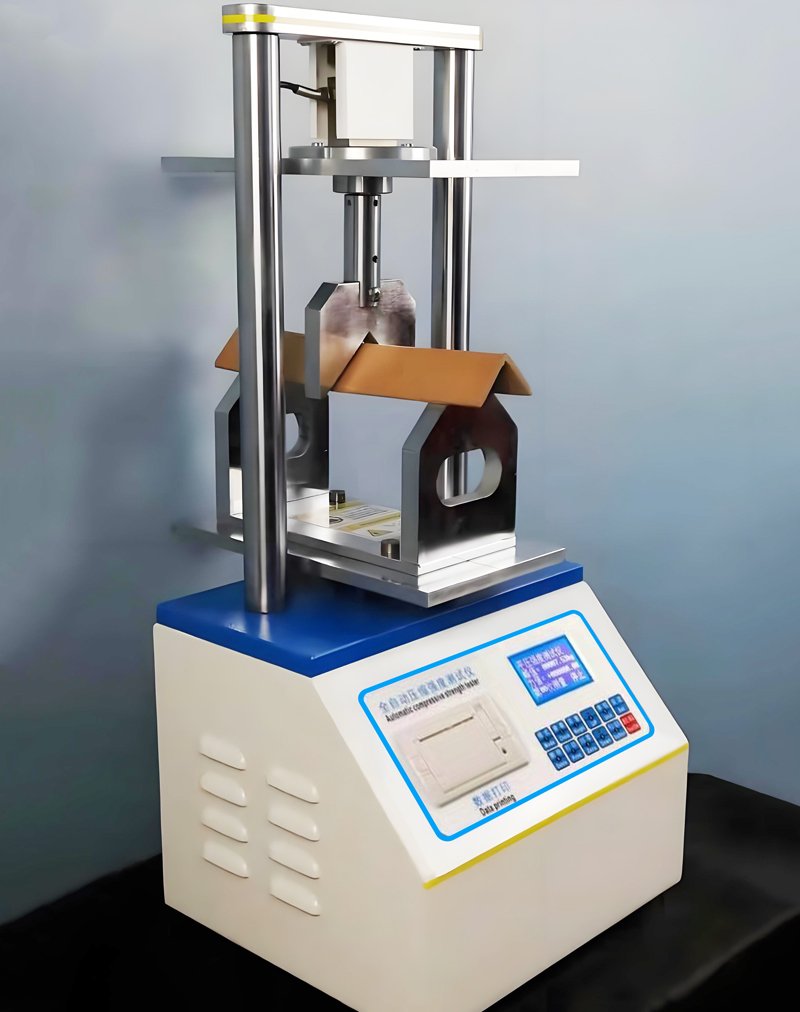

The KR‑445 specialised edge‑corner protector tester is purpose‑built for mechanical‑property assessment of paper corner guards, including L‑profile, U‑shaped, laminated and folded paper edge protectors. It reproduces real‑world stress conditions encountered during warehousing, stacking and logistics transit, to quantify compression resistance and bending‑failure performance of these packaging reinforcements.

Designed for packaging material manufacturers, logistics enterprises, in‑house quality‑control labs and accredited certification institutions, this bench‑top unit delivers repeatable measurement data. Test outcomes help reduce packaging breakage risks, optimise raw‑material formulation and verify compliance with BB/T 0023‑2004 and QB/T 1048 industry specifications.

Core Product Competitive Advantages

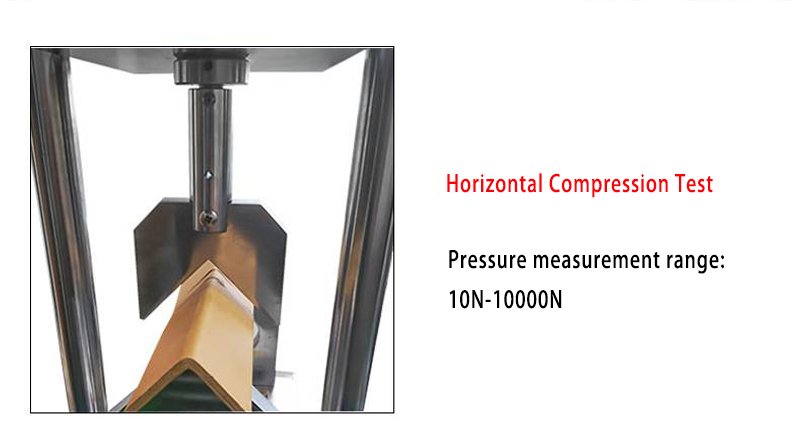

1. Dual‑Test‑Mode Mechanical Structure Supports both vertical compressive‑load testing and horizontal bending evaluation. One single machine completes two core performance assessments for paper corner samples, eliminating the need for separate pieces of test equipment. Precision‑machined flat platens guarantee high parallelism during sample loading.
2. High‑Accuracy Signal Acquisition System Equipped with high‑sensitivity load‑cell paired with 24‑bit high‑resolution AD conversion module. Force resolution reaches 0.01 N, ensuring stable and consistent readings even for low‑magnitude force changes across repeated batch‑sample runs.
3. Intuitive Touch‑Screen Human‑Machine Interface 7‑inch colour touch panel shows real‑time force‑vs‑deformation curves during testing. Operators configure test modes, travel speed and termination thresholds directly on‑screen. Built‑in thermal printer enables on‑site hard‑copy output of inspection results.
4. Comprehensive Data‑Export & Data‑Preservation Functions Multiple communication interfaces including USB and RS‑232 are provided for data transfer toward external PCs. Historical test datasets can be stored for later review and traceability. Power‑off memory function safeguards recorded data against unexpected power cuts.
5. Multi‑Layer Safety & Standard‑Compliant Design Built‑in electronic overload protection automatically halts drive motion when force exceeds instrument rated capacity. Test workflows fully align with BB/T 0023 and corresponding ISO requirements. Factory‑issued calibration documentation is supplied with each unit upon delivery.

Complete Technical Parameter Table

3. Technical Specifications

Standard Complete Test Operating Workflow

1. Pre‑Test Preparation Position the tester on level workbench. Select matching fixtures, place paper‑corner sample centrally on the platen, adopt vertical or horizontal mounting according to your target test mode.
2. Parameter Configuration Power‑on the instrument, pick compression or bending test mode, set test velocity and termination conditions via touch‑screen panel.
3. Automatic Test Execution Initiate test run. The drive system applies load at preset speed. Real‑time force‑deformation curve is displayed on‑screen. Machine stops automatically once sample fails or preset cut‑off condition is reached.
4. Result Output & Archiving Review peak‑force and deformation data. Operators may print test reports directly on‑device or transmit datasets to computer via USB / RS‑232 for further sorting and filing.
5. Post‑Test Tidying Moving assembly returns to home‑position. Remove damaged specimen, wipe platens and fixture surfaces clean. Shut‑down equipment after finishing all sample batches.

Wide Industrial Application Scenarios

Paper‑Corner‑Guard Production Plants

Incoming‑material inspection and finished‑goods release testing for various specifications of paper edge protectors; quality screening before product shipment.

Packaging‑Material Suppliers

Performance comparison for paper‑corner samples made of different base‑paper grades and wall‑thicknesses; support new‑material R&D and cost‑optimisation.

Logistics & Warehousing Enterprises

Verify protective‑performance of edge‑corner accessories used for cargo stacking and transit packaging.

Third‑Party Accredited‑Testing‑Organizations

Carry‑out standard‑compliant compression‑bending performance evaluation and generate formal inspection‑reports for product‑certification audits.

Packaging‑R&D Laboratories

Conduct verification tests for custom‑designed paper‑corner structures, validate structural improvement solutions.

Standard Factory‑Full‑Delivery Kit

1. KR‑445 paper‑edge‑corner protector compression‑bending tester main‑unit
2. Dedicated vertical‑compression and horizontal‑bending fixture assemblies
3. Power‑supply cable
4. Multilingual printed‑operation‑manual
5. Factory‑issued performance‑inspection certificate
6. Optional metrology‑calibration certificate

Global Distributor & After‑Sales‑Support

We provide remote operational guidance covering mode‑selection, parameter setup, specimen‑placement and routine equipment maintenance. Spare‑parts stock includes load‑cells, printing‑heads and replacement fixture components. Bulk‑order customers may request custom‑stroke and custom‑force‑range variants. Regional‑exclusive‑agent privileges contain priority‑production‑scheduling, OEM private‑branding‑services and complete‑set high‑definition product‑marketing‑image‑resources.

Product‑Banner‑Marketing‑Slogan

KR‑445 Paper‑Edge‑Corner‑Protector Compression‑Bending Tester | Dual‑Mode Vertical‑Horizontal Test For Paper‑Corner‑Guard Packaging‑Strength Evaluation

Core‑Feature‑Labels‑For‑Product‑Images

Bench‑Top Compact Layout | Vertical‑Horizontal Dual‑Test‑Mode | 24‑Bit AD High‑Precision Acquisition | 7‑Inch Colour Touch‑Screen | On‑Board Thermal Printer | USB‑RS232 Data‑Export | Overload Safety‑Protection | BB/T 0023 Compliant

Safety‑Operation‑Reminder

Keep hands away from moving platen gap while machine is running. Keep test platens clean; perform periodic load‑cell calibration to sustain measuring accuracy.
