Core Product Advantages

1. 2000mm Full-Stroke Adjustable Vertical Guide Column
   High-strength smooth stainless vertical rod supports stepless height adjustment from 0 up to 2000mm, covering low-energy thin film testing and high-energy rigid panel impact requirements. The sliding chuck locks firmly at any position without slippage, ensuring consistent drop height for every parallel test to eliminate energy deviation.

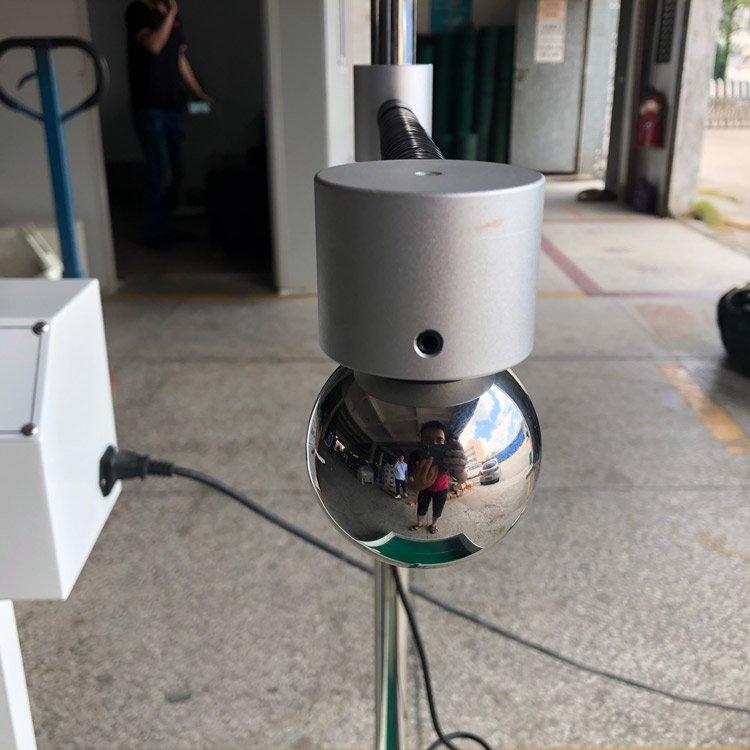

2. DC Electromagnetic Automatic Release System
   Stable electromagnetic adsorption design eliminates manual hook release error. One-touch drop button instantly cuts magnetic force to realize pure free fall without friction interference. Built-in auxiliary positioning lamp aligns the ball center with specimen impact point precisely for uniform collision position each cycle.

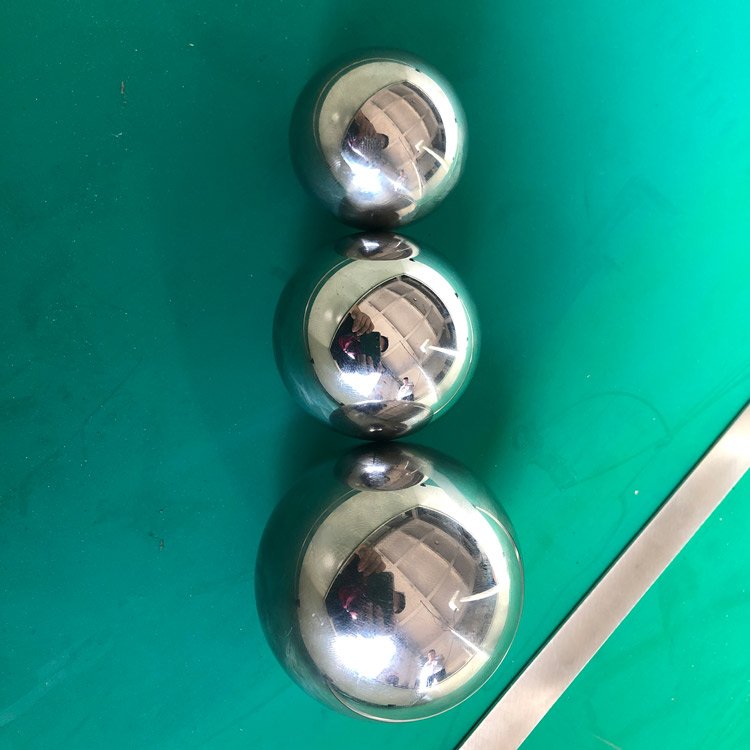

3. Full Set Interchangeable Standard Stainless Steel Balls
   Supports multiple mass specifications ranging from 50g up to 1000g polished solid steel balls. Smooth mirror surface avoids uneven impact force caused by surface burrs; users match ball weight and drop height flexibly to simulate different transport collision and drop scenarios.

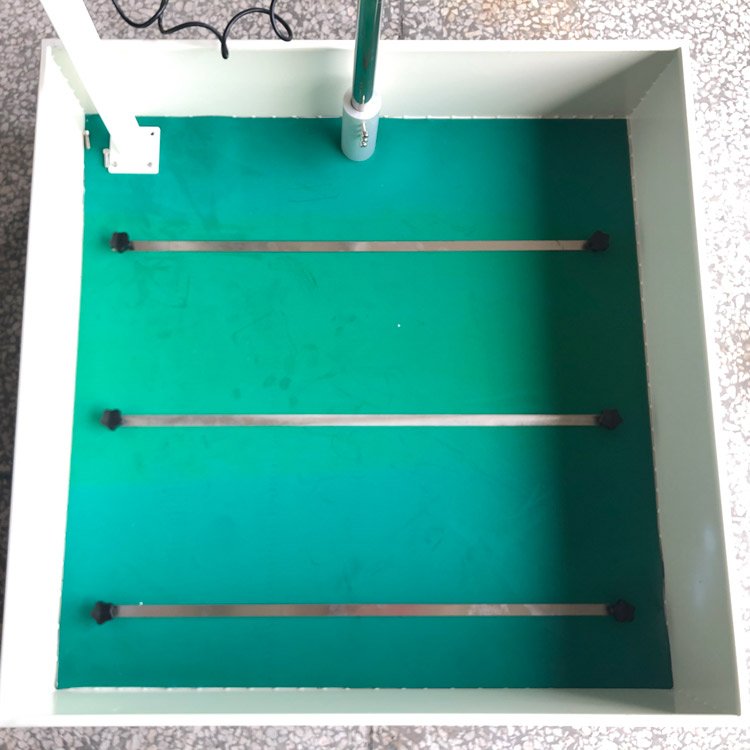

4. Integrated Anti-Splash Protection Test Base
   Large enclosed test trough lined with soft green buffer pad prevents bounced steel balls from splashing out and hurting operators. Three parallel positioning support bars inside fix flat samples steadily without sliding during impact, suitable for sheets, lenses and rigid plastic panels of various sizes.

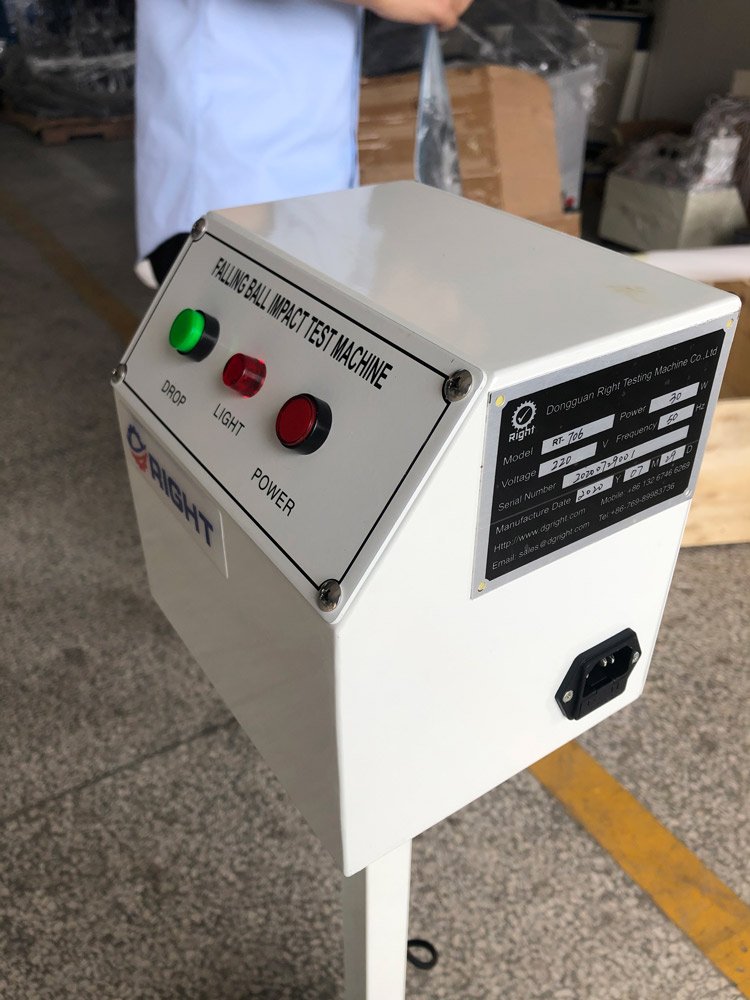

5. Simple Three-Button Intelligent Control Panel
   Independent POWER, LIGHT and DROP function buttons with clear color distinction, extremely low operation threshold for new staff. Circuit adopts stable low-voltage control module with overload protection to avoid long-hour continuous test equipment burnout.
6. Compact All-In-One Bench Layout
   Integrated base + vertical column + separated control box design occupies limited lab counter space, only requires standard single-phase 220V power supply without special industrial wiring. Lightweight whole machine structure can be moved easily between different test stations.
