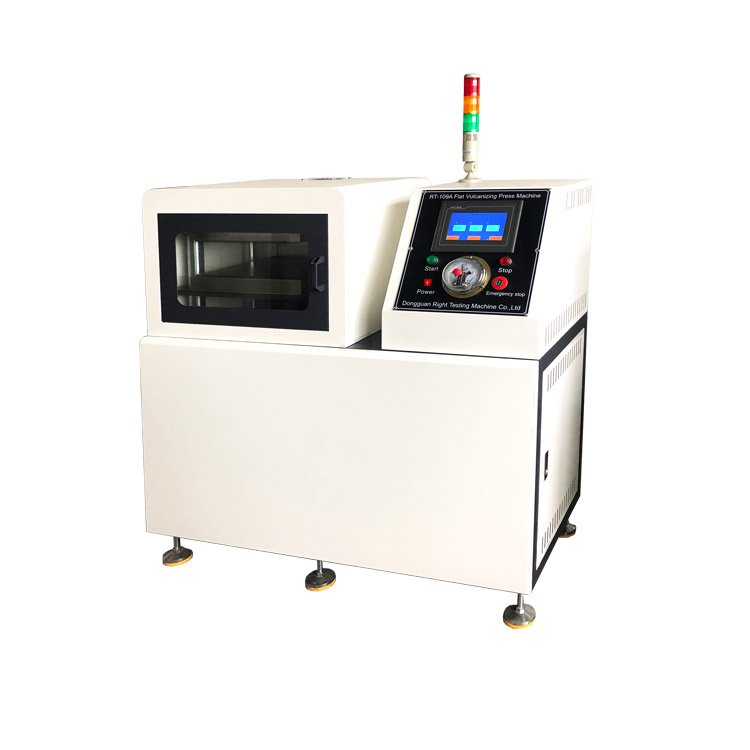

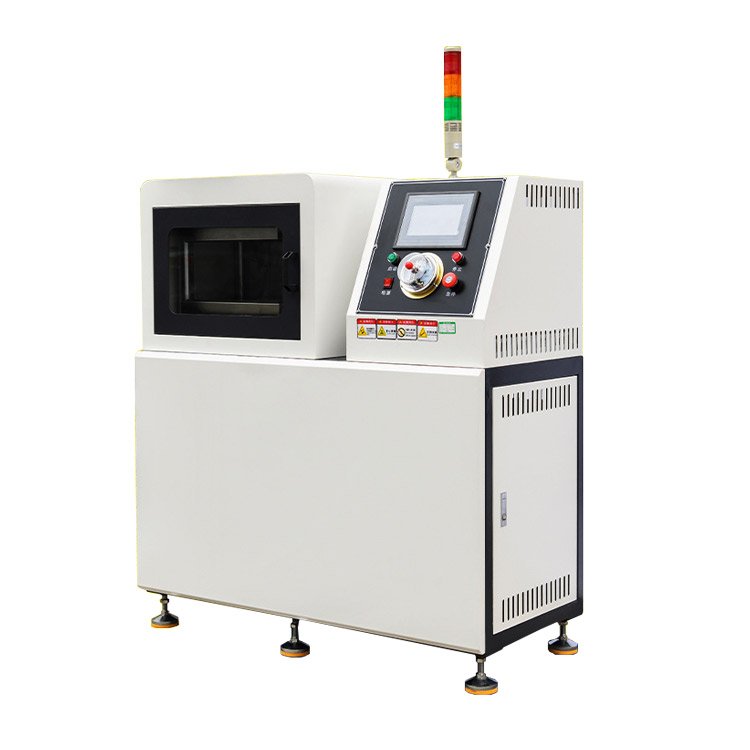

The KR-109A automated hydraulic flat vulcanizing press is a compact lab-grade hot forming machine engineered for small-batch vulcanization and thermal molding of rubber, silicone, thermoset plastics and composite pellets. Equipped with full PLC touchscreen programmable control and precision hydraulic pressure output, it replicates industrial high-temperature compression curing processes within a bench-friendly footprint.

This unit fabricates uniform standard test blanks for tensile, compression, impact, aging and hardness material tests. It also supports miniature finished part trial production for silicone seals, O-rings, foam sheets and custom polymer components. Multiple tonnages, heating plate sizes and multi-layer stacking options are customizable, making it the core processing device for university labs, material R&D centers, color masterbatch factories and third-party polymer testing institutes.

Core Machine Highlights

1. Intelligent PLC Touch Programmable Control System

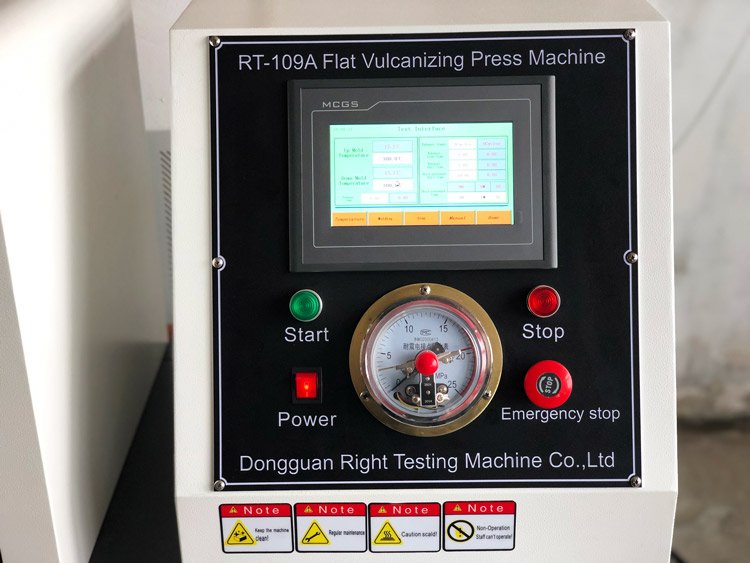

   Adopts industrial MCBS color touch HMI with fully editable vulcanization workflows. Operators preset clamping pressure, heating temperature, dwell time and automatic exhaust cycles; the system records full process data for traceability. One-click auto cycle includes low-pressure mold closing, high-pressure holding, timed curing and automatic mold opening, eliminating constant manual supervision. Multi-language interface fits global lab operation demands.



   2.Precision Hydraulic Pressure Output & Wide Ton Range

   Standard hydraulic tonnage covers 10T, 20T, 30T, 50T, 80T, 100T with fully adjustable pressure output. Heavy-duty thick hydraulic cylinder delivers stable compression without pressure drift during long curing cycles. Built-in pressure gauge provides real-time visual pressure readout, ensuring consistent clamping force for every batch of specimens.



   3.Uniform Electric Heating Plates with ±1℃ Accuracy

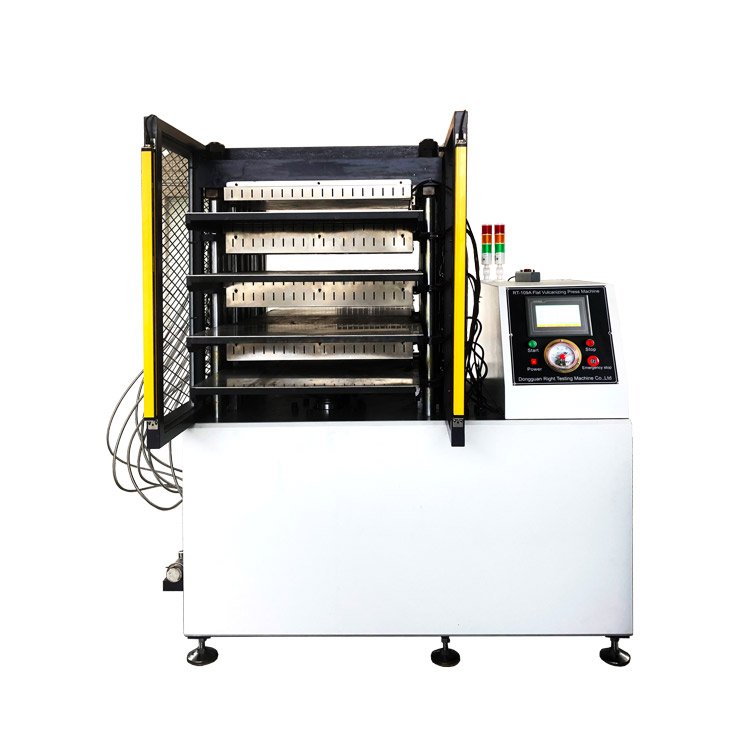

   Upper and lower platens adopt integrated embedded heating tube layout paired with independent temperature sensing probes. Max working temperature reaches 300℃ with temperature uniformity controlled within 1℃ across the entire plate surface. High-hardness quenched steel platens feature ultra-flat finishing (parallelism ≤0.1mm) to prevent uneven thickness of molded samples. Single-layer base design, 2/3 multi-layer stacking platens available on request.



   4.Adjustable Automatic Exhaust Function

   Programmable auto air release cycles (3–10 times per run) eliminate trapped air inside molds, effectively erasing bubbles, pits and incomplete filling defects on silicone and rubber molded parts. Exhaust frequency and hold interval can be tailored to high-viscosity compounds and intricate mold geometries.



   5.Full Safety Enclosure & Multi-Level Protection

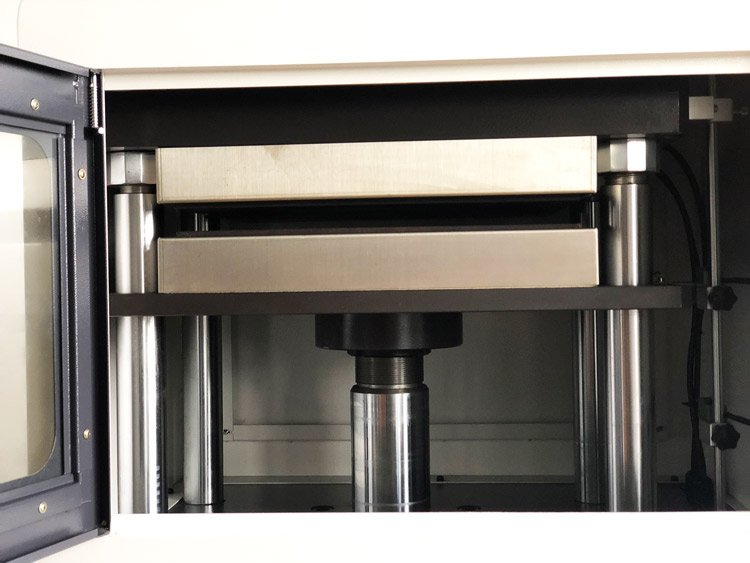

   Fully transparent safety observation window with yellow high-visibility protective barrier prevents accidental contact with moving platens. Top tri-color warning light signals standby/running/fault status; physical emergency stop button cuts all motion instantly. Four vertical guide posts ensure stable vertical movement to avoid mold offset during clamping.



   6.Robust Integrated Cabinet & Flexible Customization

   Whole frame adopts seamless steel welding with high-temperature anti-rust baking paint finish, resistant to heat and chemical splashes. Adjustable leveling foot pads stabilize the machine on uneven lab countertops. Customizable platen dimensions, cylinder stroke, cooling water circulation system and special voltage configurations are offered for global clients.

Standard Automated Operating Sequence

1. Mold & Sample Loading

   Place metal mold filled with weighed rubber/silicone/plastic pellets onto the lower heating platen, close the safety observation door.

2. Parameter Programming

   Set target curing temperature, holding pressure, vulcanization duration and auto exhaust cycles via touchscreen, activate preheating to stabilize platen temperature.

3. Automatic Low-Pressure Mold Closing

   Hydraulic cylinder drives upper platen down at low speed to fit the mold, then switches to high-pressure clamping as preset.

4. Timed Curing with Periodic Exhaust

   Machine holds constant pressure for set vulcanization time, automatically lifting the platen slightly at programmed intervals to vent trapped air.

5. Auto Mold Opening & Sample Unloading

   After curing countdown completes, the cylinder retracts to fully open the platens; take out finished molded sheets or small parts for cooling.

6. Daily Maintenance

   Wipe residual polymer from platens, inspect hydraulic oil level and heating tube status before shutting down power.

Applicable Materials & Industrial Usage Scenarios

Rubber & Silicone Industry

Plastic & Composite Industry

Core Application Fields

1. University material science labs teaching and new polymer formula development
2. Rubber/silicone factory R&D departments for small-batch prototype molding
3. Color masterbatch manufacturers pigment dispersion sample preparation
4. Third-party accredited testing laboratories standard specimen production
5. Medical & consumer silicone product small-scale pre-production trials

Standard Factory Delivery Package

1. KR-109A PLC automatic flat vulcanizing hot press main unit
2. Custom-sized upper & lower hard alloy heating platens
3. Complete hydraulic cylinder and power station assembly
4. MCBS touchscreen PLC intelligent control cabinet
5. Full transparent safety protective door & tri-color status warning lamp
6. Four vertical precision guide post assembly
7. Complete set of operation manual, electrical schematic and factory inspection certificate
8. Standard power cable and hydraulic piping fittings
