Product Introduction

Core Performance Highlights

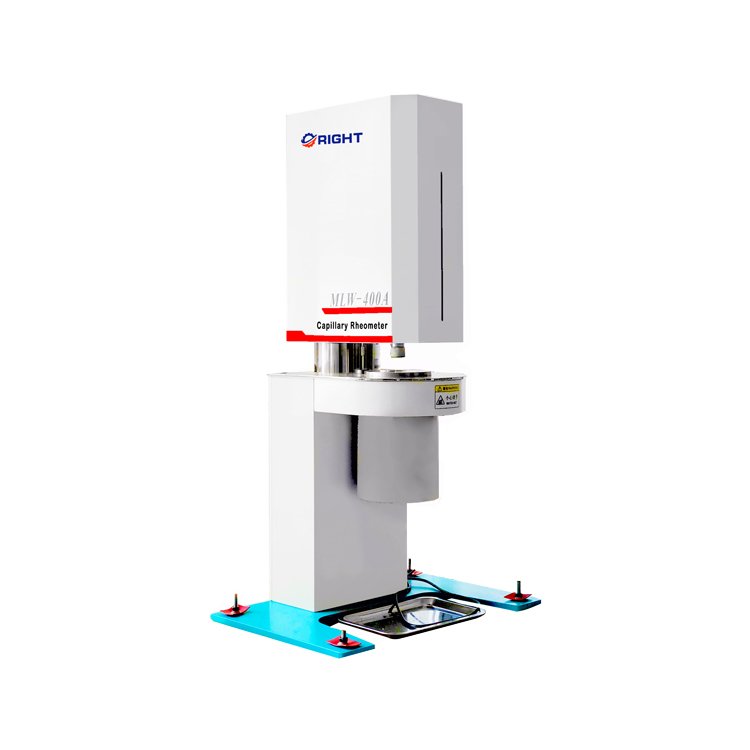

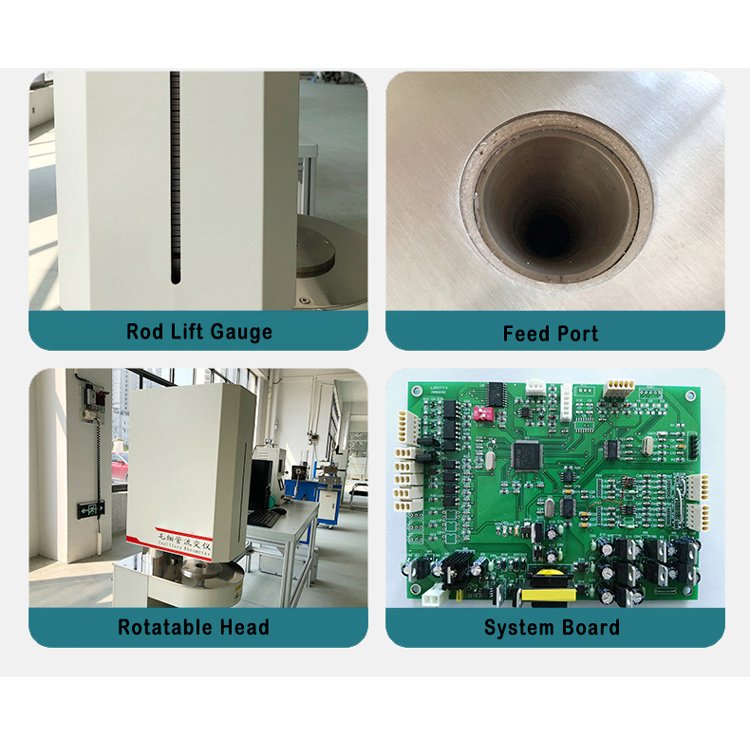

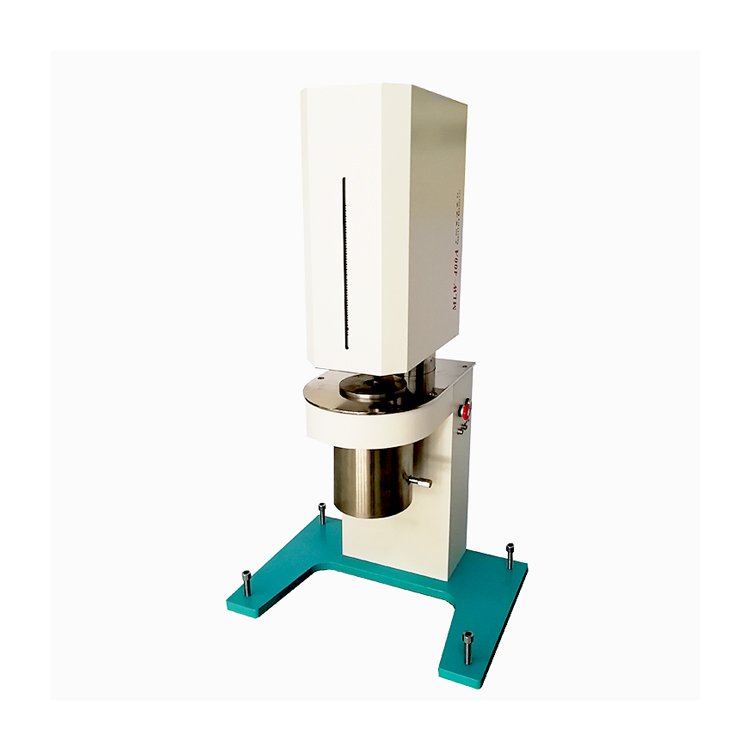

1. Compact Single Swing Column Integrated Frame

   Independent single vertical column swing head structure with optimized mechanical layout, ensuring sufficient overall rigidity under 5KN rated driving load without frame deformation. The open heating cavity design facilitates daily disassembly and residue cleaning, greatly lowering the operation threshold for ordinary QC inspectors. The small floor footprint adapts to narrow laboratory countertops and teaching lab workstations.
2. High Precision Servo Transmission System
   Imported Taiwan precision ball screw transmission paired with AC closed-loop servo motor, realizing 0.001–500mm/min stepless speed adjustment. Real-time synchronous collection of displacement and pressure signals, with displacement measurement error controlled within ±0.5% full scale, providing stable extrusion power for low to medium viscosity polymer melts.
3. Uniform Spiral Circumferential Heating Barrel
   Full surrounding spiral heating wire wrapping design realizes consistent temperature distribution inside the barrel, avoiding local hot spots that cause material thermal decomposition. The temperature control range covers ambient temperature up to 400℃, with adjustable heating speed of 1–10℃/min and 0.1℃ high-precision temperature readout, meeting the processing temperature simulation requirements of most general plastics.
4. Intelligent Visualized Measurement & Control Software

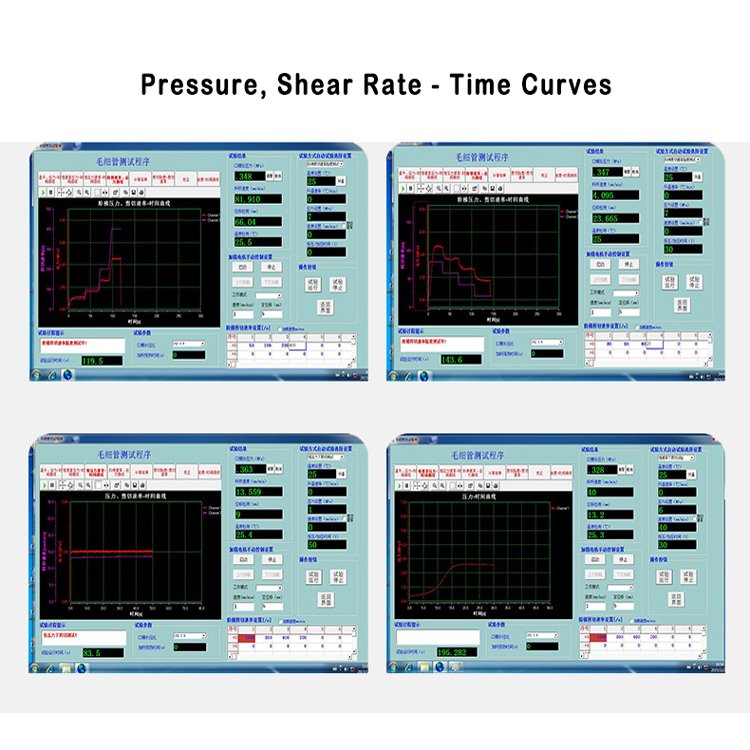

   Simplified intuitive Windows-compatible operating interface, users can one-click set test temperature, holding time, shear rate and other parameters before testing. During operation, real-time rheology curves and numerical indexes are displayed synchronously; after measurement completion, the system automatically calculates apparent viscosity, shear stress and core indicators, supporting local storage and printable inspection reports.
5. Wear-Resistant Multi-Spec Tungsten Carbide Dies
   Standard delivery includes four groups of L/D ratio tungsten alloy capillary dies (Φ1×5 / Φ1×10 / Φ1×20 / Φ1×40mm). The ultra-smooth inner bore resists abrasion from mineral fillers, colorants and inorganic additives, maintaining long-term dimensional stability to guarantee parallel test data repeatability. Custom plunger diameters and special temperature modules are supported for special material testing demands
6. Stable Low-Power Operation Configuration
   Total machine rated power is less than 1000W, matching standard single-phase 220V domestic power supply without special industrial power transformation. Equipped with complete safety interlock protection such as over-temperature alarm and emergency stop button to eliminate hidden dangers during long unattended testing.

Full Technical Parameter List
