KR-107 Digital Akron Rubber Abrasion Tester

Akron abrasion machine used to measure the wear resistance of vulcanized rubber, through the specimen and the wheel at a certain angle and under a certain load of friction, determination is within a certain mileage wear volume. Figures set to show wear the number, automatic shutdown, will host and electrical control design as a whole, using calibration wheel, handsome in appearance, easy operation, improved testing machine for the domestic-date.

Product Details：

Product Introduction

The KR-107 digital Akron abrasion tester is standardized lab equipment dedicated to measuring volumetric abrasion loss of vulcanized rubber, elastomer and soft polymer materials. It follows GB/T 1689 national rubber testing standard and simulates real-world surface friction between rubber parts and hard abrasive surfaces under fixed load and tilt angle.

During testing, standard rubber specimens rotate against a calibrated alumina grinding wheel with constant 26.7N vertical pressure. Users weigh samples before and after the preset number of rotations to calculate abrasion index, which serves as core data for new formula screening, raw material incoming inspection and finished product durability certification. This integrated all-in-one machine combines drive, mechanical adjustment and digital control modules, widely adopted in footwear factories, tire manufacturers, auto rubber component plants and accredited material testing labs.

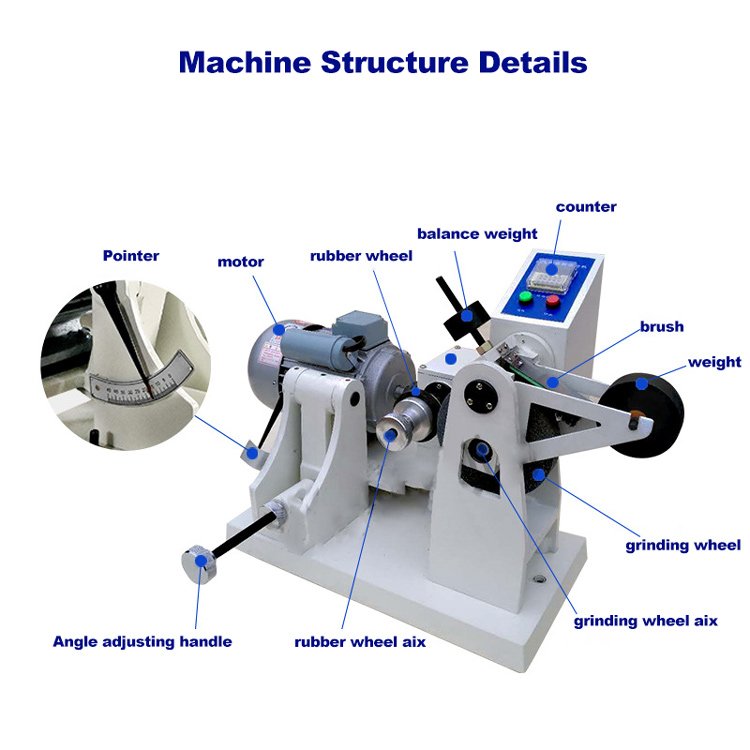

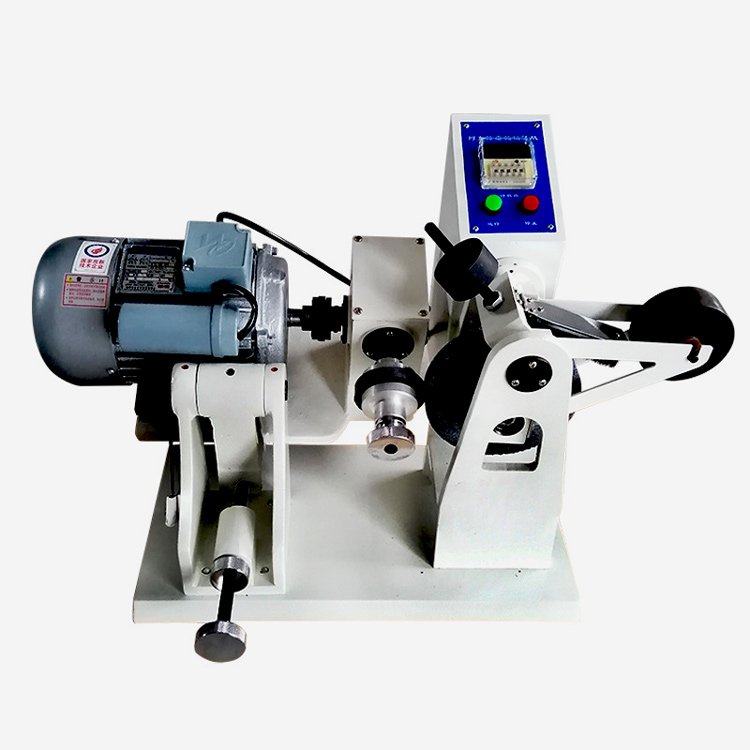

KR-107 Main Unit

Core Competitive Advantages

Digital Programmable Counter with Auto Stop Function

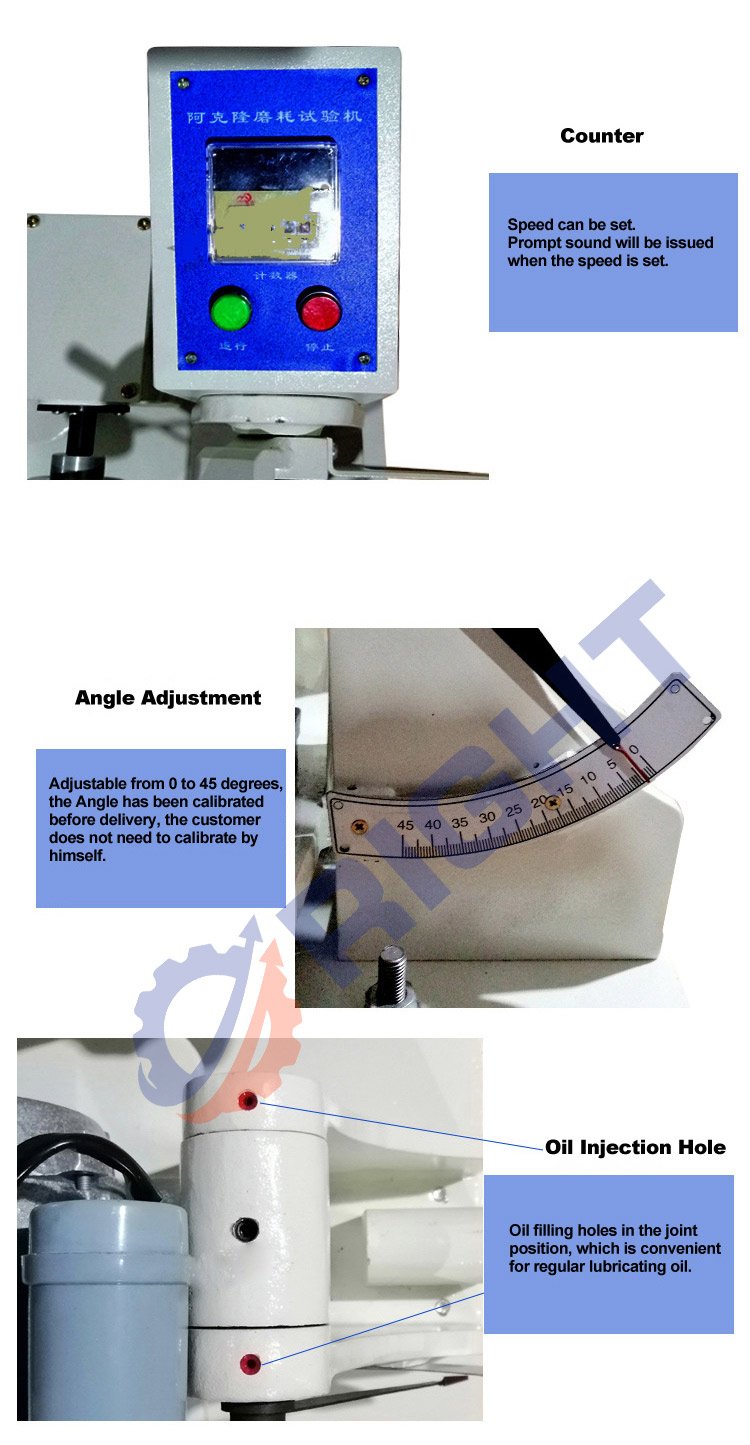

Equipped independent digital cycle display panel with start/stop physical buttons. Operators input target abrasion revolutions in advance; the machine automatically cuts off operation once reaching set value and triggers reminder sound, eliminating long-time manual supervision and avoiding test error caused by miscounting rotations.

2.0–45° Precise Adjustable Inclination Angle

Large engraved angle dial with clear scale markings allows continuous angle adjustment from 0 to 45°, standard 15° tilt for routine rubber testing. Calibrated scale does not require repeated manual correction after long-term use, ensuring consistent friction contact area for every test batch.

3.Standard 26.7N Constant Balance Load

Lever balance weight structure delivers stable 26.7N vertical compression force on specimens throughout full test cycles. No pressure fluctuation during high-speed rotation, perfectly matching international Akron abrasion test load requirements for accurate, repeatable wear data comparison.

4.Built-In Self-Cleaning Grinding Brush

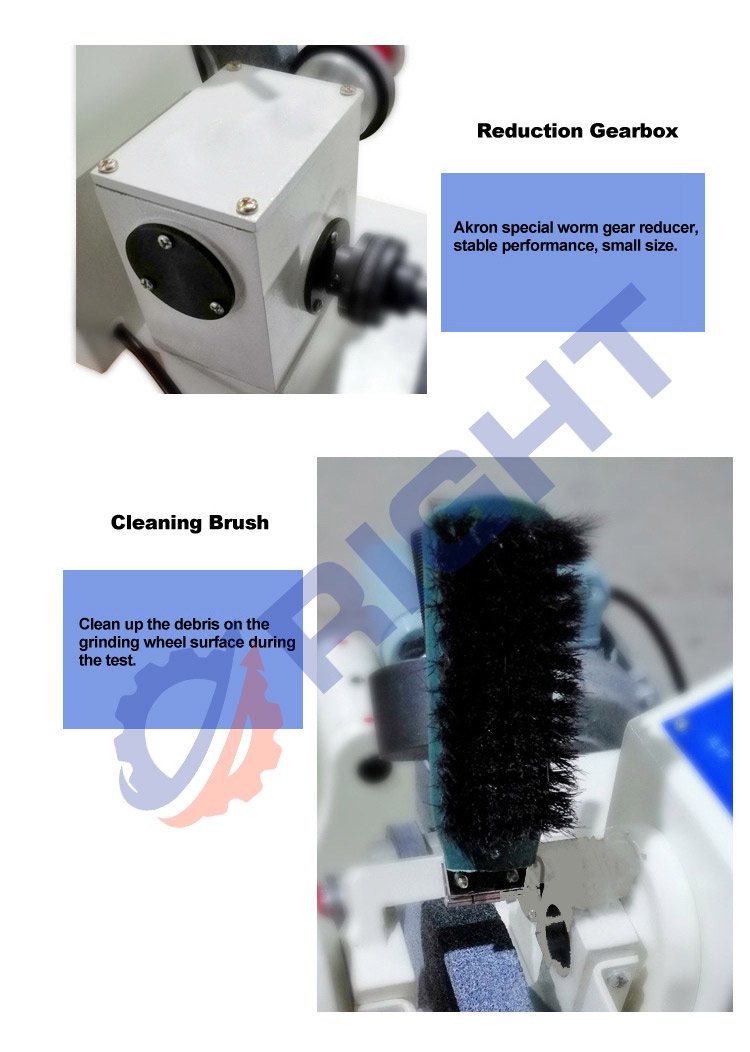

Dedicated steel brush assembly automatically sweeps rubber debris off the abrasive wheel while running, preventing powder buildup from blocking the grinding surface and altering abrasion efficiency. It reduces frequent manual cleaning between groups and improves continuous testing efficiency.

5.Stable Worm Gear Reduction Drive System

Custom low-noise worm gear reducer matches standard dual-axis differential speeds (76±2rpm specimen wheel, 33–35rpm grinding wheel). Thick cast metal frame with anti-vibration base minimizes mechanical shake during long-hour continuous operation, extending drive component service life.

6.Complete Standard Matching Abrasive Wheel

Comes with industry-standard 36# alumina grinding wheel (150×35mm) with dual-side locking fixture to prevent wheel displacement during high-speed friction. Hollow oil injection ports on transmission joints simplify regular lubrication maintenance and reduce wear loss of moving parts.

Control & Angle Details

Standard Complete Test Workflow

Specimen Preparation & Pre-Weighing
Cut rubber into standard annular test blanks, place under 23℃ constant temperature environment for conditioning, then measure accurate initial weight via precision analytical balance and record data.

2.Sample Installation & Angle Setting

Mount specimen tightly on the rubber wheel fixture, rotate angle adjustment handwheel to set standard 15° tilt angle and lock positioning knob.

3.Parameter Configuration

Input target abrasion rotation number on digital counter panel, press start button to launch automatic test cycle. The built-in cleaning brush works synchronously to remove rubber debris.

4.Automatic Termination

When reaching preset cycles, the machine halts automatically with prompt sound. Remove specimen and brush residual powder completely.

5.Post-Test Weighing & Calculation

Reweigh cleaned test piece, compute abrasion volume and abrasion index by weight difference to evaluate material anti-wear performance grade.

Applicable Materials & Industrial Scenarios

Footwear Industry

Sole rubber, midsole elastomer, shoe outsole composite materials; compare abrasion resistance of different shoe formulas for new product development.

Tire & Auto Parts

Tread rubber, sealing gaskets, suspension shock-absorbing rubber, automotive pipeline elastomers; test wear durability under long rolling friction.

General Rubber Manufacturing

Conveyor belt rubber, transmission belt compound, industrial sealing strips, flexible plastic elastomers; raw material incoming quality inspection.

Testing & R&D Institutions

University polymer labs, third-party material certification centers, rubber factory QC departments for batch sampling and formula contrast testing.

Technical parameter:

Model	KR-107
Strength of Rubber tire	26.7N
Speed of rubber wheel rotation	76±2r/min
Speed of wheel shaft speed	33–35r/min
Range of plastic axle and wheel axis angle	0°–45°
Power	AC220V±10%
Outside dimension	600 mm×480 mm×400 mm
Weight	60Kg
Attachment	A digital timer

Standard Factory Delivery Package

KR-107 digital Akron abrasion tester main machine
Standard 36# alumina grinding wheel + dual-side locking fixture
Built-in automatic cleaning steel brush assembly
Balance weight set for 26.7N constant load
Digital programmable counter control cabinet
Full set operation manual aligned with GB/T 1689 standard
Standard spare lubricating oil and maintenance tools

Global After-Sales & Distributor Support

We provide full remote operation training and abrasion test parameter guidance, with long-term supply of replacement grinding wheels, cleaning brushes and reducer spare parts. Custom machine exterior colors and overseas voltage conversion versions are available for bulk buyers. Exclusive regional agent policies include priority production scheduling, OEM private brand labeling and complete English marketing image packs.

English Text For Product Image Overlays

Main Banner: KR-107 Digital Akron Rubber Abrasion Tester

Control Panel Labels: ROTATION SET / START / STOP / ALARM REMINDER

Feature Tags: 0~45° Adjustable Angle | Auto Cleaning Brush | Digital Auto Stop | GB/T 1689 Compliant

Safety Warning: Do Not Touch Rotating Grinding Wheel During Operation
