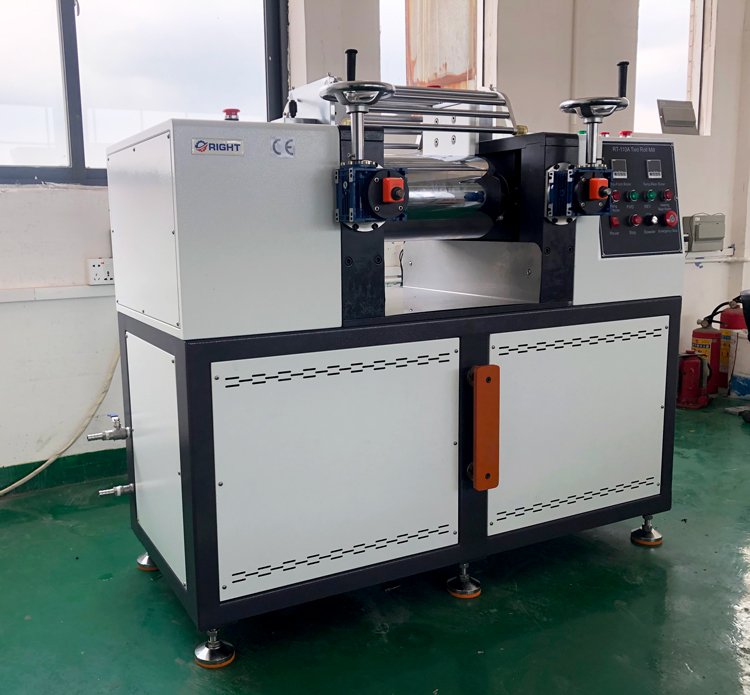

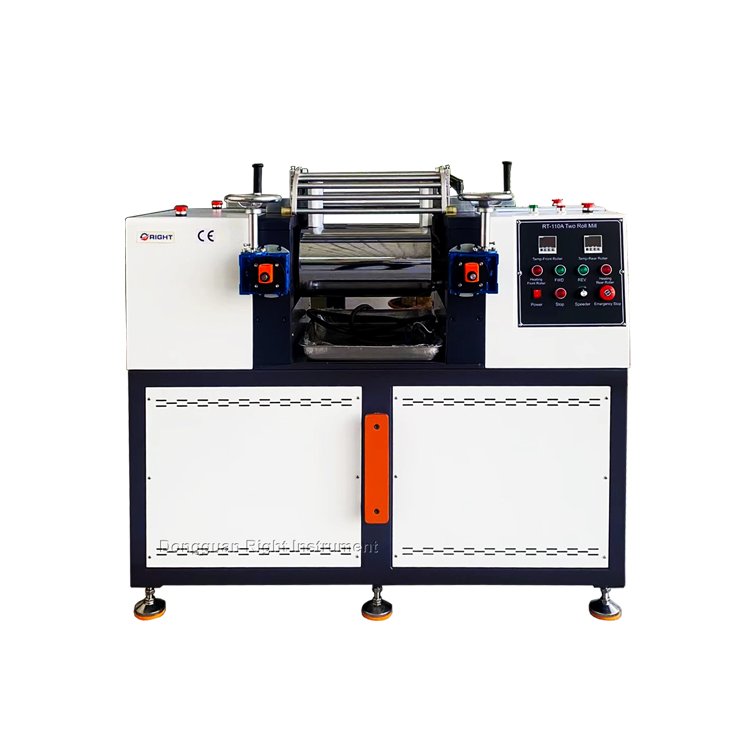

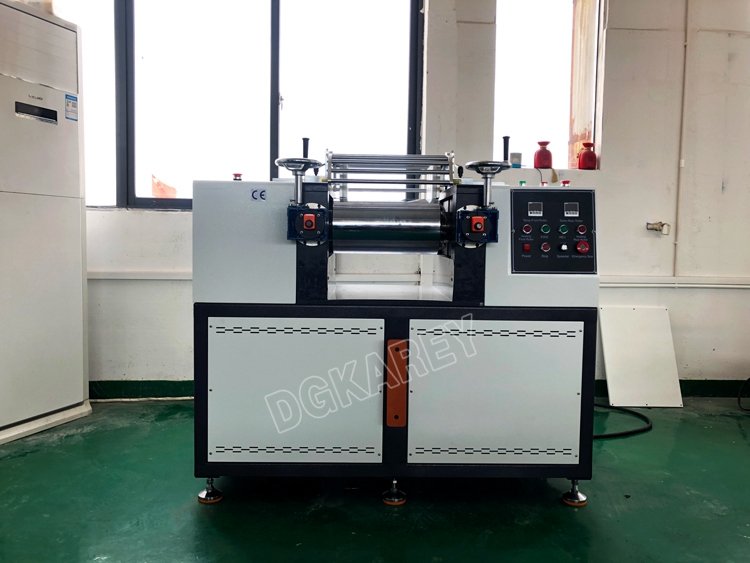

KR-110 Bench-Style Lab Two Roll Mixing Mill (Electric Heating + Water Circulation Cooling)

KR-110 Bench-Style Lab Two Roll Mixing Mill (Electric Heating + Water Circulation Cooling) - Image 3

KR-110 Bench-Style Lab Two Roll Mixing Mill (Electric Heating + Water Circulation Cooling) - Image 5

KR-110 Bench-Style Lab Two Roll Mixing Mill (Electric Heating + Water Circulation Cooling) - Image 6

Categories 1. Rubber Testing Machine, 2. Plastic Testing Machine Tag two roll mill

Additional information

Model	RT-110
Roller Diameter	4 inch, 6 inch, 8 inch, 10 inch
Roller temperature	RT～300℃
Heating method	Electronic Heating+Water-cooled cooling

RT-110 Two Roll Open Mixing Mill (Electronic Heating & Water Cooling)

This machine suitable for plastic industry polymer material mixing and processing such as, PVC, color master batch. Making the raw material and compound mixing, and achieve the required color and quality. The machine adopts special heated mold, roll surface temperature uniformity, never take off a layer, sample thickness can be mixed, the machine safety protection device, convenience to use.

Reference standard:

GB 6038-2006 Rubber ingredients of rubber testing, mixing and Vulcanization equipment and operating procedures.

GBT 13577-1992 Mill for rubber and plastics

HGT 2149-2004 Open rubber mixing machine, plastic mixing mill test methods

JBT 53113-1999 Open plastic mixing mill product quality grading

Product Details：

Product Overview

The KR-110 bench-top open two-roll mixer is compact lab-scale kneeling equipment dedicated to polymer formula development, color matching and small-batch sample preparation. Equipped with dual independently controllable heating & water cooling roller barrels, it adopts differential speed twin roller structure to generate strong shear force, fully blending rubber, plastic pellets, color masterbatch and all kinds of filler additives into uniform, bubble-free compound sheets.

All core transmission and temperature control components adopt internationally renowned brand parts. The unit supports manual handwheel roller gap adjustment, dual frequency conversion speed regulation and multi-point emergency stop safety protection. It fully complies with national and international testing standards such as GB 6038, HG/T 2149, widely deployed in university material labs, new material R&D departments, third inspection institutes and plastic & rubber factory QC rooms.

Compliant Industry Standards

GB 6038-2006 Rubber test mixing & vulcanization equipment operation specification
GB/T 13577-1992 Rubber & plastic open mixing mill general technical requirements
HG/T 2149-2004 Test methods for rubber open mills
JB/T 53113-1999 Open plastic mixing mill quality grading standard

Core Product Highlights

Alloy Mirror Polished Roller Barrels with Stable Temperature Uniformity

Rollers are manufactured from vanadium-titanium chilled cast iron, quenched and mirror hard chrome plated with surface hardness HRC50–60. Hollow internal flow channels realize fast, even heating & cooling, eliminating local overheating or cold spots that cause uneven mixing. Roller gap ranges from 0.1–10mm for flexible thickness control of finished sheets.

2.Dual Independent Electric Heating & Water Circulation Cooling System

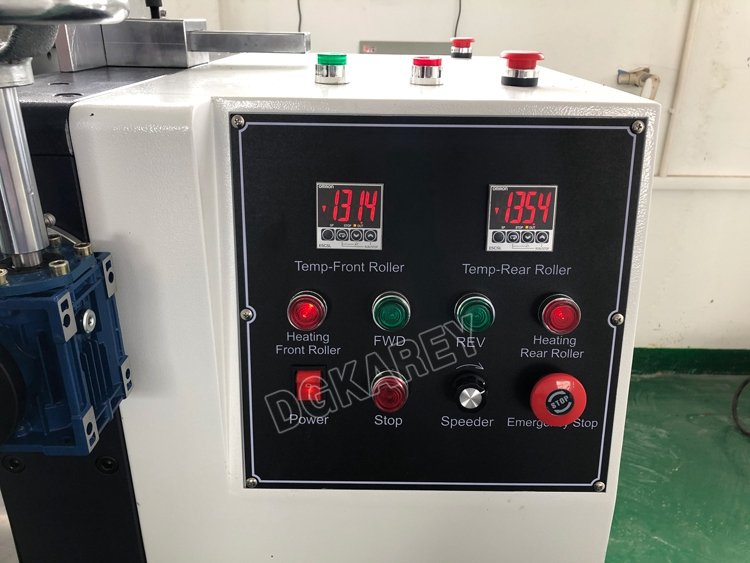

Separate PID constant temperature modules for front & rear rollers, adjustable from ambient up to 300℃ with ±3℃ precision. Closed water circulation rapidly dissipates frictional heat during high-shear kneading, effectively preventing rubber scorching and plastic degradation for high-viscosity compound processing.

3.Dual Frequency Conversion Drive, Customizable Roller Speed Ratio

Two separate variable frequency motors power front & rear rollers independently. Multiple standard speed ratios (1:1.22 / 1:1.35 / 1:1.4 / 1:1.7) are optional to match different material viscosity, from soft silicone to rigid engineering plastics, ensuring sufficient shear dispersion without material tearing.

4.Full-Range Multi-Point Emergency Safety Protection

7 sets of collision emergency stop devices distributed around the machine frame, with instant roller reverse function triggered once the safety baffle is touched. All exposed transmission parts are covered by protective housings to avoid pinch hazards, fully meeting laboratory safety operation standards.

5.Stable Transmission & Automatic Lubrication Design

Hardened gear reducer delivers high torque with low running noise. Built-in automatic oil supply pump continuously lubricates bearings and gear sets during operation, eliminating manual frequent oiling and extending the service life of drive components. Integrated cabinet layout saves lab floor space with easy daily cleaning.

6.Precise Manual Roller Gap Adjustment with Digital Readout

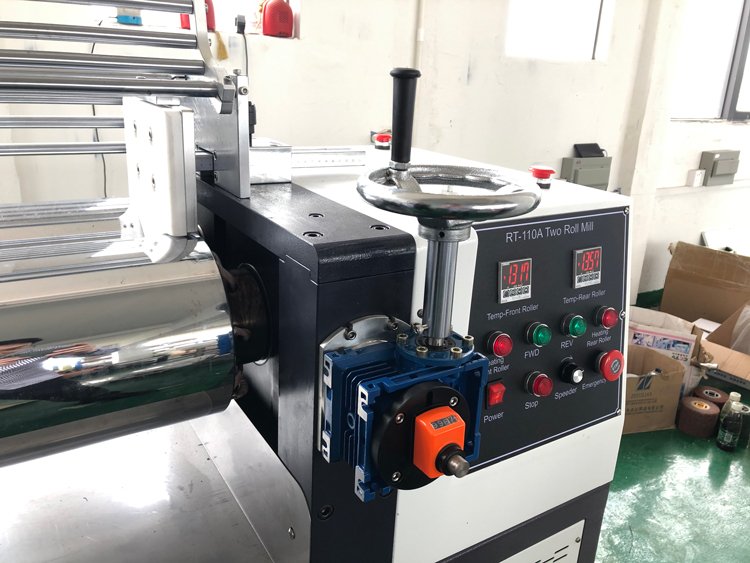

Large three-spoke handwheel for easy gap fine-tuning, paired with digital display module to show real roller spacing values. Operators can quickly lock fixed sheet thickness for repeated batch sample preparation, guaranteeing consistent specimen dimensions for subsequent tensile, aging and abrasion testing.

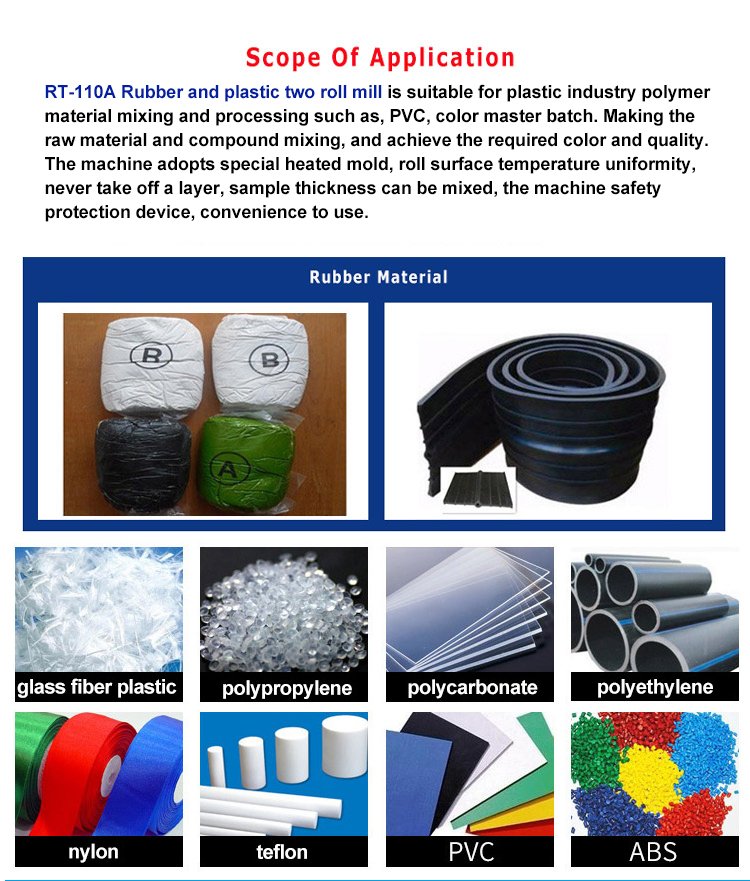

Applicable Materials & Industry Scenarios

Rubber Materials

Natural rubber, NBR, EPDM, silicone, recycled rubber, shock-absorbing and sealing compound for auto parts, hoses and footwear soles.

Thermoplastic & Modified Plastics

PVC, TPE, TPU, PP, PE, ABS, PC, glass fiber reinforced plastics, color masterbatch, low-smoke halogen flame retardant materials.

Functional Compounds

Conductive rubber, magnetic polymer, foaming materials, food-grade flexible elastomers for laboratory formulation screening and small trial production.

Main Application Fields

University & research institute material science lab teaching & formulation research
Rubber & plastic factory R&D laboratory new material color matching and performance testing
Third-party testing institutions standard test sample pre-production
Raw material incoming quality inspection and finished product process verification

Technical parameters:

Model Project	KR-110-1	KR-110-2	KR-110-3	KR-110-4
Roller Diameter （metric /inch）	120mm/4in	160mm/6in	200mm/8in	250mm/10in
Roller face width	320mm	320mm	320mm	320mm
Mixing capacity	0.3～2kg	0.5～3kg	1～10kg	2～15kg
Picking device	SUS304 Stainless steel hopper	SUS304 Stainless steel hopper	SUS304 Stainless steel hopper	SUS304 Stainless steel hopper
Roller temperature	RT～300℃	RT～300℃	RT～300℃	RT～300℃
Heating method	Water-cooled cooling	Water-cooled cooling	Water-cooled cooling	Water-cooled cooling
Temp Accuracy	±3C	±3C	±3C	±3C
temperature controller	PID control	PID control	PID control	PID control
Roller Rev	frequency control	frequency control	frequency control	frequency control
Roller ratio adjusted according requirements	1:1.22/1:1.35 1:1.4	1:1.22/1:1.35 1:1.4	1:1.1/1:1.22 1:1.4/1:1.7	1：1.1/1:1.22 1:1.4/1:1.7
Roller hardness	50～60HRC	50～60HRC	50～60HRC	50～60HRC
Roller processing	Mirror polishing chrome plated	Mirror polishing chrome plated	Mirror polishing chrome plated	Mirror polishing chrome plated
Roller spacing	0.1～8mm adjustable	0.1～8mm adjustable	0.1～8mm adjustable	0.1～10mm adjustable
Spacing display mode	Calibration/digital display	Calibration/digital display	Calibration/digital display	Calibration/digital display
Safety device	Collision type emergency stop	Collision type emergency stop	Collision type emergency stop	Collision type emergency stop
Safety device number	7 PCS	7 PCS	7 PCS	7 PCS
Special function	Emergency stop inversion	Emergency stop inversion	Emergency stop inversion	Emergency stop inversion
Motor power	4.5KW	5.5KW	7.5KW	15KW
Power voltage	3phase，AC380V	3phase，AC380V	3phase，AC380V	3phase，AC380V
Dimension	11.11.4（M）	11.11.5（M）	1.51.21.5（M）	1.51.31.6（M）
Weight	About 2T	About 2.5T	About 3.4T	About 4T

Standard Delivery Kit

KR-110 two roll mixing mill main unit
Dual frequency conversion drive motor & hardened reducer assembly
Mirror alloy twin roller barrels with heating/cooling flow channels
Independent dual PID temperature control cabinet with digital display
Manual gap adjustment handwheel & digital spacing readout module
Multi-point collision emergency stop safety system
Automatic centralized lubrication pump assembly
SUS304 stainless steel material receiving hopper
Complete operation manual, electrical schematic and factory inspection certificate
Water circulation pipeline fittings & power cable
