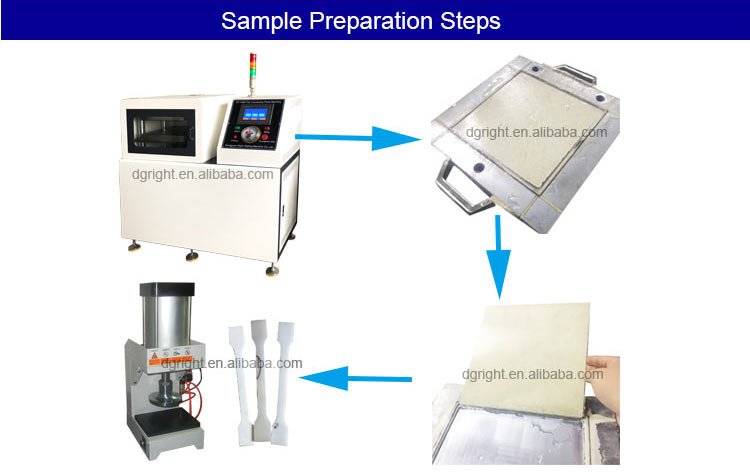

Technical parameter：

Requirement of motor and control：

1.The system including two kinds of operating mode:

Automatical and manual.

2.During manual running:

Turn on opening mold, stop opening mold, turn on clamping mold, stop clamping mode by pressing button, to finish the manual control for opening and clamping mold.

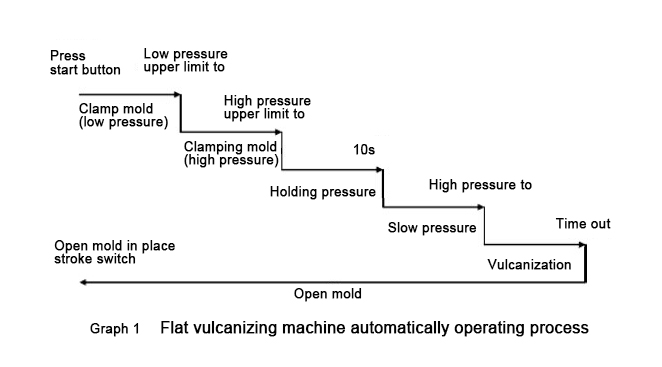

3.Automatically operating process showed as below:

Solenoid valve, and others are vulcanizing time,motion instruction and alarms, etc.

4.Action execution instruction：

a）The process of clamping mold is finished by two low pressure(11KW) pumps and a high pressure(18KW) pump, the hydraulic system drives the lower mold to do the upward movement,when the pressure achieve to the low pressure limit(12MPa), the low pressure pump will stop; When achieving high pressure limit, the high pressure pump will stop, and the whole process finished.

b）During holding pressure, due to use check valve in the hydraulic circuit, so no need to the hydraulic pump work, and keep the pressure of hydraulic system, the holding pressure process finished after 10s.

c）The slow pressure process consist of open mold motor(2.2KW), open mold solenoid valve and high pressure pump. When access to slow pressure step, firstly, the open mold motor and open mold solenoid valve will finish decompression. When the pressure achieve to 0 Mpa, the opening mold motor and open mold solenoid valve will be outage,the high pressure pump will power on and clamp force, when achieve high pressure limit, the high pressure pump will stop and repeat three times, then slow pressure process done.

d）After slow pressure process, access into vulcanizing stage. Similar with holding pressure, but due to longer time(30~45min, different material will be different, time adjustable), the pressure will drop, when the pressure lower than pressure limit limit(16Mpa), will ask for turn on high pressure pump to reinforce pressure until the pressure up to high pressure limit.

e）Open mold is finished by open mold motor, open mold solenoid valve. When the lower mold drop to start position( Controlled by open mold in place stroke switch), the open mold done.

5.Vulcanizing temperature is provided by steam, the boiler produce steam, then access to vulcanizing machine uninterruptedly by manual valve.

6.System setting includes total stop button, open mold instruction button, clamp mold instruction button, vulcanization finish alarm button, and the necessary protect device such as short circuit and overload, etc.

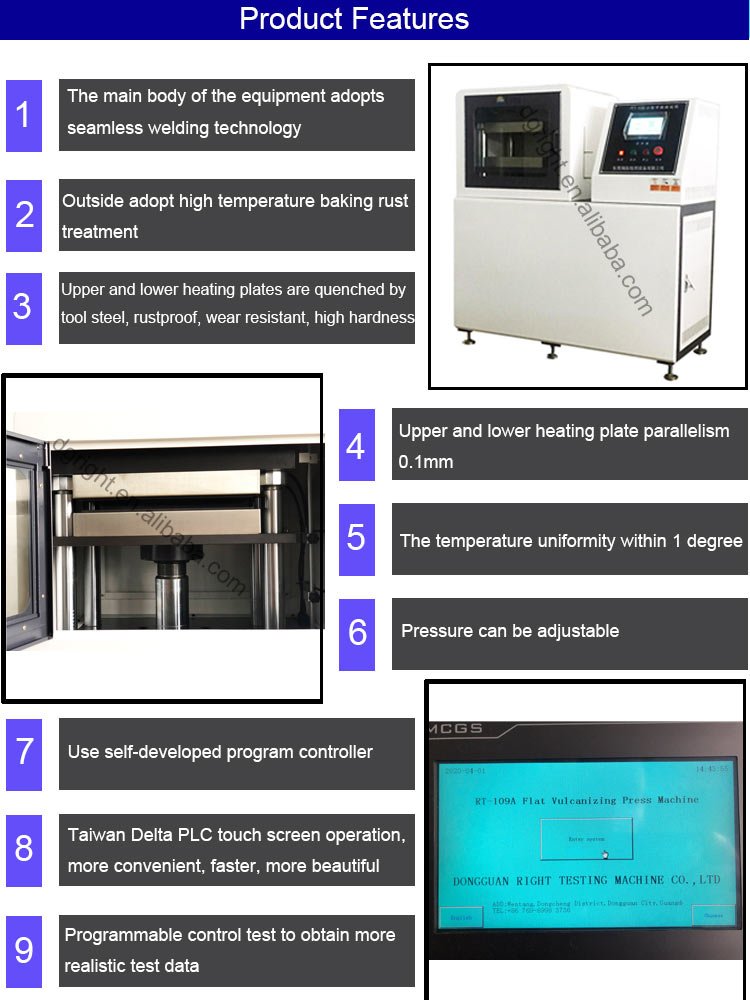

Structure and Principle：

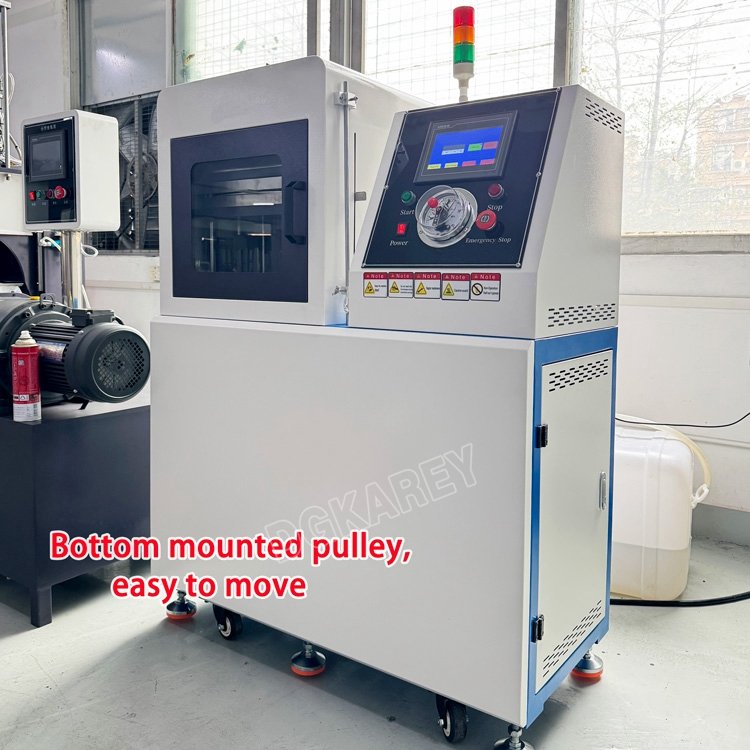

The host is composed of main machine,oil pump, control valve, electrical control.

1、The machine unit is composed of upper base, lower base, oil tank, heating plate, cylinder and piston etc. The four column can support 25T tensile force, and slide way for heating plate up and down.

2、Oil pump unit: low pressure gear pump and high pressure piston pump are driven by two motors, separately supply oil to cylinder by one-way valve.

3、Control valve unit is composed of manual drain valve set on hydraulic station and YX-150 electro connecting pressure gauge, controlling heating plate doing the up-down movement.

Operating principle of hydraulic system：

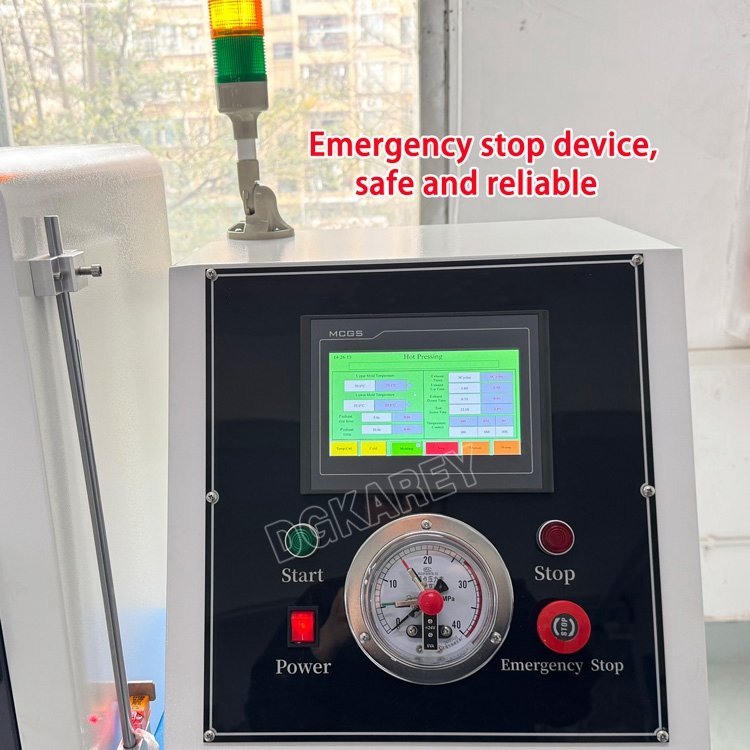

Press turn on button,motor drive gear pump and high pressure gear pump to run( Direction of rotation of pump should be same as direction of arrows,oil filer-gear pump-overflow valve-check valve-at this time, the hydraulic oil from cylinder into oil filer-gear pump-remote relief valve-check valve-Oil cylinder rise rapidly,flow decrease, the pressure of low pressure overflow valve and remote pressure regulating valve system showed by the black needle of  electro connecting pressure gauge. The red needle of electro connecting gauge set to keeping pressure 16Mpa, another one green needle set to 13Mpa. When the black needle and red needle overlap, the pressure gauge will give a signal to stop the motor working.Which is called holding pressure.(Noted: Vulcanizing time should be set DSJ-909 in advance), when the holding pressure time come in, will automatically alarm, at the same time,pull back the control valve handle on the hydraulic pressure station, the heating plate drop quickly, that is open mold. So a working process down. Due to there may be happen pressure reduction, the black needly overlap with green needle(that is no holding pressure),at that time, the motor will operate again,making the black needle and red needle overlap, that is automatically pressure.Automatical pressure make not effect on vulcanizing time.

Adjustment for hydraulic pressure system：

1、The adjustment of remote pressure regulating valve: This valve plays a role in adjust working pressure, so setted pressure should be a little bit higher than rated working pressure 15-15.5Mpa, the valve already be adjusted before leaving factory, the customer should not disorderly adjust. If there is any operating accident, the responsibility should be charged by yourself.

The adjustment for electro connecting pressure gauge: adjust red needle to required pressure for holding pressure.(Value: 16Mpa, total pressure of machine is 315 Ton.)

Heating system and flat heating system：

1、Electric heating

This system apply three phase four wire power supply, the machine shell should be grounding,ensure the safety, The inlet wire normally should not smaller than 4-6mm², and equipped with circuit brake protection. When power on, turn the combination switch Q on the connecting position, and then turn on SB₂ button, oil pump motor begin to work, when the flat plate increase,with pressure, until the pressure gauge connective, oil pump motor stop to operate,machine begin to vulcanization, time relay KT₁ begin in counting with Unit second. During the operating process, if drop（that is black needle leaves red needle) to green needle position, system will connect to oil pump for pressure, until achieving predetermined pressure. However, you also can pressure by manual(that is press SB₂ button), so when drop and you can pressure on time.Automatically pressure will not effect vulcanizing machine time keeper during the operating process. When vulcanization done,there will be alarm for reminding the staff of opening mold. The time of alarm is can be set by KT₁, factory setting is 10s, and customers can adjust by themselves, or press SB₁ to stop alarm.

(Attention: If there is any abnormal situation, should check the rely of electrical cabinet whether in good condition, or loose, or drop out? When emergency situation happen, press SB₁ stop button, the oil pump will stop operating.)
