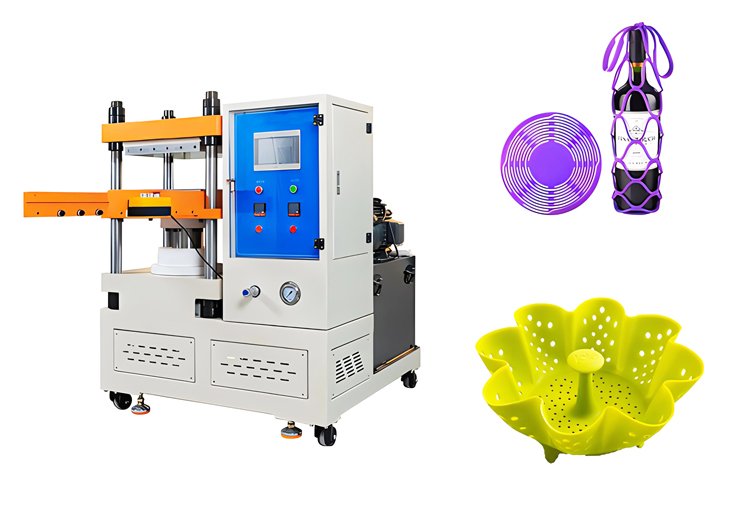

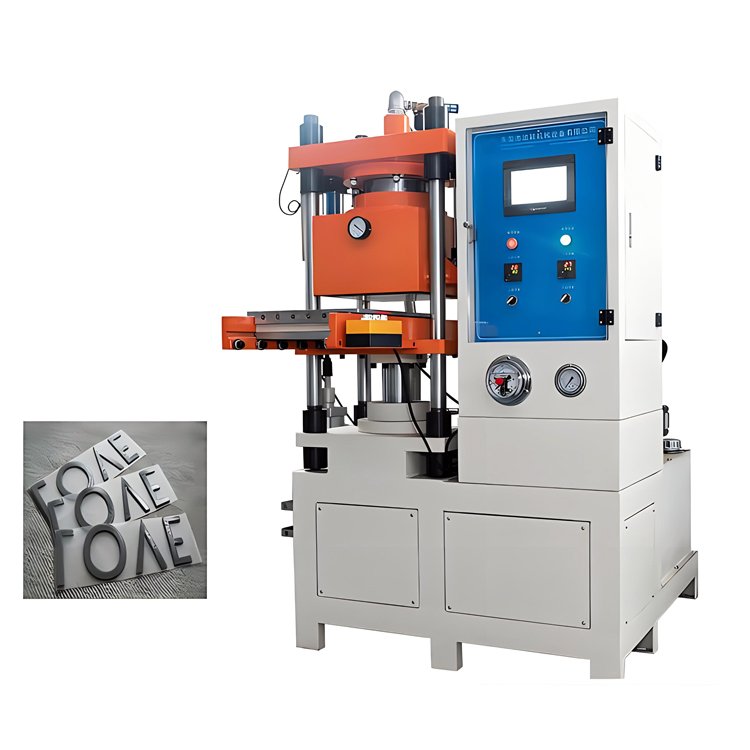

KR‑109F Vacuum‑Assisted Silicone Compression‑Curing Press
Vacuum Vulcanizing Press Machine For Silicone Products Production Line
Product Details：
Dongguan KAREY Instrument Co., Ltd. is mainly engaged in PVC drop molding logo production line, PVC shoe sole automatic assembly line, automatic dispensing machine, PVC drop molding supporting equipment, KPU shoe upper embossing equipment, liquid silicone embossing machine, solid silicone molding machine, silicone heat transfer machine, silicone coating machine, silicone printing machine, webbing embossing machine, webbing pre-shrinking machine, laser machine, intelligent flavor and fragrance formulation machine, PVC raw material, silicone raw material, KPU material, color paste, etc. raw materials, silicone raw materials, KPU materials, color paste, etc., providing one-stop solutions for customers.
Product Introduction
Core Product Strengths
-
Integrated Vacuum Evacuation System for Flawless Silicone Parts
Built-in high-efficiency vacuum assembly with adjustable negative pressure parameters. Before full mold locking, the machine automatically pumps out air trapped inside mold cavities and silicone raw materials, thoroughly erasing bubble defects common on complex-shaped silicone goods. Finished products feature smooth surfaces, dense texture and consistent dimensional stability.
-
Premium Hydraulic Drive Assembly for Stable Clamping Force
Adopts international standard hydraulic cylinders, solenoid valves and oil circulation components with strict quality screening. Multiple tonnage options from 25T to 100T are available to fit different mold sizes and silicone material hardness. Constant pressure holding function maintains steady compression force throughout the entire curing cycle without pressure drift.
-

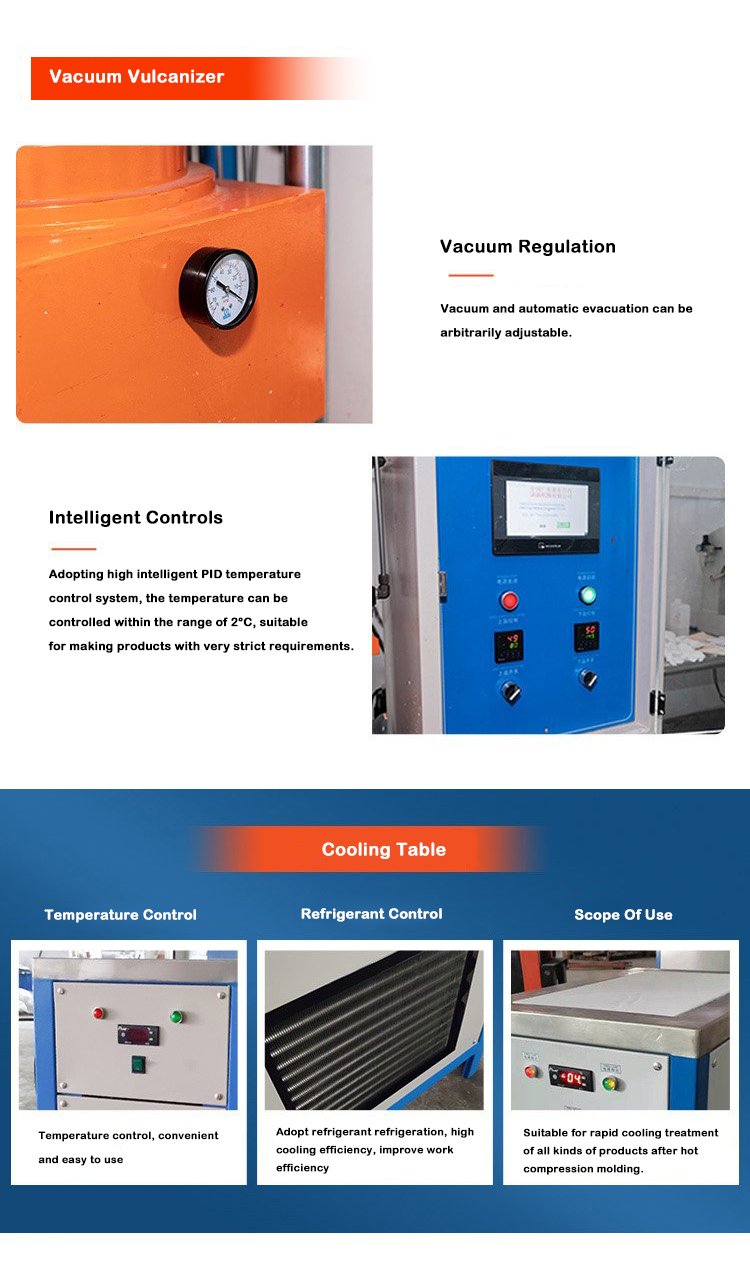

PLC Touch Full-Automatic Operation Logic
Large color HMI touchscreen visualizes all production parameters, including vacuum pumping times, mold opening/closing speed, curing duration and heating temperature. All process values can be freely saved into independent recipe groups for one-click recall when switching silicone formulas. The auto sliding worktable design enables safe, convenient mold loading and unloading.
-
Independent Upper & Lower Double Heating Plates
Dual-layer heating plates adopt intelligent PID constant temperature regulation, with temperature deviation controlled within ±2℃ across the whole plate surface. Operators set separate heating values for top and bottom plates according to silicone curing requirements, preventing uneven vulcanization and over-curing on thin/thick product areas.
-
High Production Efficiency & Low Daily Maintenance
Complete automatic workflow: feeding → vacuum exhaust → pressurized curing → auto mold open. No constant manual supervision required. Standardized hydraulic and electrical layout simplifies daily cleaning and component replacement; wear-resistant core parts extend long-term service life and lower factory maintenance costs.
-

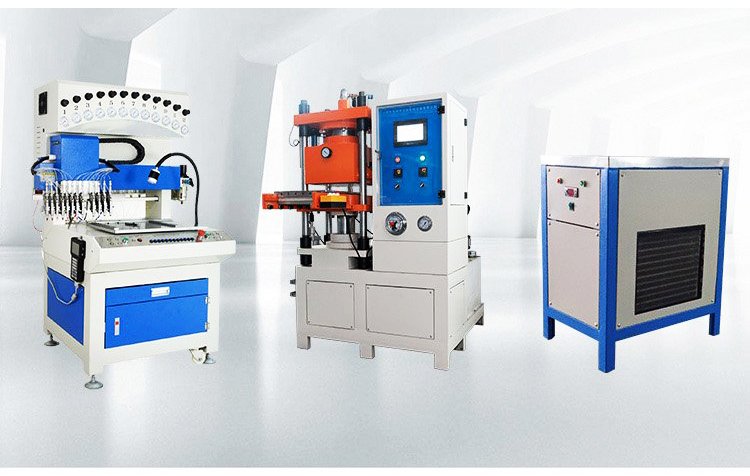

Complete Supporting Production Matching Line

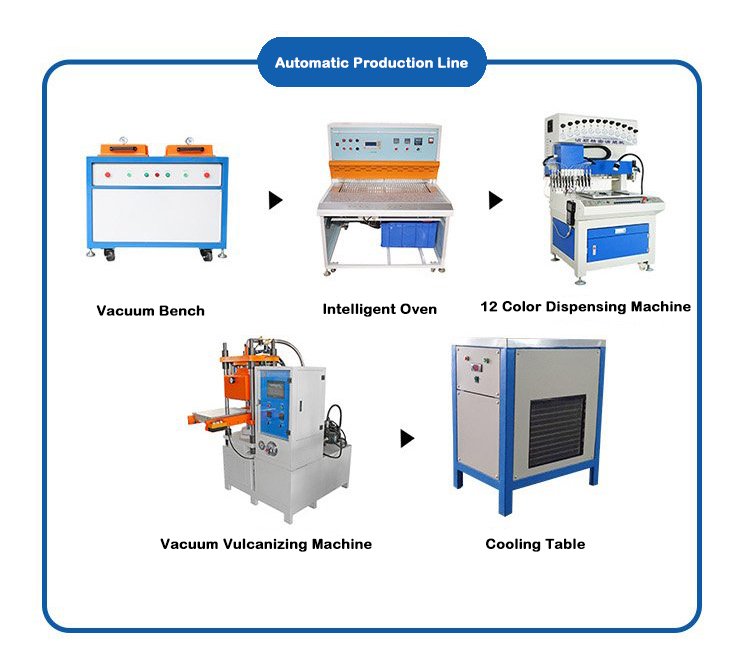

Can be combined with KR-135 twelve-color automatic dispenser and KR-145 rapid cooling bench to build an integrated silicone production line. The dispenser realizes precise color glue feeding with 0.01mm positioning accuracy, while the cooling table shortens post-mold product shaping time and improves output efficiency.
Standard Technical Specifications
| Parameter Item | KR-109F Standard Data |
|---|---|
| Model Code | KR-109F |
| Rated Input Power | 10kW, AC380V |
| Standard Hot Plate Size | 300 × 300 mm |
| Optional Clamping Tonnage | 25T / 50T / 80T / 100T |
| Max Plunger Stroke | 250 mm |
| Overall Outer Dimension | 1000 × 1100 × 1700 mm |
| Complete Machine Net Weight | 1100 KG |
Standard Automated Production Process
- Mold Preparation: Install custom silicone mold on the automatic sliding table and lock the positioning fixtures.
- Parameter Setting: On the touch panel, set target temperature, vacuum cycles, curing time and clamping tonnage based on silicone material characteristics.

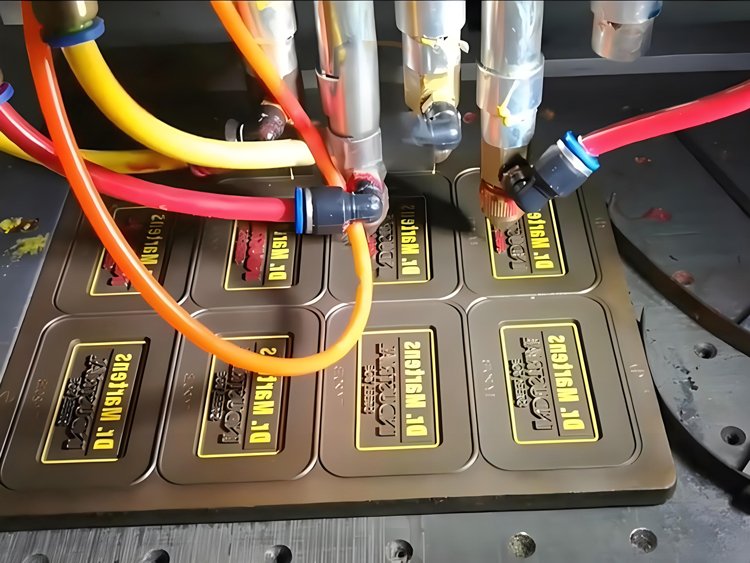

- Raw Material Loading: Place weighed solid silicone or dispense liquid color glue into mold cavities via the matching dispensing machine.
- Automatic Vacuum & Compression: The sliding table feeds the mold into the heating zone; the machine initiates vacuum exhaust then locks the mold with preset pressure for timed vulcanization.
- Auto Mold Opening & Unloading: Once the curing countdown finishes, the hydraulic system automatically opens the mold and slides the worktable outward for easy finished part removal.
- Rapid Cooling Treatment: Transfer hot silicone blanks to the matched cooling bench to accelerate shaping before trimming and packaging.
Wide Range of Applicable Silicone Products

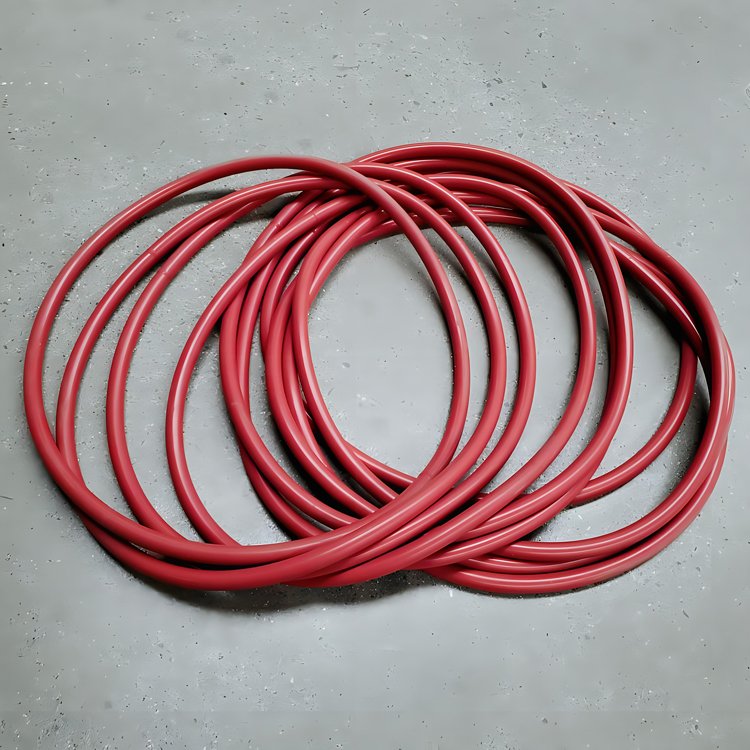

Consumer Silicone Goods
Industrial & Auto Silicone Parts
Medical & Sports Silicone Supplies
Standard Complete Delivery List
- KR-109F main vacuum vulcanizing press unit
- Full hydraulic power assembly & automatic sliding mold table
- PLC color touch control cabinet & complete electrical wiring
- Upper/lower integrated heating plate set with temperature sensors
- Vacuum pumping pipeline assembly & pressure gauge kit
- Full English & Chinese operation manual, factory inspection certificate
- Optional matching KR-135 dispenser / KR-145 cooling bench
Global After-Sales & Distributor Cooperation

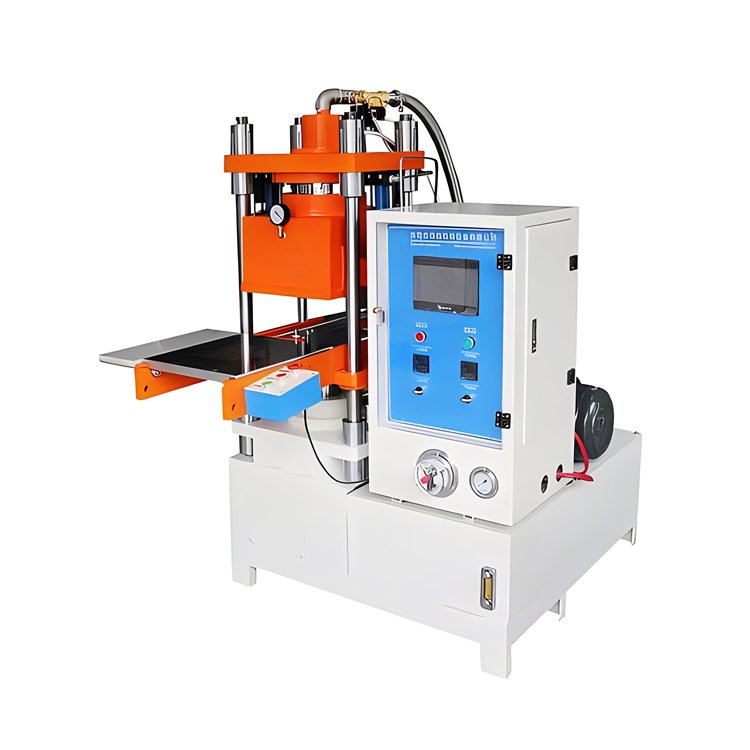

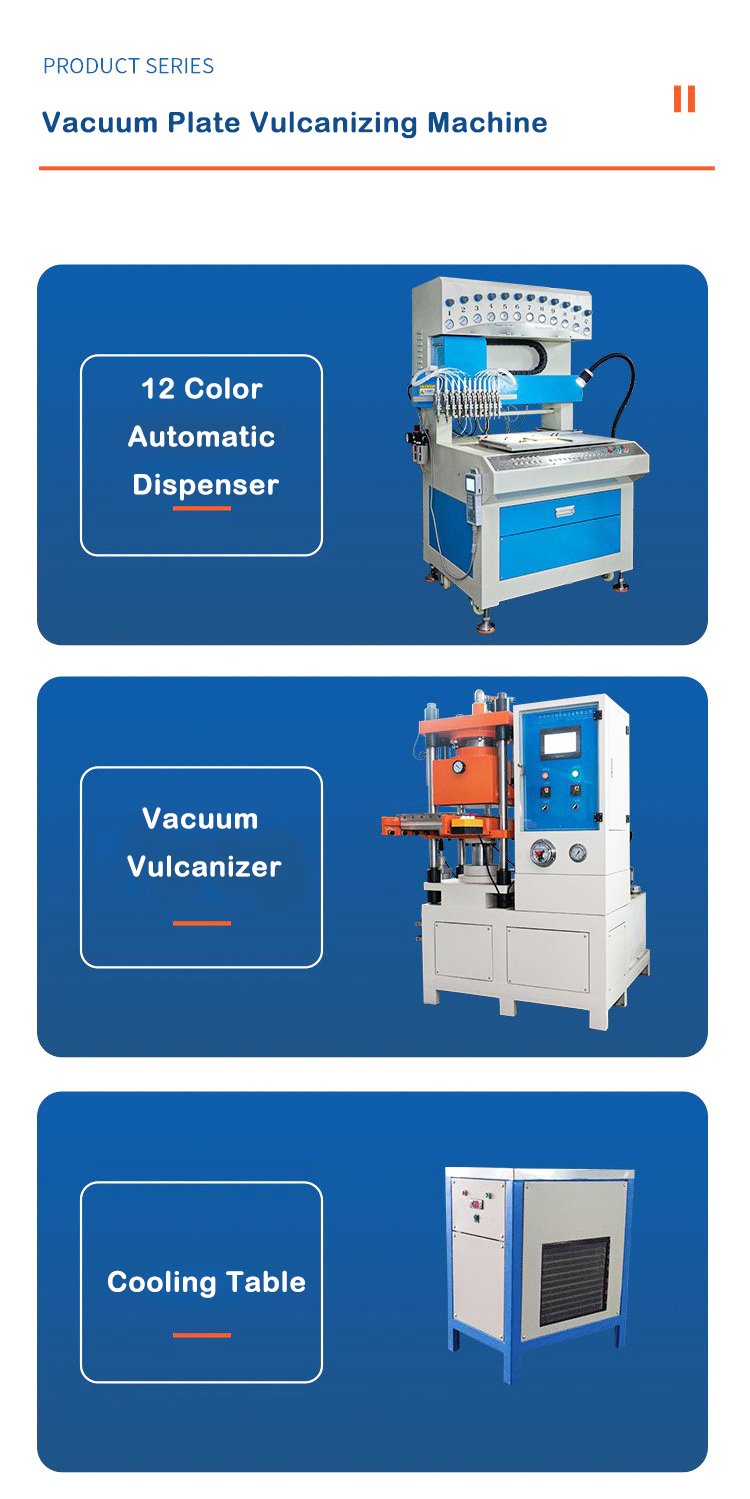

1. Vacuum Vulcanizing Press Machine
Parameters:
- Model: KR-109F
- Voltage and power: 380V/10kW
- Hot plate size: 300*300mm
- Pressure: 25T-100T
- Plunger stroke: 250mm
- Weight: 1100KG
- Machine Size: 1000*1100*1700mm

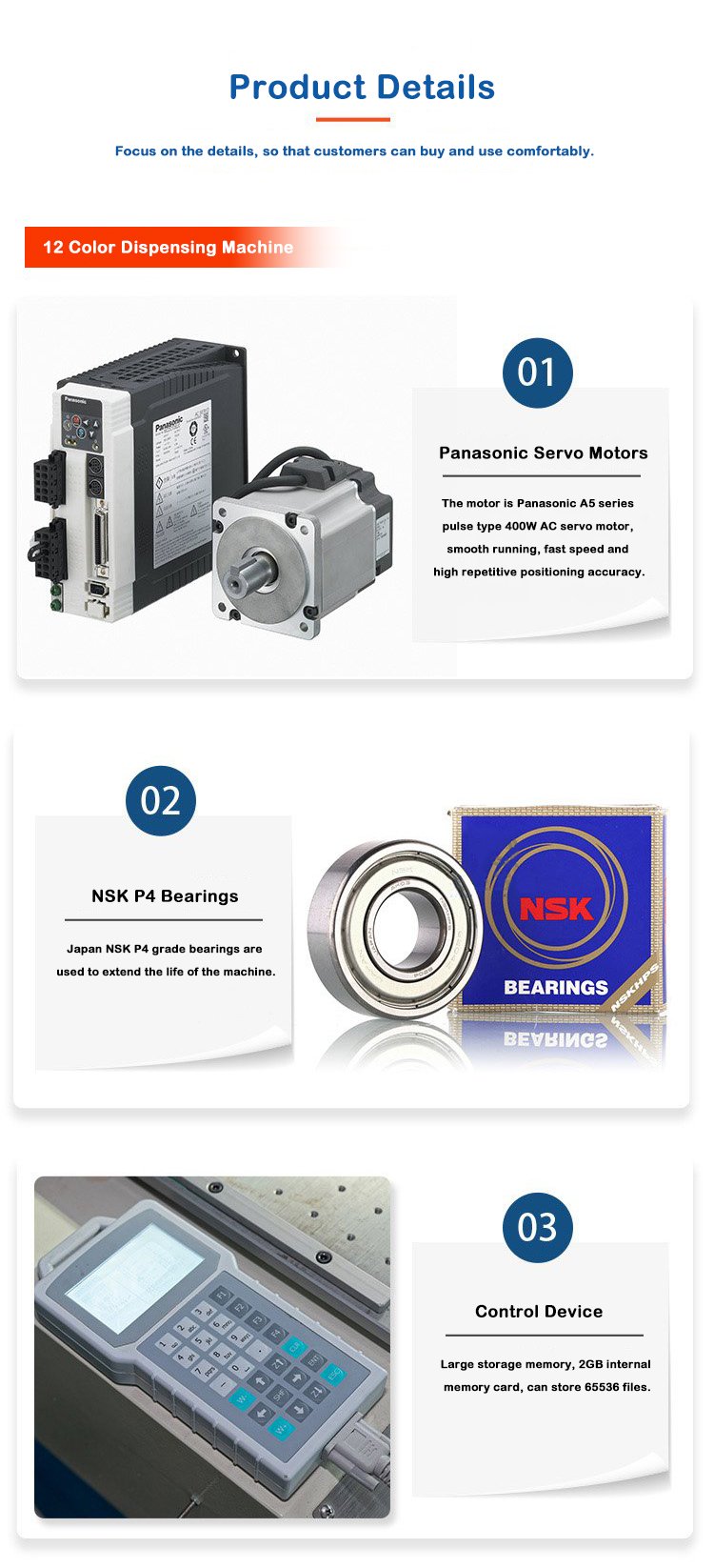

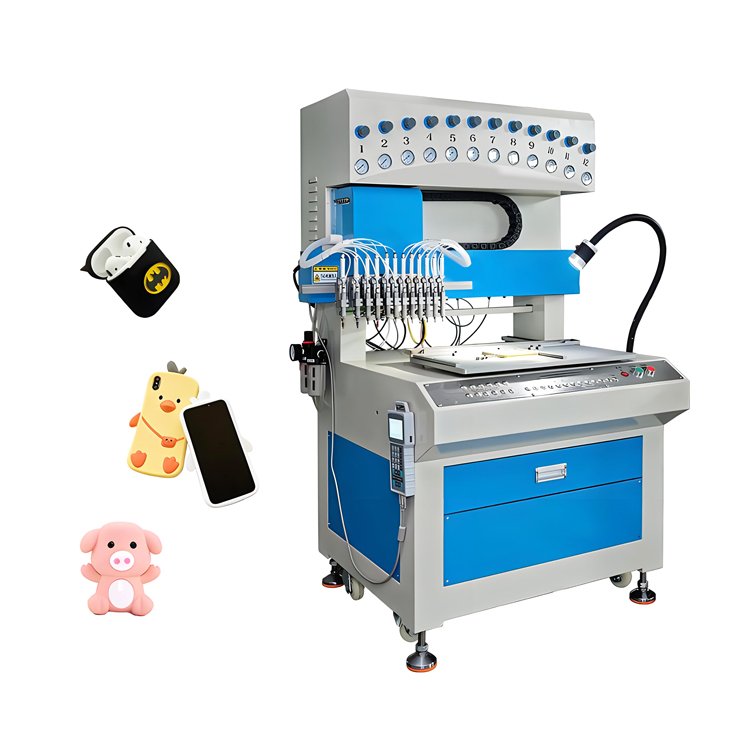

2. 12 Color Dispensing Machine
Parameters:
- Model: KR-135
- Voltage: 220V/900W
- Table size: 550*350mm
- X.Y.Z axis positioning accuracy: 0.01mm
- Air pressure: 0-6KG/CM2
- Weight: 280KG
- Machine Size: 950*900*1460mm

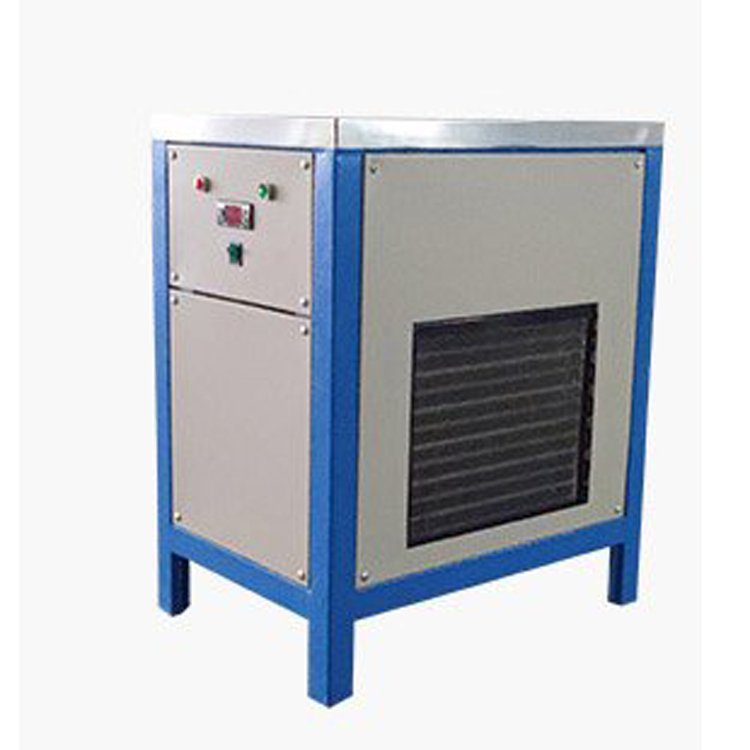

3. Cooling Table
Parameters:
Model: KR-145
Voltage and power: 380V/1HP
Power Consumption: 0.48kWh/H
Cold coal: R22
Weight: 75KG
Machine Size: 400*600*750mm
Product Details:
1、KR-109F vacuum vulcanizer adopts high-quality hydraulic accessories, cylinders, solenoid valves, to ensure the use of mechanical effect and service life;
2、Machine PLC control, automatic safety slide table control, simple operation;
3、Mechanical use of the process of emptying the number of times, molding time of various parameters arbitrarily adjustable;
4、Automatic pressure preservation, pressure preservation time is arbitrarily adjustable;
5、Up and down heating, temperature arbitrarily adjustable, intelligent control;
6、High efficiency, fast production speed.
