Product Introduction

Complete Technical Parameter Table

Core Competitive Advantages

1. Ultra-High Weighing & Density Resolution
   Equipped high-stability precision sensor with 0.005g minimum weighing reading, density resolution reaches 0.001g/cm³. Multiple capacity models from 300g to 2000g are available, covering tiny granular samples and large solid workpieces of different industries, with stable data repeatability for long-time continuous batch testing.

   2.Integrated Automatic Compensation Function

   Dual built-in compensation modules for liquid temperature and special testing solvents. Users input medium density value on the touch keypad, the host automatically calibrates buoyancy error caused by temperature fluctuation or non-water liquid, effectively improving testing accuracy for oily, alcohol-soluble samples.

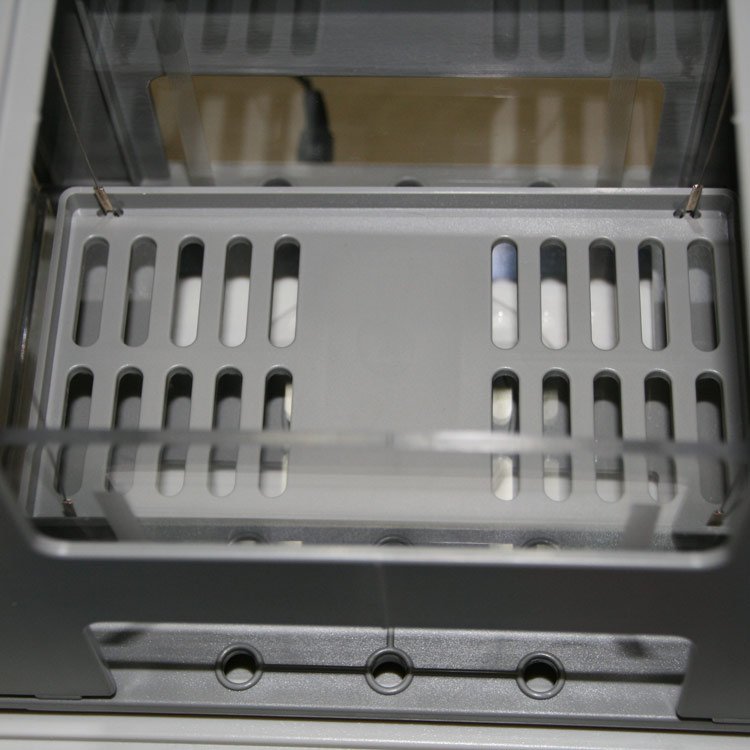

   3.Transparent Anti-Corrosion Testing Sink & Windproof Bracket

   Whole testing chamber is injection-molded with imported high-hardness PC material, anti-drop, acid and alkali resistant, clear visual observation of sample sinking state. Matching stainless steel suspension wire avoids contact with sink wall during weighing, preventing extra buoyancy interference; detachable full-enclosure windproof cover eliminates airflow weighing drift in open lab environments.

   4.Multi-Material One-Click Intelligent Testing Modes

   Pre-set dedicated test programs for solid blocks, plastic pellets, foamed lightweight materials, metal powder and rubber products. One-key switching between test modes without complicated parameter resetting; directly output core indexes including density, specific gravity, DIN abrasion volume and expansion rate for rubber formulations.

   5.Complete Safety & Data Output Design

   Support automatic zero tracking, overload protection and low-buzz abnormal alarm prompts. Standard reserved RS232 data transmission interface, compatible with external printers and computer terminals to export test records, facilitating laboratory report filing and batch data comparison.

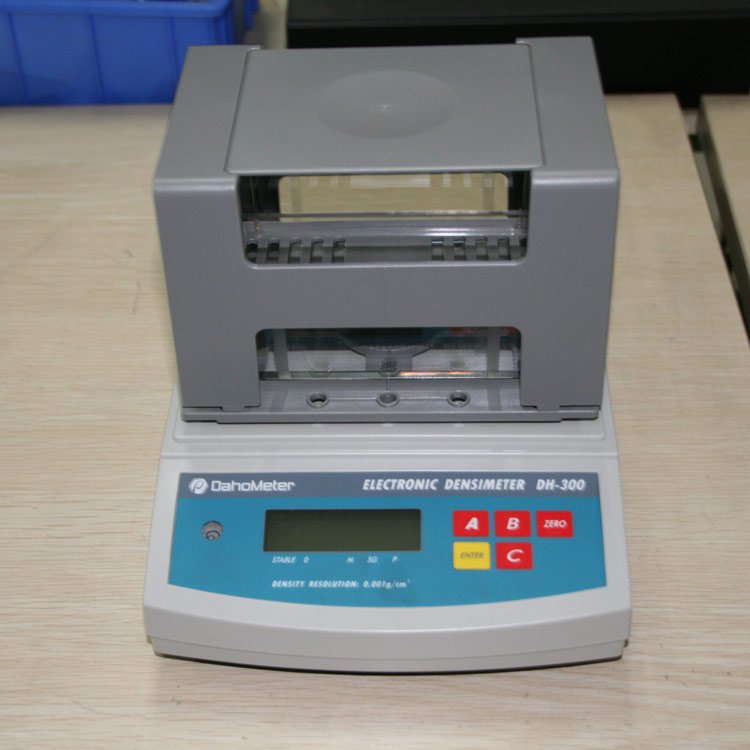

   6.Compact All-In-One Bench Layout

   Integrated weighing mainframe and testing rack structure, small floor footprint suitable for narrow QC countertops. All matching accessories (standard calibration weight, sample hanging basket, liquid measuring tools) are fully equipped in factory delivery, no extra auxiliary equipment required for immediate use after unpacking.

Standard Full Test Operation Steps

1. Equipment Calibration
   Power on and preheat for 5 minutes, place matched standard calibration weight on the weighing platform to complete one-key automatic calibration, eliminate long-term weighing deviation.
2. Medium Temperature Recording
   Inject testing liquid into transparent sink, measure liquid real temperature with matched thermometer, input temperature value into the host to activate temperature compensation function.
3. Air Weight Measurement
   Place clean and dry sample on upper hanging basket, wait for stable weighing value, press storage button to record sample weight in air.
4. Liquid Buoyancy Measurement
   Move sample into the liquid suspension basket fully immersed without bubble adhesion, wait for data stabilization and store liquid weight reading.
5. Automatic Density Calculation
   The internal microcomputer instantly computes and displays sample density, specific gravity and related material characteristic values on digital screen, one-click save test data.
6. Sample Takeout & Daily Maintenance
   Take out sample and wipe hanging basket residual liquid, empty the sink and dry internal parts after daily testing to avoid scale and corrosion affecting subsequent test precision.
