Product Overview

Core Product Competitive Advantages

1. Multi-Standard Interchangeable Alloy Cutters

   Comes with A/B/C three groups of hard alloy notch cutters, unified 45° notch angle with different root radii to meet various standard requirements:

• Type A: Root radius 0.25±0.025mm for rigid engineering plastics
• Type B: Root radius 1.0±0.025mm for medium-toughness polyolefin materials
• Type C: Ultra-fine 0.1mm small fillet cutter for thin film and low-modulus composite sheets

  All cutter heads adopt wear-resistant alloy material, long service life without frequent replacement.

2. High-Efficient Continuous Batch Processing

   Linear sliding fixture base supports simultaneous clamping of multiple standard test bars, stable 30mm/min constant feed speed, processing over 100 specimens per 10 minutes. Uniform milling feed eliminates uneven notch depth from manual pushing, greatly improving laboratory daily sample preparation efficiency.

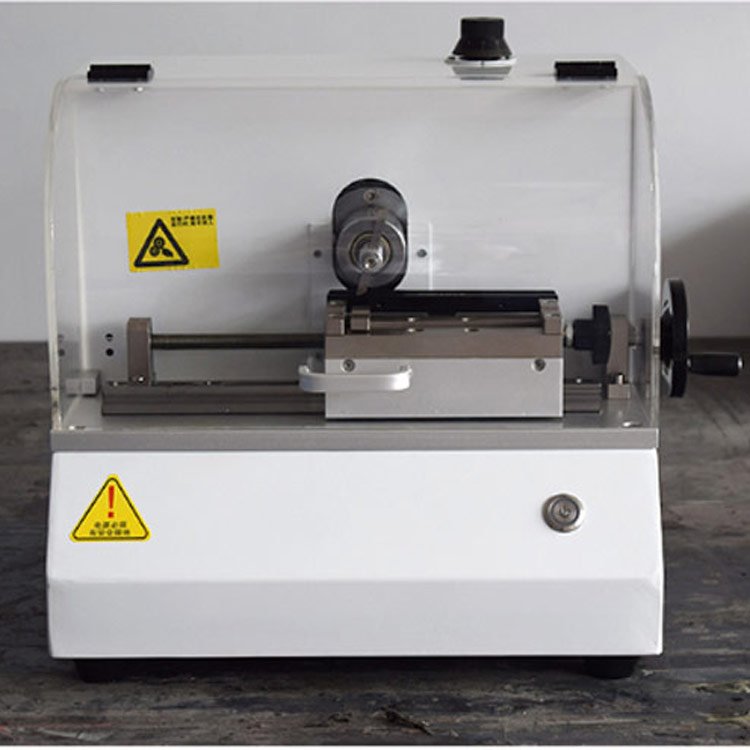

3. Fully Enclosed Safety Protective Structure

   Transparent integral acrylic safety cover completely wraps the milling area; the machine automatically stops cutting once the cover is opened to prevent accidental contact with high-speed rotating cutter. Internal independent debris storage tank collects plastic scraps, keeping the lab countertop clean and reducing cleaning frequency.

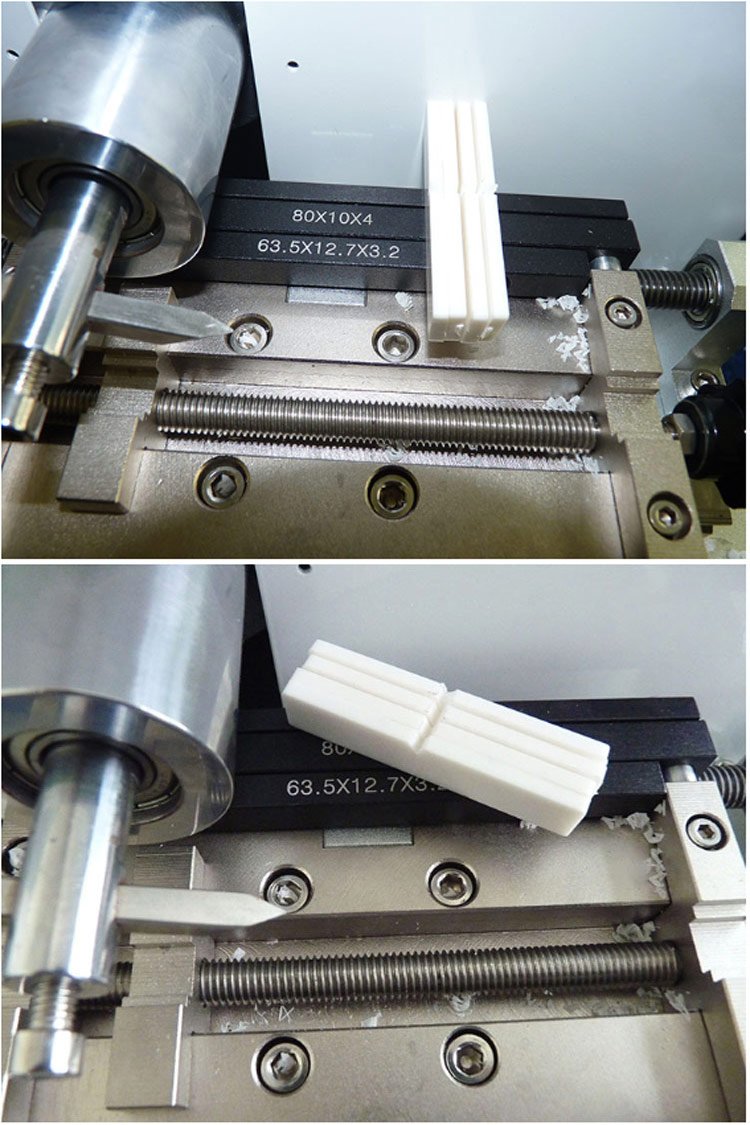

4. Precise Adjustable Feed Stroke & Clamping System

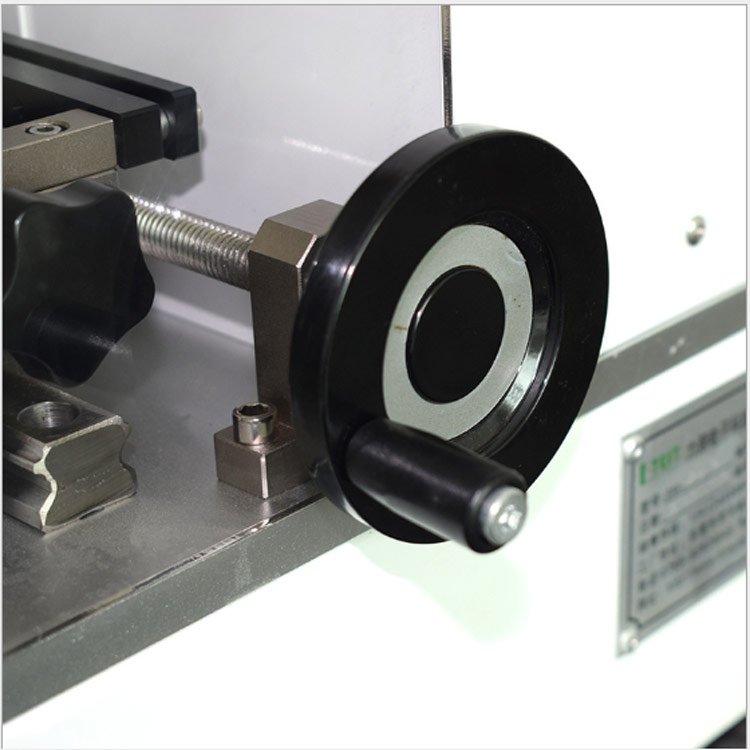

   Handwheel-driven fine-tuning clamping mechanism fits standard test bar sizes of 63.5mm and 80mm, adjustable feed travel range up to 90mm, notch cutting depth stepless adjustable within 0~2.5mm. Thickened stainless work platform avoids vibration deformation during long-term high-frequency cutting.

5. Compact Desktop Integrated Layout

   Small all-in-one bench design occupies minimal lab counter space, overall lightweight structure easy to move between testing stations. Single-phase 220V power supply, no special industrial wiring needed, equipped overload power-off protection to prevent motor burnout under abnormal operation.

6. Simple Operation With Low Learning Cost

   Forward/backward rotary control knob plus speed regulation dial, intuitive operation without complex program setting. New operators can master full cutting workflow within 3 minutes, suitable for mass repetitive sample making in factory QC

Complete Technical Parameter Table

Standard Complete Test Sample Making Workflow

1. Cutter Installation & Equipment Check
   Select matched A/B/C cutter head according test standard, lock the spindle; close safety cover and power on, idle run 30 seconds to check cutter rotation stability.
2. Specimen Clamping Positioning
   Cut raw plastic slabs into standard impact test strips, place multiple samples side by side on the sliding fixture, rotate handwheel to lock tightly without shaking during milling.
3. Parameter Adjustment
   Turn speed dial to set feed speed, adjust stop block to control target notch depth, confirm notch position aligns with sample central axis.
4. Automatic Milling Cutting
   Turn control knob to forward feed; the cutter automatically machines standard V-notch, feed stops after reaching preset travel then reset backward.

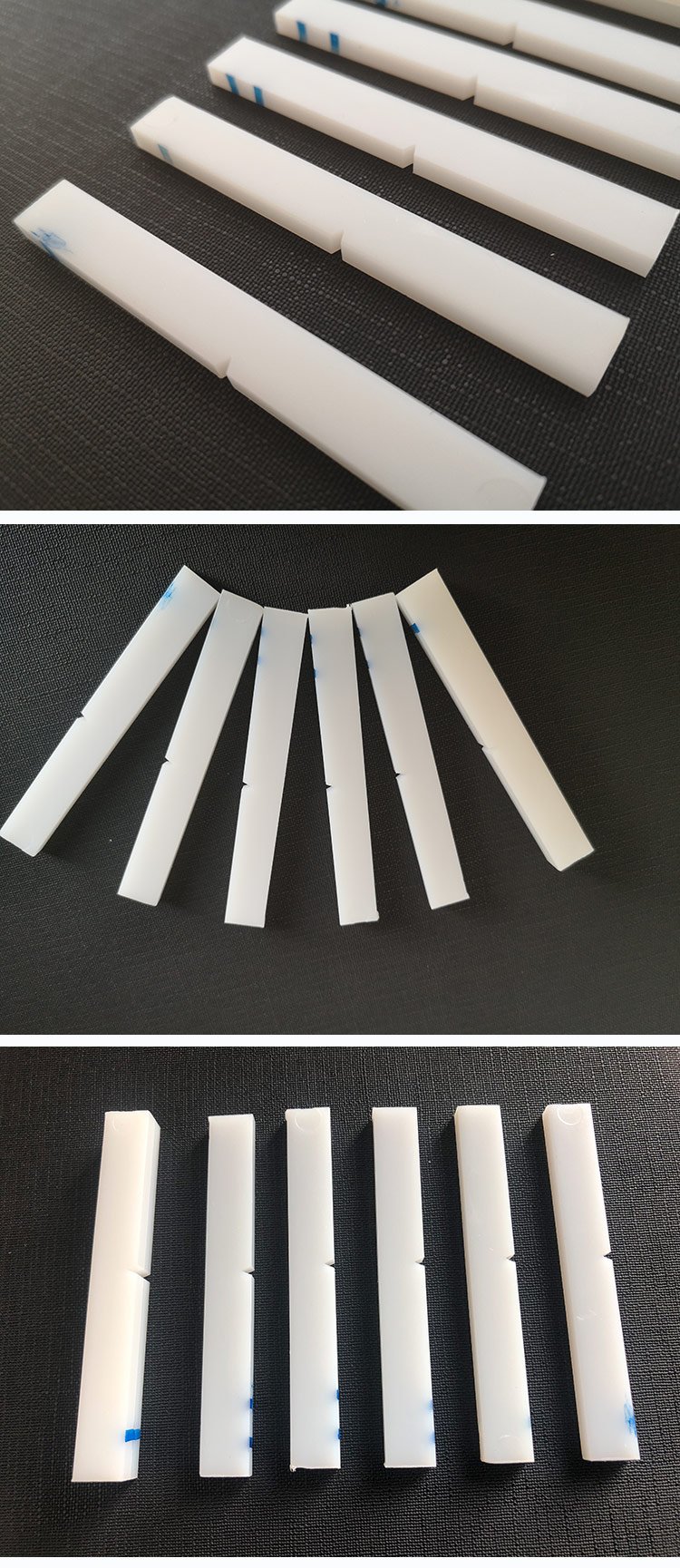

5. Specimen Inspection & Scrap Cleaning
   Take out finished samples to check notch angle and root radius consistency; open the cover to clear plastic debris in the collection tank after batch processing.
6. Power Off Storage
   Cut off main power supply, wipe cutter and fixture to remove residual plastic chips, store machine in dust-proof environment.

Wide Industrial Application Scenarios

Modified Plastic & Masterbatch Enterprises

Wire & Cable Material Labs

New Energy Composite R&D Institutes

University Material Teaching Labs

Third-Party Inspection Institutions

Standard Factory Delivery Kit

1. KR-709 automatic V-notch milling machine main unit
2. Type A/B/C three sets of hard alloy notch cutter heads
3. Multi-size specimen clamping fixture assembly & fine-tuning handwheel
4. Transparent safety protective cover and debris storage drawer
5. Speed regulation control panel and overload protection circuit
6. Specimen auxiliary cutting ruler and cleaning brush set
7. Multilingual operation manual aligned with ISO & GB impact standards
8. Factory dimensional calibration inspection certificate
