Product Overview

Full Technical Parameter Specification Table

Standard Voltage Matching Parameter Reference Table

Core Product Advantages

1. Dual AC/DC Wide-Range Stepless Voltage Regulation

   Integrated high-power 6000W high-voltage power supply module, AC output 0~6000V, DC output 0~8400V with continuous stepless adjustment. Built-in multi-grade matching series resistance circuit, automatically switching resistance value corresponding to test voltage segment per standard requirements, eliminating manual wiring errors and improving test repeatability of parallel samples.
2. High-Precision Constant-Flow Contamination Liquid Delivery System
   Digital quantitative liquid pump controls dripping flow between 0.075~1.5ml/min, flow control accuracy up to ±0.5%. Stable uniform droplet output avoids inconsistent liquid supply causing deviation of tracking failure time; detachable drip head structure facilitates daily cleaning of residual conductive liquid to prevent pipeline blockage and corrosion.
3. All-In-One Touch Intelligent Control Logic

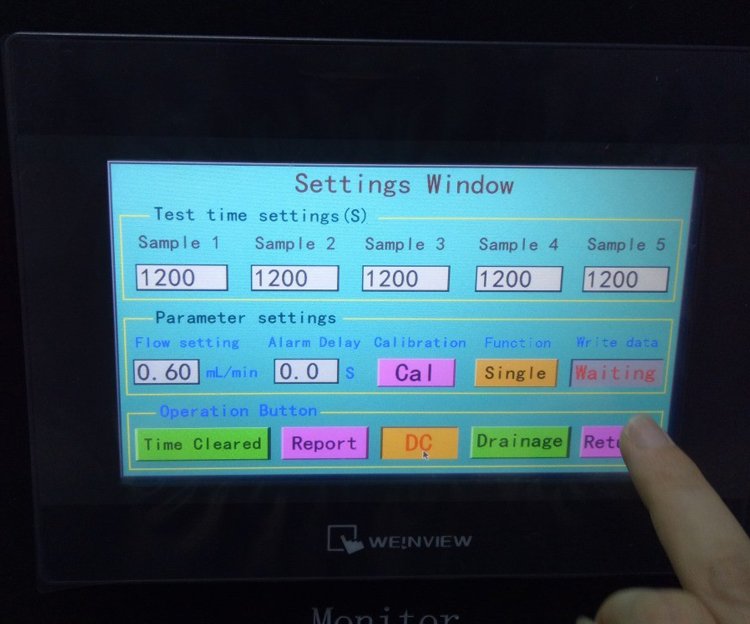

   7-inch bilingual industrial touchscreen integrates all parameter setting functions, support 0~10 hours programmable timing cycle. Real-time synchronous display of running voltage, liquid flow, residual test time and leakage current data; automatic alarm and high-voltage cutoff protection once sample tracking breakdown occurs, no manual monitoring required for long unattended testing.
4. Standard Stainless Steel Electrode Assembly

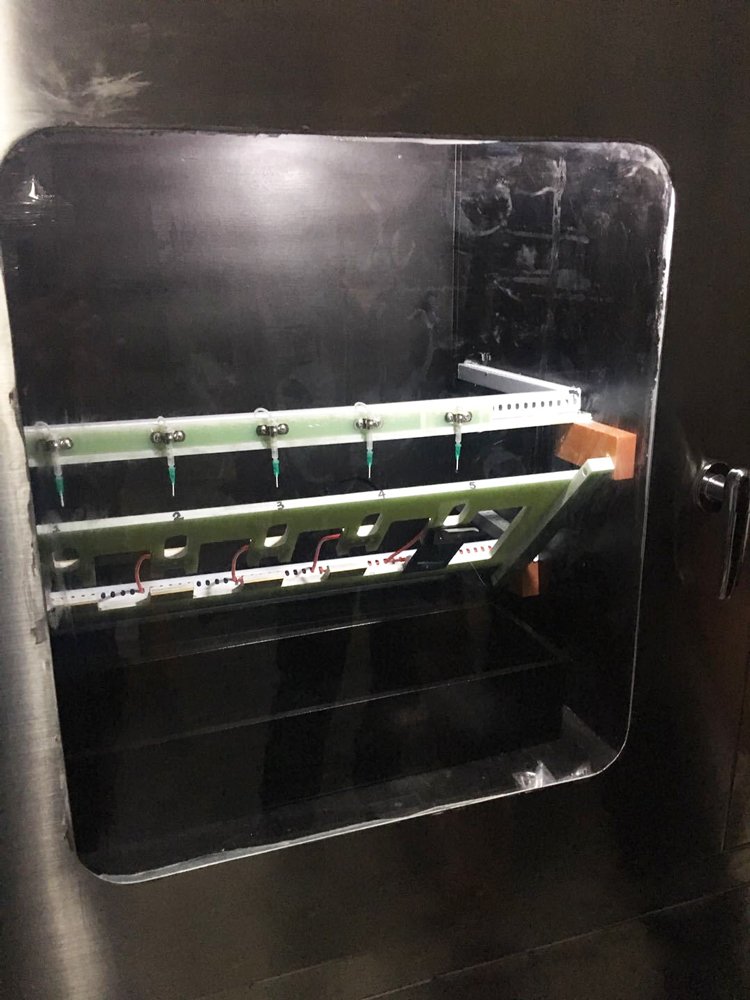

   0.5mm thick standardized stainless electrode set, vertical gap fixed at 50±0.1mm fully complying with dimensional tolerance of international standards. Smooth electrode surface avoids electric discharge tip effect, ensuring stable electric field distribution on the sample surface during long-cycle tracking tests.
5. Closed Safety Test Chamber Structure

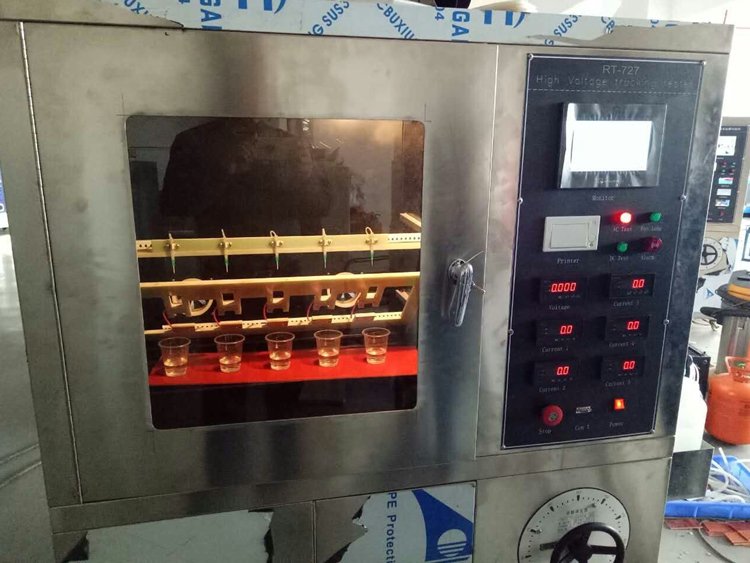

   Independent sealed test cavity with transparent observation window, full interlock safety design: high-voltage circuit automatically locks when the chamber door is opened to prevent accidental electric shock. Internal ventilation exhaust structure discharges corrosive mist generated during testing, protecting operators and extending machine service life.
6. Complete Standard Parameter Matching Database
   Pre-stored standard configuration formulas for each voltage segment on the control terminal, including recommended test voltage, matched series resistance and corresponding contaminant liquid flow rate. Operators call one-click preset schemes without repeated manual lookup of standard tables, greatly improving laboratory daily inspection efficiency.

Standard Complete Test Operating Process

1. Pre-Equipment Parameter Configuration

   Power on the touch control system, call the matching standard scheme according to the target test voltage; set test duration, calibrate contamination liquid flow rate, and check whether the interlock protection function of the test chamber door is normal.
2. Specimen Installation & Electrode Calibration
   Clean the surface of the insulating test sample, fix it on the inclined sample bracket inside the cavity, adjust the upper and lower electrodes to keep the standard 50mm gap, and lock the chamber door tightly to trigger the high-voltage enable circuit.
3. Contamination Liquid Pipeline Pre-Filling
   Start the liquid pump to pre-circulate conductive liquid, confirm uniform continuous droplet outflow at the drip head without interruption or uneven flow, then reset the test timing to zero.
4. Automatic High-Voltage Tracking Test
   Activate the high-voltage output program; the equipment continuously applies set AC/DC voltage while dripping standard conductive liquid onto the sample surface. The system monitors real-time leakage current and records the time point of tracking breakdown automatically.
5. Test Data Storage & Result Recording
   Once carbon tracking breakdown triggers automatic power-off alarm, the touchscreen saves the full-process test data including breakdown time, operating voltage and flow parameters, which can be exported for laboratory report compilation.
6. Post-Test Cleaning & Equipment Shutdown
   Turn off high-voltage output first, open the chamber door after voltage discharge is completed, take out the tested sample, clean residual conductive liquid inside the cavity and drip pipeline, cut off the main power supply after ventilation and drying.

Wide Industrial Application Scenarios

Household Appliance Manufacturing

New Energy Power Industry

Power Composite Insulator Factories

Automotive Electronic R&D Labs

Electrical & Low-Voltage Component Enterprises

Third-Party Safety Certification Institutions

Standard Factory Delivery Kit

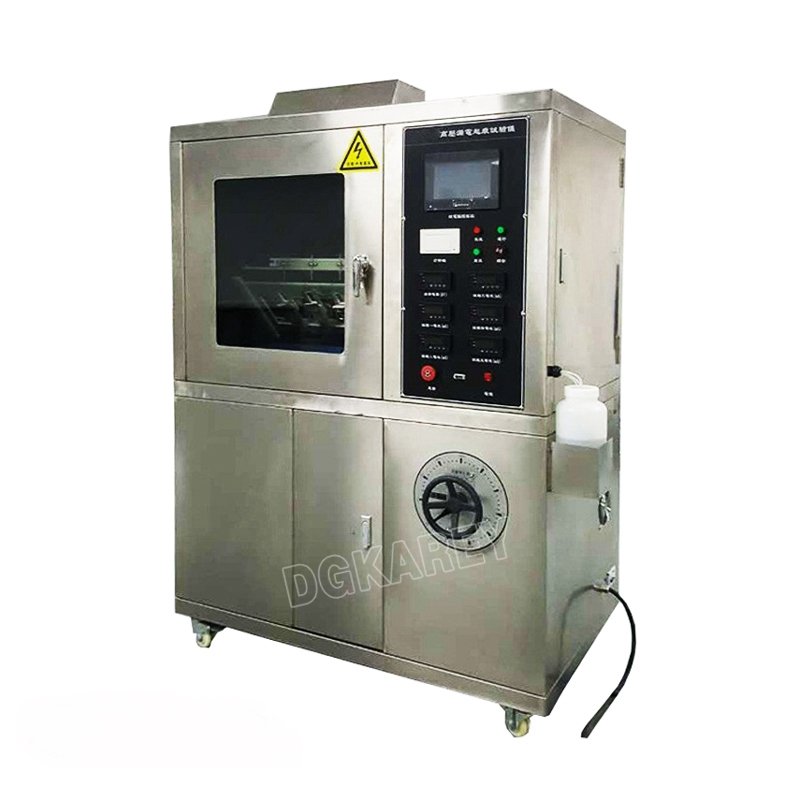

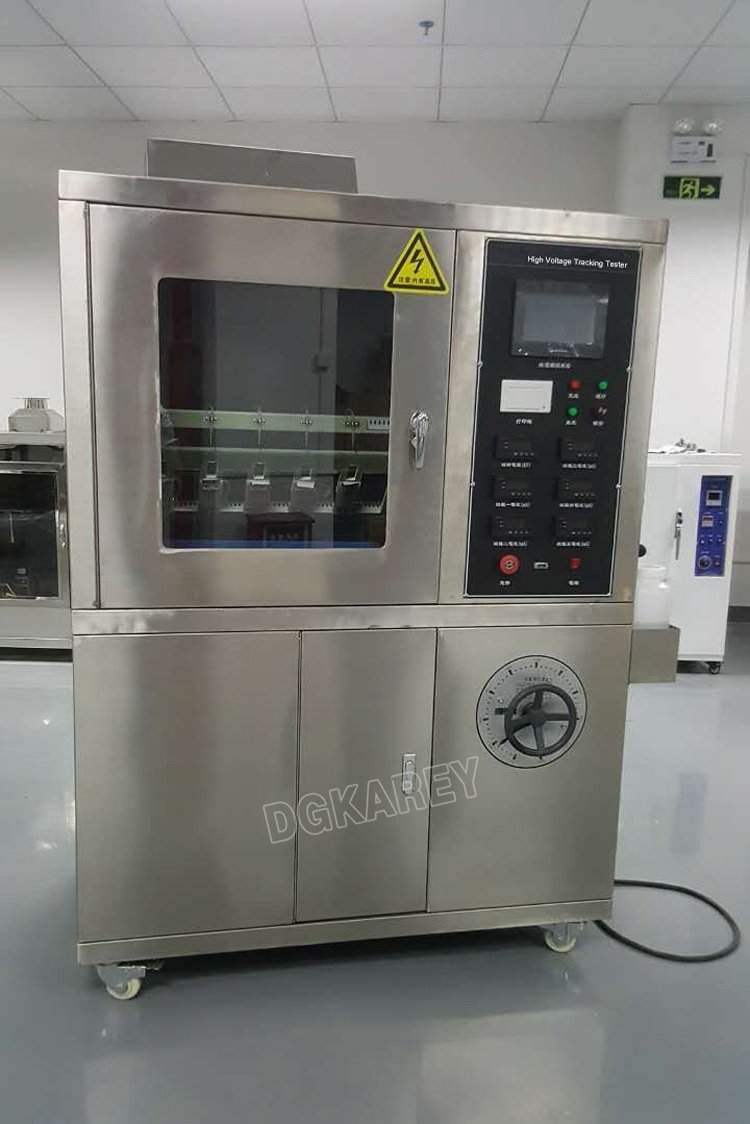

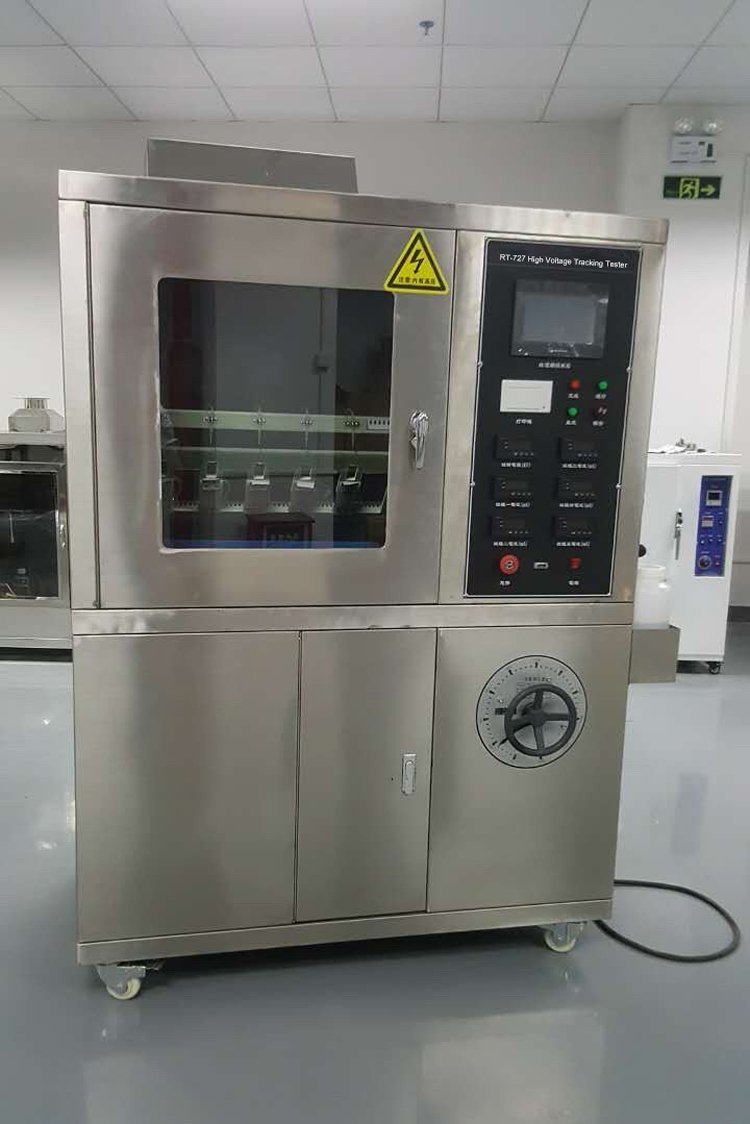

1. KR-727 main high-voltage tracking tester integrated cabinet
2. Complete set of standard stainless steel electrode assembly and sample inclined bracket
3. Precision constant-flow contamination liquid supply pump + liquid storage tank set
4. Siemens PLC control module + 7-inch touch operation terminal
5. Multi-grade series resistance switching circuit assembly
6. Closed transparent safety test chamber and internal ventilation exhaust system
7. Multilingual operation manual aligned with IEC & GB industry standards
8. Factory high-voltage calibration inspection qualification certificate
