Product Overview

The KR‑405 rotary‑type transport‑simulation vibration test bench reproduces real‑world jolting and shaking that goods endure during road and sea shipment. Built around eccentric‑bearing mechanical architecture, the platform generates an elliptical multi‑directional motion trace to replicate vehicle‑transit vibration conditions. By tuning rotary speed, users mimic different road‑surface and vessel‑motion scenarios to assess whether packaged goods can withstand typical logistical stresses.

This laboratory‑grade testing platform complies with GB/T 4857.7‑92 and ISO 2247 specifications. It is widely adopted by consumer‑goods factories, electronics manufacturers, ceramic‑goods plants, toy producers, packaging‑R&D labs and accredited third‑party testing institutes for pre‑shipment packaging validation and product‑reliability verification. Three size variants (KR‑405‑I / KR‑405‑II / KR‑405‑III) are offered to cover different specimen footprint and weight demands.

Core Product Competitive Advantages

1. Eccentric‑Bearing Rotary‑Vibration Mechanism (Carousel‑Style Motion) Precision‑machined eccentric‑bearing assembly delivers stable elliptical orbit for the full‑size test platform, producing combined up‑down and fore‑aft shaking that closely matches actual truck and ocean‑freight transit conditions. Vibration parameters remain consistent across the entire table surface without local dead zones.
2. Low‑Noise Synchronous‑Belt Transmission & DC Speed Regulation Adopts high‑efficiency synchronous‑belt drive to minimise running acoustic noise for laboratory environments. DC‑motor speed‑control enables stepless adjustment of vibration frequency from 2 Hz to 5 Hz. Output acceleration is stabilised at 1.25 g for repeatable comparative‑test outcomes.

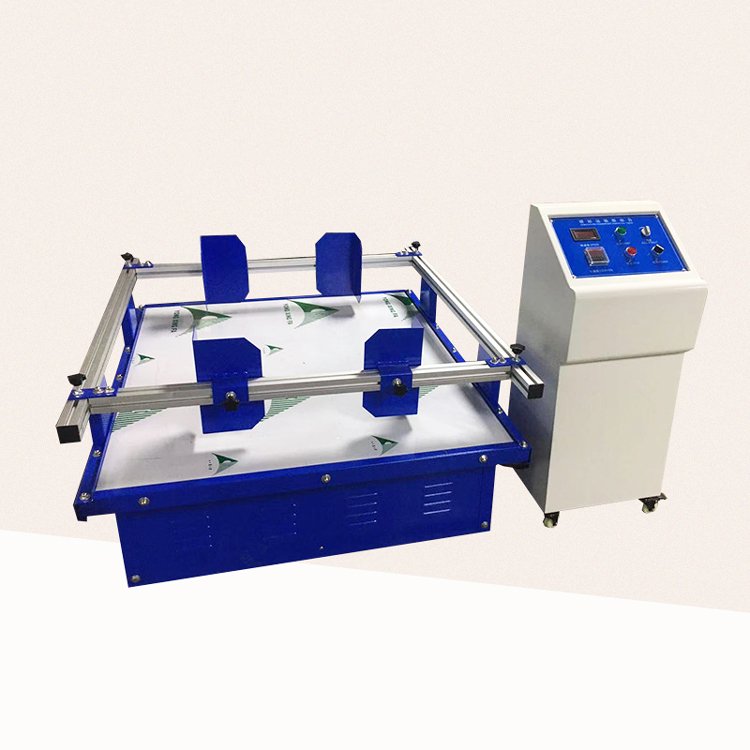

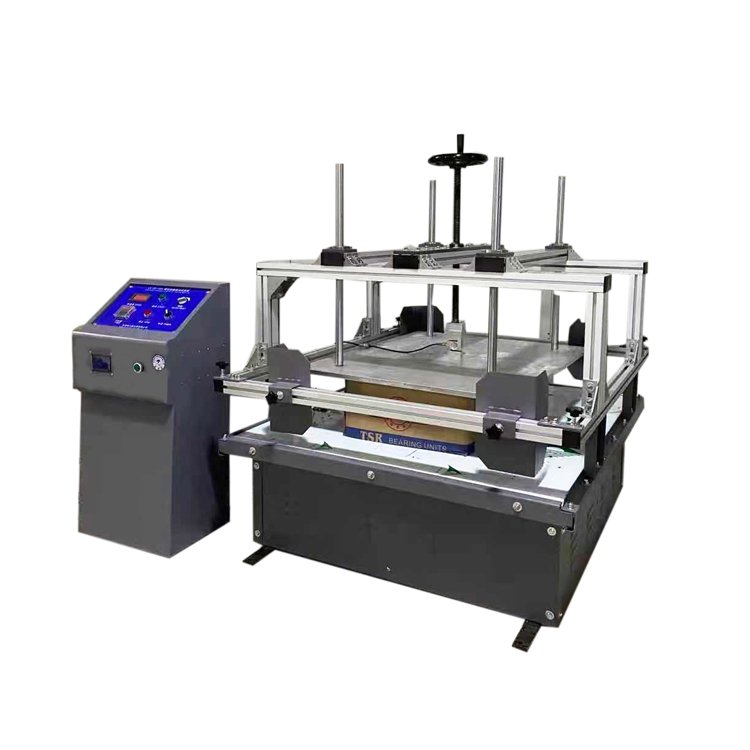

3. Adjustable‑Aluminium‑Alloy Rail‑Type Sample‑Retaining Fixtures Modular aluminium‑profile barrier rails can be repositioned freely to secure shipping cartons and packed products of varying outer dimensions. Quick‑release locking knobs allow fast specimen setup without special hand‑tools, boosting throughput for batch‑testing workflows. Multiple fence‑height selections (33 cm / 38 cm / 42 cm) are available as options.
4. Heavy‑Duty Channel‑Steel Base with Vibration‑Isolation Feet Robust channel‑steel welded main‑frame is fitted with integrated anti‑vibration rubber dampers. Installation does not require anchor bolts to fix the unit to the floor. The whole machine runs smoothly even under maximum rated‑load, reducing ground‑transmitted vibration interference to surrounding lab equipment.
5. Independent Digital‑Control Console with Clear Readouts Separate mobile control cabinet displays real‑time vibration‑frequency values. Operators configure running‑duration and monitor operating status from outside the test‑zone for enhanced lab safety.

Complete Technical Parameter Table

Compliance Standards: GB/T 4857.7‑92, ISO 2247

Standard Complete Test Operating Workflow

1. Pre‑Test Preparation Place vibration table on level rigid lab floor. Verify anti‑vibration feet sit flat. Connect power supply and power‑on the separate control console. Inspect synchronous belt tension and eccentric‑bearing condition. Confirm safety‑fence / barrier‑rails are fitted as required.
2. Specimen Placement & Securing Set packaged test‑sample centrally on the platform surface. Reposition adjustable aluminium barrier‑rails to hold the package firmly, preventing specimen shifting or bouncing‑out during vibration cycles.
3. Configure Test Parameters Set target vibration‑frequency and total test runtime on digital‑control panel according to product‑test‑spec or international‑standard requirements.
4. Execute Vibration‑Simulation Test Initiate test‑run. The platform generates elliptical‑trajectory rotary vibration for the pre‑set duration. System will automatically stop once programmed time expires. Operators should keep away from moving table area during operation.
5. Post‑Test Specimen Inspection & Machine Reset After equipment halts, examine outer‑packaging, sealing joints and inner‑contained goods for loosening, cracking, deformation or functional failure. Record all observed defects for test‑report documentation. Remove test‑piece, clear tabletop debris and reset all parameters for subsequent test groups.

Wide Industrial Application Scenarios

Consumer‑Goods & Toy Manufacturing Plants

Verify packaging integrity for toys, gifts and fragile commodities against simulated road‑transit vibration; optimise cushion‑packaging schemes.

Electronics & Home‑Appliance Factories

Assess anti‑vibration performance for finished‑product shipping cartons; screen risks of internal‑component dislocation caused by logistical jolting.

Ceramics & Fragile‑Article Producers

Carry‑out transit‑simulation reliability tests for ceramic‑ware and brittle‑goods packaging solutions.

Packaging‑Material R&D Departments

Conduct comparative evaluation for different carton‑structures and buffer‑material formulations, supporting packaging‑design optimisation work.

Third‑Party Accredited‑Testing‑Organizations

Perform GB/T 4857.7‑92 and ISO 2247‑compliant rotary‑vibration simulation tests and issue formal inspection‑documents for product‑certification audits.

Standard Factory‑Full‑Delivery Kit

1. KR‑405 rotary‑transport‑simulation vibration‑test‑table main‑unit (select‑I /‑II /‑III model)
2. Independent mobile digital‑control console
3. Standard adjustable aluminium‑alloy barrier‑rail fixture assemblies
4. Anti‑vibration rubber damping foot‑pads
5. Power‑supply connecting‑cable
6. Multilingual printed‑operation‑manual complying with GB/T 4857.7‑92, ISO 2247
7. Factory‑issued performance‑inspection‑certificate

Optional add‑ons: different‑height safety‑fence frames, custom‑size test‑table upon special‑project demand.

Global Distributor & After‑Sales‑Support

We provide remote‑one‑on‑one operational guidance covering frequency‑setting, specimen‑fixture adjustment and routine drive‑system maintenance. Spare‑parts stock includes synchronous belts, eccentric‑bearing assemblies and control‑system components. Bulk‑order customers can request custom‑voltage variants for overseas‑market deployment. Regional‑exclusive‑agent privileges contain priority‑production‑scheduling, OEM private‑branding‑services and complete‑set high‑definition product‑marketing‑image‑resources.

Product‑Banner‑Marketing‑Slogan

KR‑405 Rotary‑Transport‑Simulation Vibration Test Table | GB‑ISO‑Compliant Carousel‑Type Shaker For Shipping‑Package Transit‑Reliability‑Verification

Core‑Feature‑Labels‑For‑Product‑Images

Carousel‑Style Elliptical‑Rotary‑Vibration | 2‑5 Hz Stepless‑Frequency‑Adjustment | 25.4 mm Fixed Amplitude 1.25 g Acceleration | Low‑Noise Synchronous‑Belt‑Drive | Adjustable Aluminium‑Rail Sample‑Fixtures | Heavy‑Channel‑Steel Anti‑Vibration Base | No‑Anchor‑Bolt Installation | GB/T4857.7‑92‑ISO2247‑Compliant

Safety‑Operation‑Reminder

Do not step onto or place hands on the moving test‑platform while machine is running. Ensure test‑samples are fully restrained by barrier‑rails. Periodically inspect synchronous‑belt tension and eccentric‑bearing wear‑condition.
