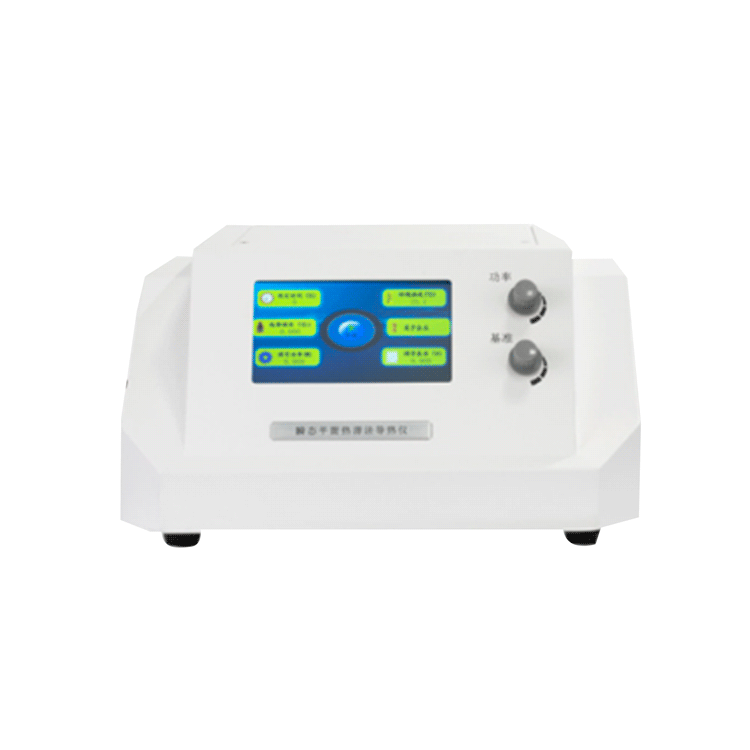

KR-736 TPS Transient Plane Source Thermal Property Analyzer
TPS Thermal Conductivity and Diffusivity Tester Plastic Thermal Conductivity Testing Machine
Product Description:
Thermal Conductivity Tester based on Transient Plane Heat Source Method Technology (TPS). This product is independently developed by Right Instrument, with stable testing performance and strong data processing and analyzing ability, it can be used for the measurement of thermal conductivity properties of different types of materials.
Product Details：
Product Introduction
Core Product Strengths
- Dual-Size Spiral Sensor Matching Diverse Specimens
Supports 7.5mm small probe for thin low-conductivity sheets and 15mm large probe for bulk metal & ceramic blocks. The bifilar spiral sensor integrates heating and temperature sensing functions, eliminating extra thermal couple installation steps and minimizing contact thermal resistance interference to test readings.
2.Rapid Transient Detection Without Long Heat Soaking
Single test cycle only takes 5–160 adjustable seconds, far more efficient than guarded hot plate steady-state instruments that require hours of constant temperature balance. Specimen temperature rise is controlled below 15℃ to avoid thermal deformation or internal structural changes of sensitive foam & plastic samples.3.High Precision & Stable Repeatability
Overall measurement accuracy reaches ±3%, with repeated test error controlled within 3%. Imported high-resolution signal acquisition chips capture micro temperature fluctuation data, paired with self-developed mathematical fitting algorithms to automatically calibrate raw signals and eliminate environmental temperature drift influence.4.Ultra-Wide Material Adaptability & Loose Sample Requirements
No strict forming or ultra-flat polishing needed; samples only need smooth contact surfaces with length & width twice the probe diameter. Compatible with rigid metal blocks, soft rubber foams, cement boards, granular minerals, viscous pastes and transparent liquids, covering nearly all common industrial thermal testing scenarios.5.Touch Intelligent Control & Automatic Data Archiving
7-inch color touch HMI integrates parameter setting, real-time curve display and one-click data export. Built-in USB data transmission module connects to laptops, automatically generating test reports with complete thermal parameter records for lab file management and third-party audit submission.6.Compact Detachable Sample Clamp Stage
Vertical screw pressing fixture allows quick loading/unloading of specimens with different thicknesses. The whole stage is detachable for thorough cleaning after powder or slurry testing to prevent cross-contamination between different batches of test materials.
Complete Technical Specification Table
| Parameter Item | kR-736 Standard Index |
|---|---|
| Test Principle | TPS Transient Plane Source (Hot Disc) |
| Thermal Conductivity Measuring Range | 0.001 ~ 300 W/(m·K) |
| Ambient Test Temperature | Room temperature ~ 130℃ |
| Matching Standard Probes | Φ7.5mm / Φ15mm dual spiral sensors |
| Measurement Accuracy | ±3% |
| Repeat Deviation | ≤3% |
| Single Test Duration | 5 ~ 160s adjustable |
| Allowable Sample Temp Rise | ＜15℃ |
| Adjustable Heating Power | 0~1W (small probe), 0~20W (large probe) |
| Standard Sample Size | Φ7.5 probe: ≥7.5×7.5×3.75mm
Φ15 probe: ≥15×15×7.5mm |
| Main Power Supply | Single-phase AC220V, total power ＜500W |
Standard Complete Test Workflow
- Specimen Preparation & Pre-Conditioning
Cut or split samples into qualified sizes, remove surface dust and uneven burrs, then place specimens under room temperature environment for 30 minutes to reach thermal equilibrium with the lab atmosphere.
- Probe & Sample Clamping
Select the matching spiral probe according to material thickness and thermal conductivity, sandwich the sensor between two identical sample blocks and fasten the vertical pressure fixture to maintain tight contact without gaps.
- Test Parameter Configuration
Power on the touch control panel, set test duration and heating power based on material type, save customized test recipes for repeated batch testing.
- Automatic Transient Measurement
Start the test program; the spiral sensor releases constant short heat pulses while continuously recording temperature variation curves. The host automatically calculates thermal conductivity, diffusivity and heat capacity once data collection finishes.
- Data Export & Result Recording
Transmit real-time curve and parameter data to connected laptop via USB, save test reports in standard document format for batch comparison and quality filing.
- Post-Test Equipment Maintenance
Unload samples, wipe residual powder or slurry off the spiral probe and fixture stage, store the sensor in dry dust-proof packaging to extend service life.
|
Instrument |
Transient Plane Heat Source (Hot Disc) |
laser method |
“Hot-line” method |
Protected Plate Method |
|
Test method |
nonstationary method |
nonstationary method |
nonstationary method |
stationary method |
|
Measuring Physical Properties |
Direct access to thermal conductivity and thermal diffusivity |
The thermal diffusivity and specific heat are obtained directly, and the thermal conductivity is calculated from the input sample density value. |
Direct access to thermal conductivity |
Direct access to thermal conductivity |
|
Scope of application |
Solid, Liquid, Powder, Paste, Colloid, Granule |
Solid |
Solid, Liquid |
Solid |
|
Sample Preparation |
No special requirements, easy sample making |
complicated sample making |
Simple sampling with specific requirements |
Larger sample sizes |
|
Measurement accuracy |
±3%,Preferably reach to ±0.5% |
Preferably reach to±10% |
Preferably reach to±5% |
Preferably reach to±3% |
|
Physical model |
Flat heat source contact measurement, as long as the finite surface contact is good |
Heat source non-contact |
Wire heat source, must have good wire model contact |
Heat source contact, good surface contact required |
|
Thermal conductivity range[w/(m*k)] |
0.005-300 |
10-500 |
0.005-10 |
0.005-5 |
|
Test time |
5-160S |
Several minutes |
dozens of minutes |
few hours |
Applicable Material & Industrial Fields
Construction Thermal Insulation Materials
Polymer & Rubber Products
Metal, Alloy & Ceramic Raw Materials
New Energy & Electronic Thermal Materials
R&D & Third-Party Testing Institutes
Standard Factory Delivery Kit
- KR-736 TPS thermal property analyzer main touch host
- Φ7.5mm & Φ15mm dual bifilar spiral test probes
- Adjustable vertical sample clamping fixture assembly
- USB data transmission cable & supporting PC analysis software
- Multi-language operation manual aligned with ISO & GB standards
- Factory inspection qualification certificate & electrical wiring diagram
Global After-Sales & Distributor Support
English Overlay Text For All Product Pictures
Main Banner: KR-736 TPS Hot Disc Thermal Conductivity & Diffusivity Analyzer
Control Panel Tags: TEST TIME / HEAT POWER / DATA EXPORT / START / STOP
Feature Overlay Tags: Dual Spiral Probes / 5s Fast Test / Non-Destructive Testing / ISO Compliant / Touch Intelligent Control
Safety Operation Tip: Keep Probe Surface Clean To Guarantee Test Precision
