Core Unique Advantages

1. Integrated Automatic Cleaning System, Greatly Boost Lab Efficiency
   Two time-saving structural designs solve the biggest pain point of traditional rheometers:

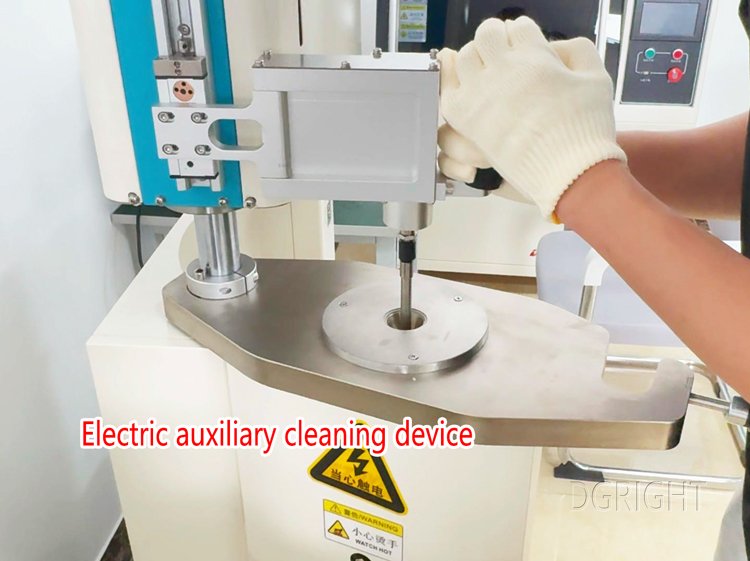

• Electric auxiliary cleaning device quickly scrapes residual molten polymer inside barrel and capillary after cooling, no repeated manual scrubbing with metal tools;
• Swing-out rotatable furnace body fully exposes the heating cavity, easy access to dead-angle residue without disassembly of the whole machine.
  This design eliminates cross-contamination between different formulas and reduces post-test cleaning time by over 60%.

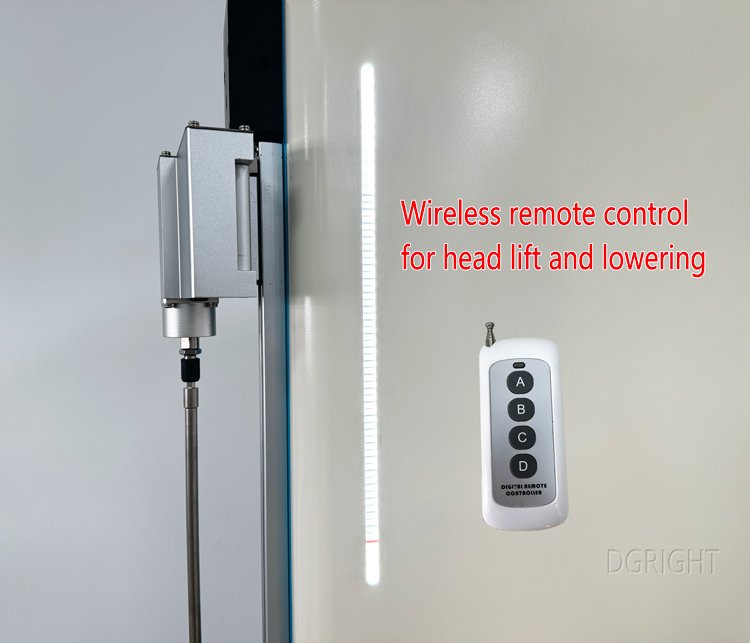

2. Wireless Remote Lifting & Intuitive Displacement Visualization
   Equipped handheld wireless remote controller to remotely lift/lower the upper driving head, inspecting sample filling status safely without touching high-temperature components. A vertical real-time displacement scale on the machine body clearly displays piston travel distance, helping operators judge residual sample volume inside the barrel at a glance during testing cycles.
3. Stable Upper Moving Servo Loading Structure
   Adopts integral upper sliding drive frame instead of fixed lower cylinder design, dual dynamic balance pressurization ensures ultra-stable extrusion pressure without frame deflection under 5KN/10KN maximum load. Double closed-loop control of hardware and software realizes stepless adjustment of piston speed and extrusion force, supporting manual/automatic dual operation modes for flexible test scheme switching.
4. Ultra-High Frequency Data Acquisition & Dual-Axis Curve Switching
   The built-in data collector reaches over 100 data sampling points per second, accurately capturing tiny inflection points of melt fracture and viscosity mutation. Supporting one-click switching between linear/logarithmic coordinate systems on PC software, users can observe flow curve characteristics from two analysis dimensions and freely set axis threshold parameters after testing completes.
5. Expandable Modular Architecture, Flexible Customization
   The standard single-barrel host can be upgraded to twin-indenter dual-channel testing structure without replacing the main frame. Custom low-temperature refrigeration modules, ultra-high temperature heating units and special-diameter plungers are available to match low-viscosity elastomers and high-hardness filled engineering plastic
6. Wear-Resistant Tungsten Carbide Capillary Die Kit
   Comes complete with four standard L/D ratio dies (1×5 / 1×10 / 1×20 / 1×40 mm) forged from tungsten alloy. The ultra-smooth inner bore resists abrasion from glass fiber, mineral filler and flame retardant additives, maintaining long-term dimensional stability for consistent test repeatability.
