Product Overview

Core Product Advantages

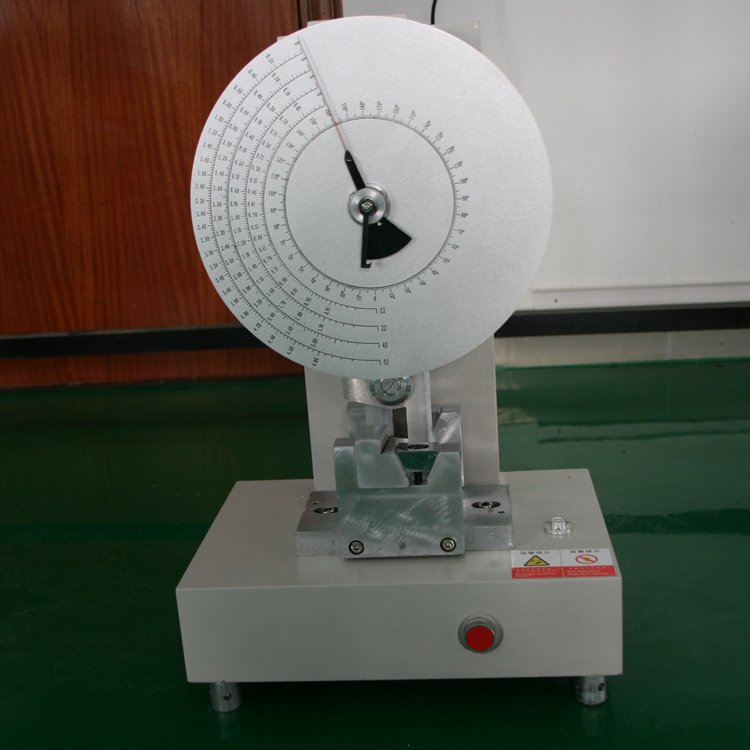

1. Simple Mechanical Pointer Dial, Stable & Reliable Reading
   Large-caliber high-precision dial panel with minimum division of 1/100, clear scale marking without screen failure, black pointer intuitively reflects energy loss after specimen fracture. Independent mechanical transmission structure avoids electronic component aging failure, suitable for long-term uninterrupted workshop batch inspection work, low later maintenance cost.
2. Electric Automatic Pendulum Release Mechanism
   Adopts electromagnetic locking electric release structure, one-button trigger pendulum free fall, completely eliminate manual pendulum release error caused by human operation, ensure consistent impact speed and swing angle of each test, effectively improve data repeatability of parallel samples. The maximum pendulum lifting angle is fixed at 160°, fully consistent with standard test conditions.

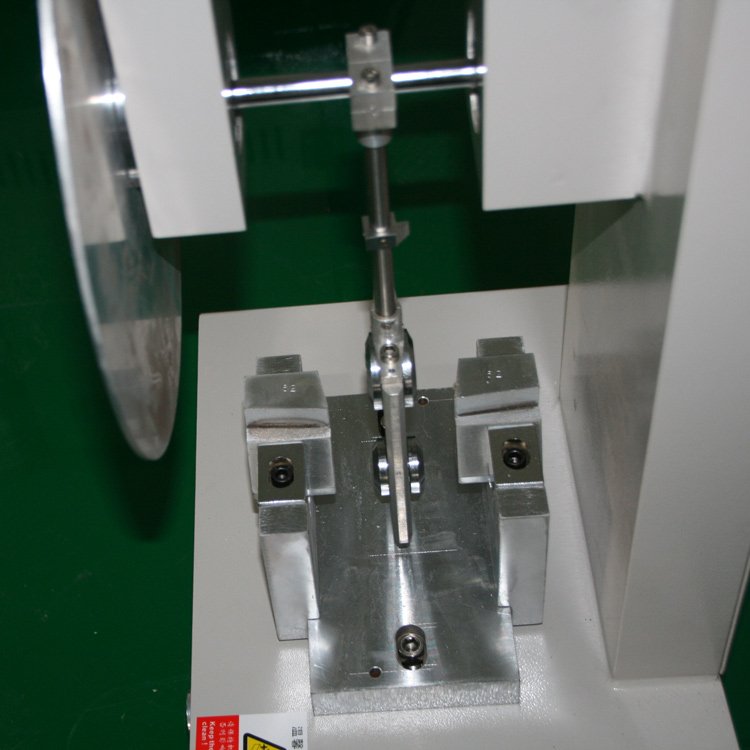

3. High-Rigidity Integrated Cast Frame
   Whole machine adopts thick cast steel base and vertical support frame, after stress relief treatment, no frame vibration or deformation during high-energy 50J impact test. Standard alloy steel fixture seat with adjustable span structure, four common support distances of 40/60/70/95mm can be switched freely to match different sizes of standard test strips.
4. Standard Impact Geometric Parameters
   Impact knife edge R=2±0.5mm, fixture support surface radius R=1±0.1mm, impact blade standard 30° angle, all dimensional tolerances strictly follow international test standards, avoid test deviation caused by non-standard striking geometry. The pendulum center to sample fixed distance is 380mm, impact speed stable at 3.8m/s.
5. Multi-Energy Pendulum Matching, Wide Test Range
   Four optional pendulum specifications with different torque values (3.866Nm / 7.733Nm / 12.889Nm / 25.777Nm), covering low-toughness brittle materials to high-strength fiber reinforced composite testing demands. Single machine can realize multi-energy upgrading by replacing pendulum without replacing the whole frame, flexible matching different production line inspection needs.

6. Compact Desktop Layout, Easy Placement

   Integrated small bench type structure, small floor area, equipped with stable supporting foot pads, can be placed on ordinary laboratory countertops without special foundation. No complicated wiring requirements, standard single-phase 220V power supply can work normally, convenient for teaching labs with limited space.

   Complete Technical Parameter Table

   Parameter Item	KR-703B-50 Standard Index
   Optional Pendulum Impact Energy	7.5J / 15J / 25J / 50J
   Corresponding Pendulum Torque	3.866 / 7.733 / 12.889 / 25.777 N·m
   Dial Minimum Scale Division	1/100
   Standard Impact Speed	3.8 m/s
   Pendulum Lifting Fixed Angle	160°
   Pendulum Center To Sample Distance	380 mm
   Fixture Jaw Radius	R=1±0.1 mm
   Impact Blade Radius	R=2±0.5 mm
   Impact Blade Angle	30±1°
   Optional Support Span	40 / 60 / 70 / 95 mm
   Air Resistance Energy Loss Error	≤0.5%
   Input Power Supply	AC220V 50Hz Single Phase

   Standard Test Bar Matching Size Table (Unit: mm)

   | Specimen Model | Length | Width | Thickness | Matching Support Span |

   | —- | —- | —- | —- |

   | Type I | 80 | 10 | 4 | 60 |

   | Type II | 50 | 6 | 4 | 40 |

   | Type III | 120 | 15 | 10 | 70 |

   | Type IV | 125 | 13 | 13 | 95

Standard Complete Test Operation Steps

1. Equipment Level Inspection

   Place the instrument on flat countertop, adjust bottom foot pads to keep the whole machine horizontal, check whether the pendulum swings without friction and dial pointer resets normally.
2. Pendulum & Fixture Matching
   Select pendulum energy according to material toughness, install the corresponding pendulum rod, adjust fixture span to match the size of the test bar, lock the fixture bolts tightly.
3. Specimen Clamping
   Place the standard notched test bar horizontally on the support base, align the notch position with the impact center line to ensure the pendulum strikes the notch accurately.
4. Electric Pendulum Lifting & Release
   Press the lifting button to lock the pendulum at 160° fixed angle, confirm no foreign objects in the swing area, press the release button to make the pendulum fall freely and impact the specimen.
5. Dial Data Recording
   After the pendulum swings and stops, directly read the energy loss value indicated by the pointer on the dial, record data and calculate material impact toughness manually.
6. Post-Test Cleaning
   Clean broken debris on the fixture, reset the pointer to zero position, cut off the power supply if no continuous testing is needed.

Main Application Fields

Hard Plastic Manufacturing Enterprises

Fiber Reinforced Composite Factories

Inorganic Brittle Material Labs

Electrical Insulation Material Workshops

University & Vocational School Teaching Labs

Standard Factory Delivery Package

1. KR-703B-50 main pointer Charpy impact tester host
2. Optional matching multi-energy pendulum set (7.5/15/25/50J as required)
3. Adjustable standard fixture base and four span limit blocks
4. Alloy steel standard impact blade spare parts
5. Electric pendulum release control assembly
6. Horizontal adjustment foot pads and specimen cleaning tools
7. Multilingual operation manual complying with ISO & GB standards
8. Factory dimensional calibration inspection certificate
