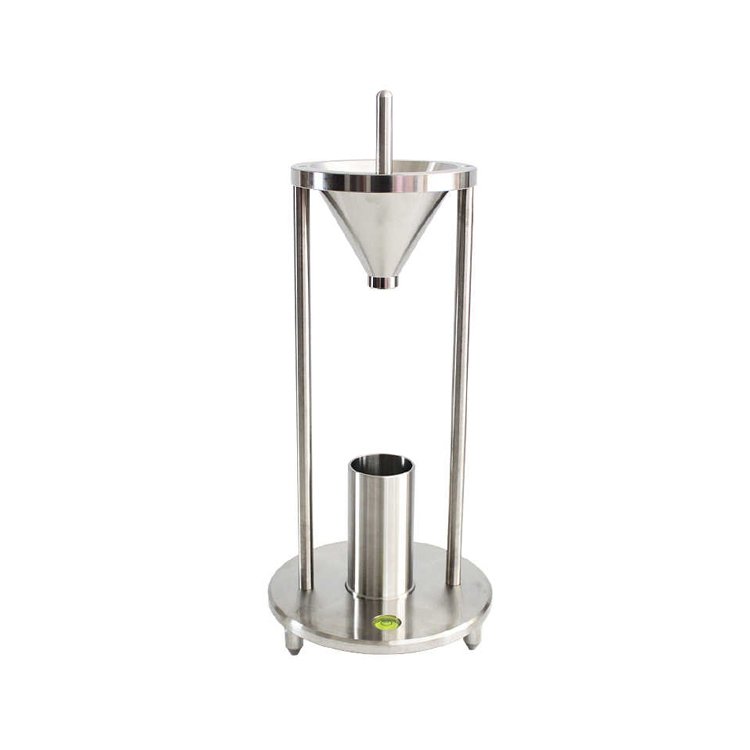

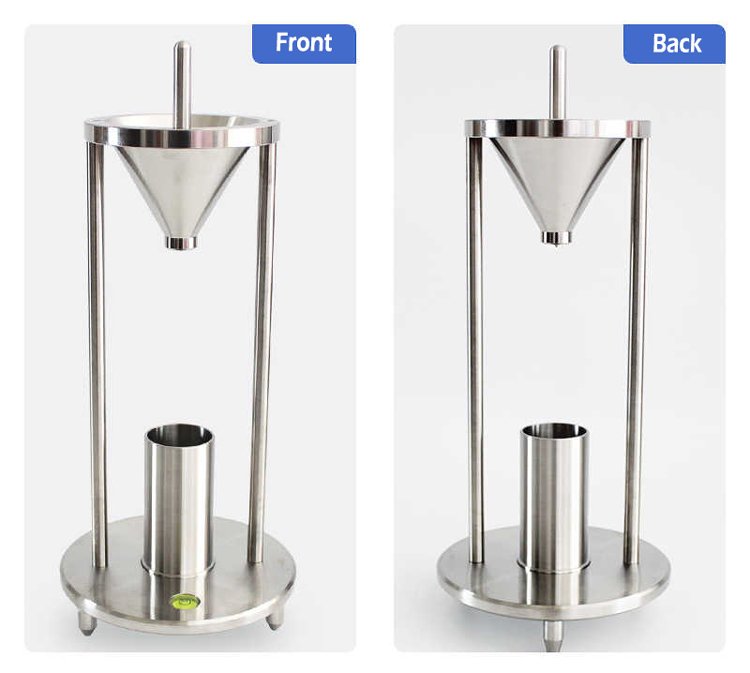

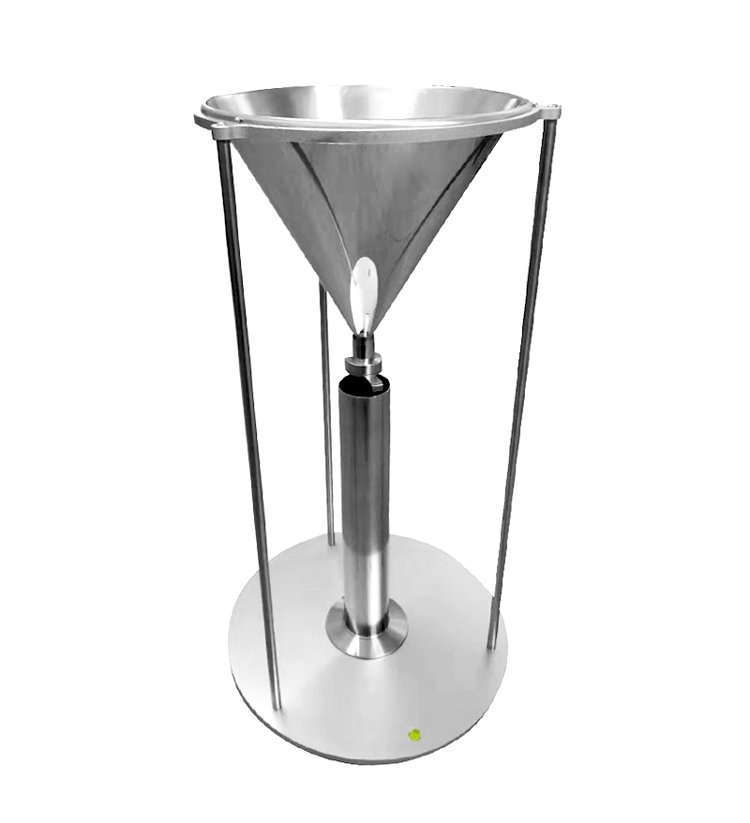

Product Overview

Core Product Advantages

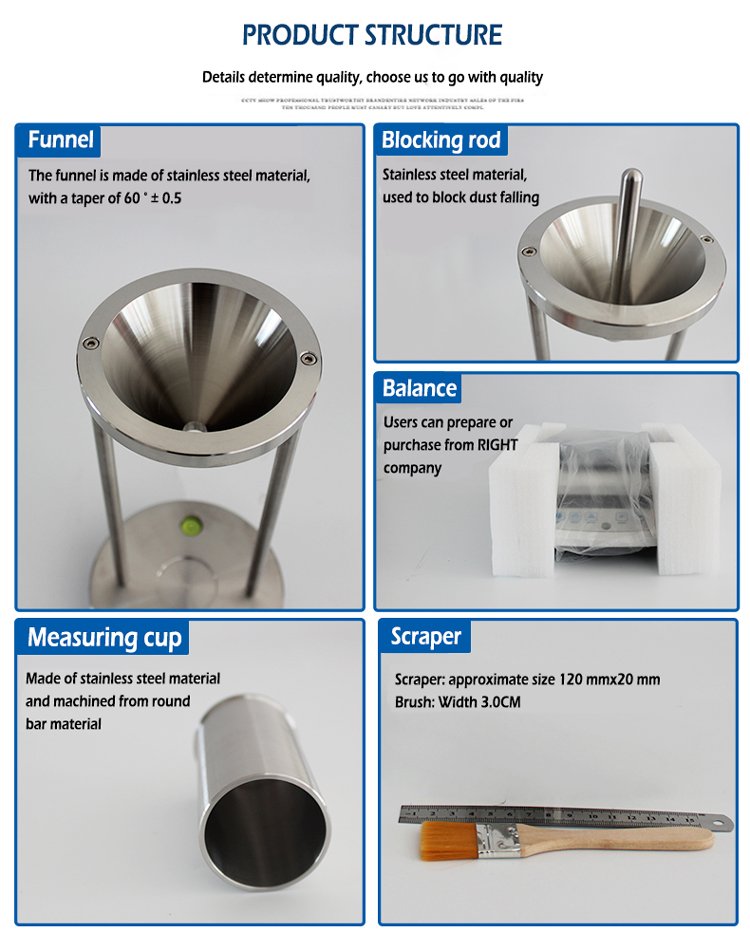

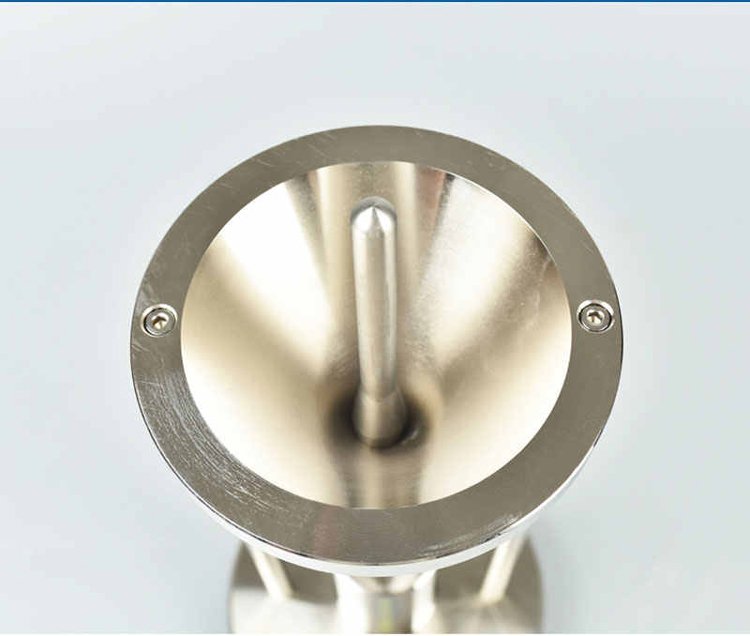

1. Full SUS304 Corrosion-Resistant Contact Assembly
   All parts contacting fertilizer particles (funnel, measuring cylinder, material scraper, stirring rod) are precision polished stainless steel. The smooth surface avoids granule adhesion and chemical corrosion from acidic/alkaline fertilizer components, easy to wipe clean after each batch and extends long-term service life.
   2.Standardized Fixed Geometry Matching Global Test Norms

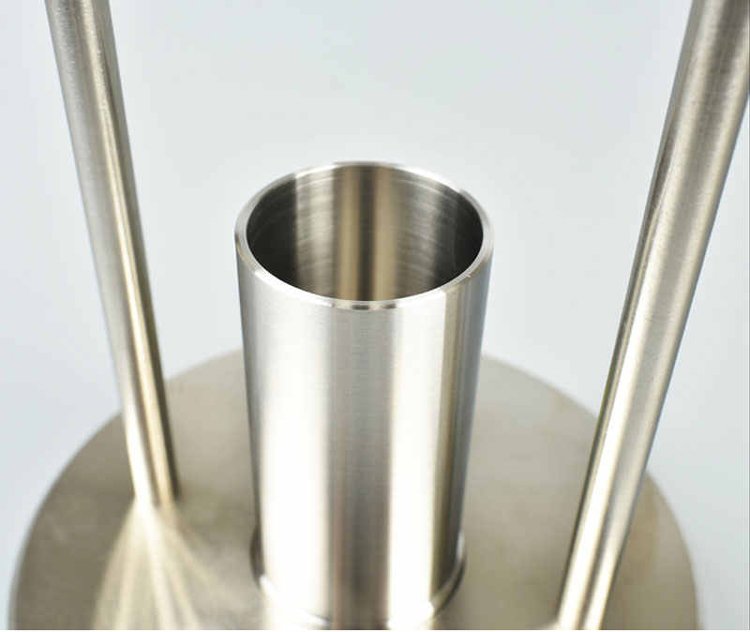

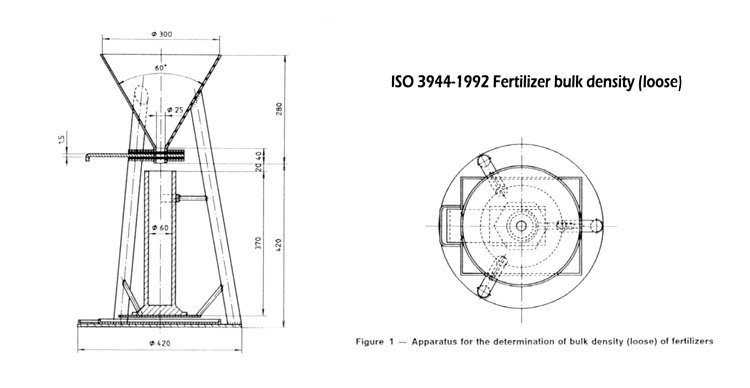

   60° funnel angle with fixed 25mm discharge outlet diameter, matched with 60mm inner diameter × 370mm height volumetric cylinder fully consistent with ISO and national standard dimensional requirements. Fixed vertical spacing between funnel and cylinder eliminates manual height adjustment errors to ensure repeatable test results between parallel samples.

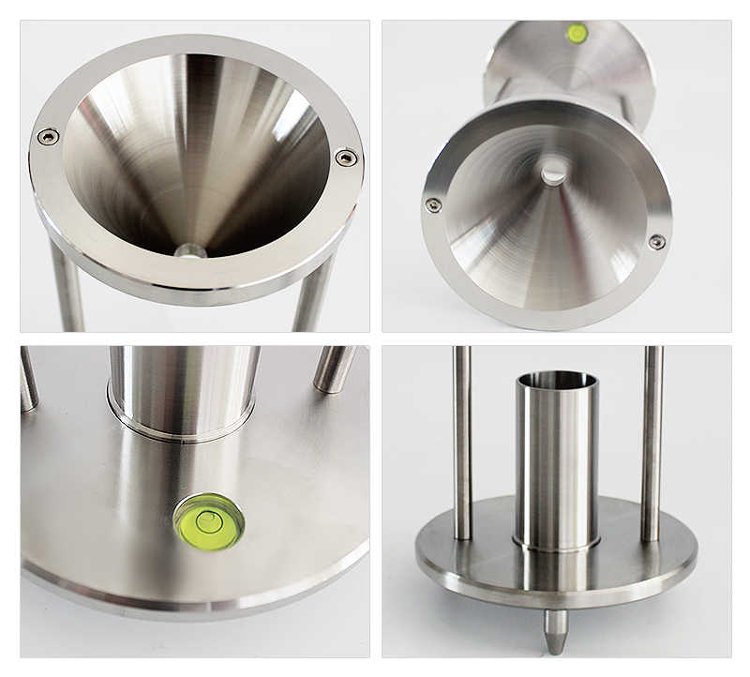

   3.Integrated Horizontal Calibration Base

   The unit’s circular base is equipped with built-in bubble level and four fine-tune foot screws. Users quickly adjust the whole device to absolute horizontal state before testing, preventing uneven material accumulation caused by tilted equipment and reducing data deviation.
   4.Complete Standard Supporting Auxiliary Tools

   Comes with matched 3cm wide leveling scraper and 200mm long stirring rod. The stirring rod breaks agglomerated fertilizer particles before blanking; the scraper smoothly trims excess granules on the cylinder mouth without squeezing the internal material pile to maintain natural loose stacking state.
   5.Fully Manual Portable Bench Layout

   No power supply or compressed air required, lightweight split structure easy to move between lab benches. Simple filling and leveling operation lowers technical threshold for inspectors, suitable for daily batch sampling and regular raw material incoming inspection.

Standard Complete Test Operation Steps

1. Sample Preprocessing
   Place fertilizer specimens in low-humidity constant temperature environment to fully remove absorbed moisture; break large particle agglomerates with the matching stirring rod, screen out oversized particles exceeding 5mm diameter as prohibited per standard rules.
2. Equipment Horizontal Calibration
   Adjust the four base leveling feet until the bubble in the central spirit level sits in the middle, confirm the measuring cylinder stands perfectly vertical directly under the funnel outlet.
3. Gravity Free Blanking Test
   Close the funnel bottom valve, fill with fully homogenized fertilizer granules, slowly open the valve to let material naturally flow down and fully fill the volumetric cylinder without shaking or tapping the device.
4. Leveling & Weighing
   Use the dedicated scraper to horizontally scrape off surplus granules on the cylinder top surface, keep the internal material in natural loose stacking condition, then weigh the full cylinder with precision analytical balance.
5. Density Calculation & Data Recording
   Calculate loose bulk density = total fertilizer mass / calibrated cylinder volume; conduct two parallel repeated tests and take the average value as official test result for filing.
6. Post-Test Cleaning
   Dump out all residual fertilizer granules, wipe the inner wall of funnel and cylinder with dry cloth to avoid cross-contamination of different fertilizer formulations in subsequent tests.

Applicable Industry Scenarios

Fertilizer Manufacturing Factories

Agricultural Testing & Inspection Institutions

Fertilizer R&D & Formulation Labs

Related Granular Material Testing

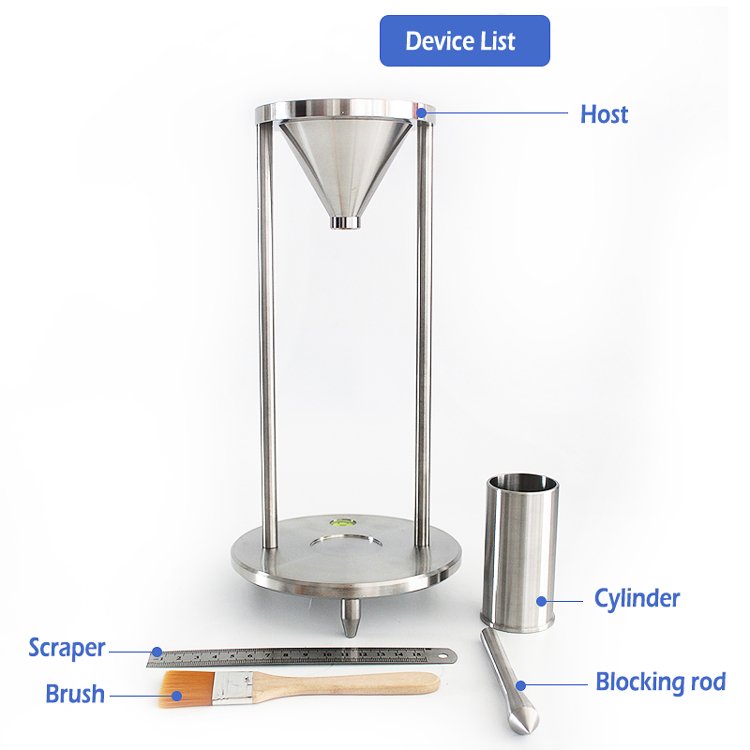

Standard Factory Delivery Kit

1. KR-730C loose bulk density tester stainless steel main stand
2. Standard 60° conical feeding funnel with switch valve
3. Calibrated 1L stainless steel volumetric measuring cylinder
4. 30mm wide material leveling scraper
5. 200mm stainless stirring rod for sample dispersion
6. Multi-language operation manual aligned with ISO & GB fertilizer standards
7. Factory inspection qualification certificate
